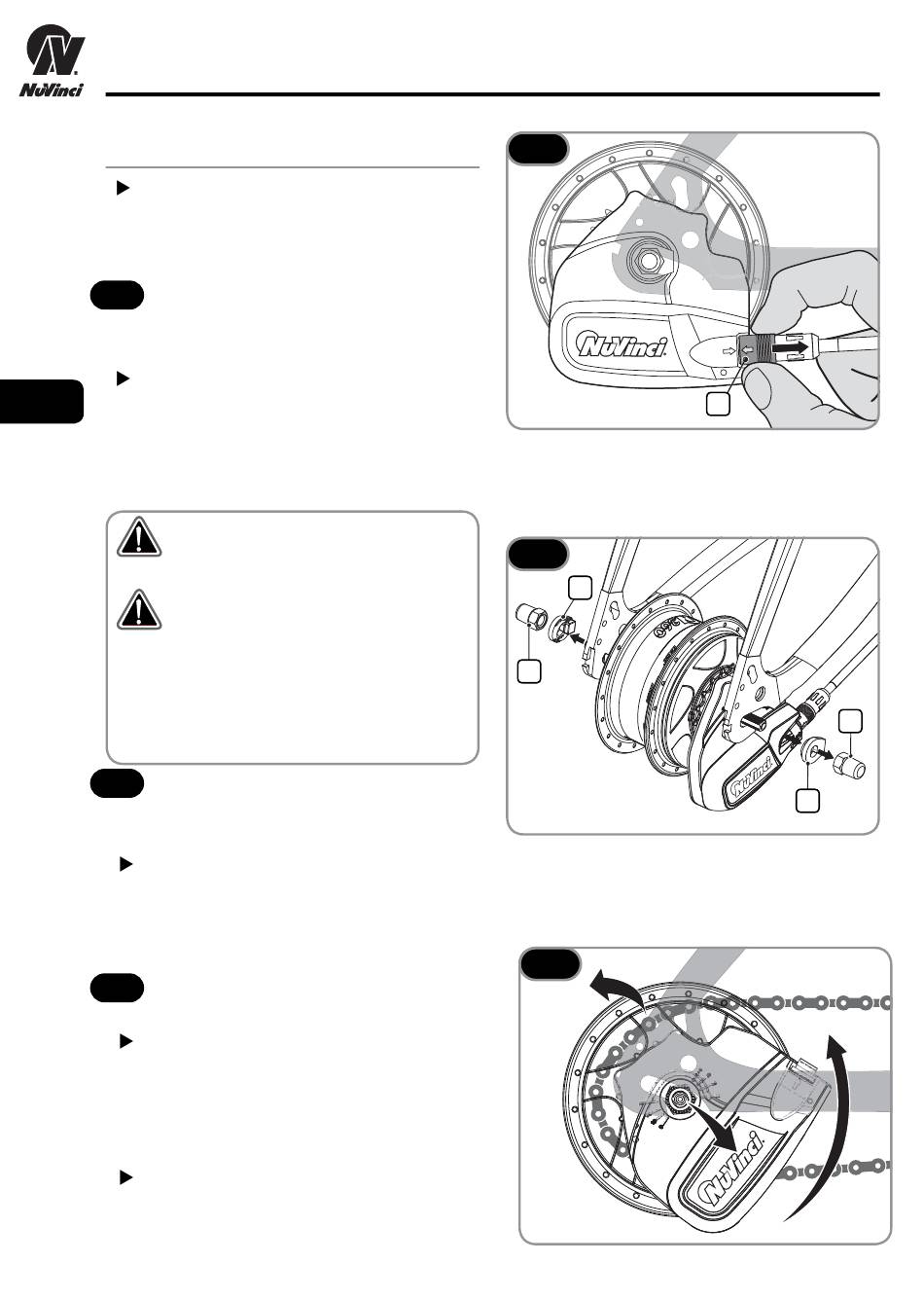

Disconnecting the
Rear Wheel
Switch eBike power "off" and
disconnect the eBike battery
(if possible).
Remove the Harmony or Har-
1
mony H|Sync Main Connector at
the rear wheel.
Grab the connector at the
EN
ribbed location (1) and pull
lightly away from the
Harmony or Harmony H|Sync
Hub Interface.
Do not pull on the cable, only
at the ribbed connector half
as shown.
The connector supplies electri-
cal power to the Harmony or
Harmony H|Sync unit. Protect
the connector from water or
other conductive elements when
disconnected, as shock or dam-
age to the system could result.
Loosen and remove the axle
2
nuts (2) and the no-turn washers (3).
For rim and roller brake
applications, disconnect the
rear brake according to the
manufacturer's instructions.
Remove the rear wheel.
3
Some bicycles may require rotat-
ing the CVP Axle and Harmony
or Harmony H|Sync Hub Interface
to allow removal of the bicycle
chain.
In some cases, it is easiest to
remove the chain from the front
chain ring to ease rear wheel
6
removal.
BASIC MAINTENANCE AND CARE
