BASIC MAINTENANCE AND CARE

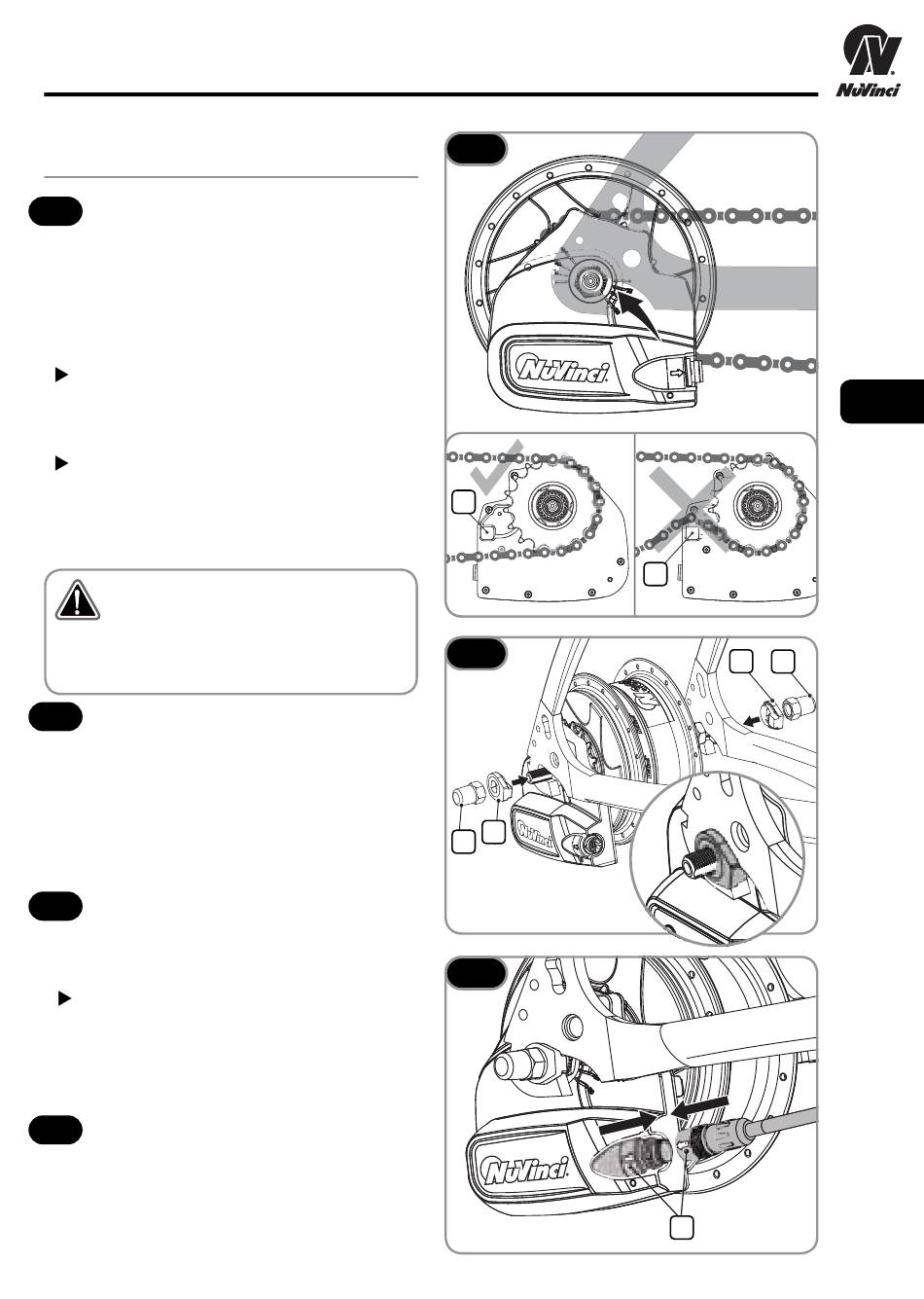

Fitting the Rear Wheel

4
Place the rear wheel into the
frame, making sure not to obstruct
or pinch the Harmony or Harmony
H|Sync wire harness and Main Con-
nector.
Orient the chain around the Har-
mony or Harmony H|Sync Hub
Interface and onto the sprocket.
In some cases, it is easiest to
remove the chain from the front
chain ring to ease rear wheel
installation.
Note location of wheel speed
sensor (4) at rear wheel—the
chain should not catch on this
sensor when fitting the wheel.
5
Slide one no-turn washer (3)
onto each axle end. The serrations
of the no-turn washer must bear
against the dropout of the frame.
The rectangular boss must engage
the dropout of the frame.
6
Mount the axle nuts (2).
Tightening torque 30 – 40 Nm
(266-350 in-lbs).
For rim and roller brake
applications, connect the
rear brake according to the
manufacturer's instructions.
Install the Harmony or Har-
7
mony H|Sync Main Connector
by lining up the arrows (5) and
carefully pressing together.
1 4
4
5-6
3
2
7
4
3 2
5
