Vaporesso Tarot Nano Kurzanleitung

Thank you for choosing Vaporesso Products!

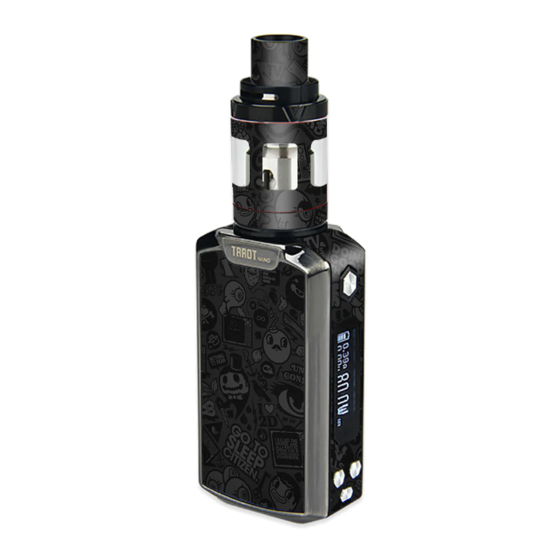

Tarot Nano Kit maintains the beautiful design of Tarot family, only smaller and more
exquisite, while capable of 80W output with 2500mah built in battery. Equipped with
the OMNI board, you could easily switch between Smart VW/CCW/VT/CCT/TCR as
well as Bypass to different vaping experience at your preference. The control face
features the same user friendly design with fire button, display screen as well as
adjustment buttons, all metal buttons for a better grip. Its mini design makes it easy
to carry around and it comes with a micro-USB charging cable. It adopts the Eco
Universal Coil so that you only need to replace the EUC coil without changing the
metal sleeve, that is truly ECO friendly and makes vaping more affordable.
Tarot Nano Kit, the really small big kit!
Please read this manual carefully to ensure proper use. For additional information or
questions regarding to this product or its use, please visit www.vaporesso.com
Specification
Tarot Nano Mod
Diameter:
69x38x22.5mm
Output mode: VW/VT(Ni200, SS, Ti, TCR) BYPASS,CCW, CCT, Smart mode
Temperature Range:100℃-315℃/280F-600F
Output Wattage: 5 - 80w
Suitable atomizer: 0.15Ω-5Ω
USB Upgradable and customizable firmware
Thread: 510 thread
Display: OLED
Standby Current: <35A
Voltage Range: 0 - 8.5 v
Battery Cell: 2500mah Built In Battery
How to Use
1.Switch On/Off:Press the fire button 5 times in quick succession within 2 seconds to turn the device on. In the same way, the device will be powered off after 5 presses.
2.Vaping:Hold the fire button and inhale through the mouthpiece. Release the fire button and exhale.
3.Screen Display: After switch on, OLED displays voltage, resistance value, battery level, temperature, output wattage; the display will shut off if unused for 20s, the screen will
be relit by pressing the fire button.
4.Automatic atomizer recognition:The mod will read the coil's resistance as soon as the connection is detected. It will also recognize coil type, when a kanthal coil is used, the
mod will shift from TC to wattage mode automatically.
5.Adjustment buttons lock/unlock:Keep pressing mode button and "+"button simultaneously for two seconds when the device is powered on, then the up and down buttons
will be locked and the screen will display "SYSTEM LOCKED". In the same way, pressing the up and mode buttons can be unlocked and the screen will display "SYSTEM
UNLOCKED".
6.Switch display mode:Keep pressing up button and down button simultaneously for two seconds ,the screen display will rotate 180degrees.
7.Switch vaping modes:Long press the mode button for three seconds to switch among VW/VT(Ni200, SS, Ti)/ Smart / TCR / BYPASS / CCW / CCT modes.
8.Charging:Plug in the Micro USB cable to charge the battery, OLED display current battery level (0%,20%, 50%, 80%, and 100%), The display will remain lit while charging.
9.Firmware update and customizing: Can be updated and customized through a simple software that can be downloaded directly from our website. The software will be made
to run on Windows systems and will be available in English. It will also include a "help" sections for urgent questions. The directions on how to use our software will be found on
our website and Facebook page.
10. Adjustment of Air Flow:The top airflow system can be adjusted with slight twisting motions of the top lid which will not loosen its attachment to the pyrex glass.
11. Filling E-liquid:This easy top-fill tank will only ask of you to screw out the lid and fill in the
chamber when the base is securely shut.Be sure to safely position the glass part when this
process is in place to avoid spillage.
Tarot Nano
Quick Guide
Specification
Veco Tank
Dimension: 22 x 48mm
Weight: 37 g
Capacity: 2 ml
Pyrex glass tube
Main features
ECO Universal Coil
● OMNI Board with More
Output Modes: Smart VW,
CCW, VT, CCT, TCR, By Pass
● EUC Coil Inside, Replace the
EUC and keep the sleeve
● Easy Coil Replacement
Tarot Nano Mod
Package Include
1 x Tarot Nano Mod
1 x USB Charger cable
Tarot Nano Starter Kit
Package Include
1 x Tarot Nano Mod
1 x USB Charger cable
1 x Veco Tank with ECO
Universal Coil preinstalled
1 x Extra ECO Universal Coil
1 x Extra Pyrex glass tube
12. Changing Atomizer: Unscrew the base to simply remove and insert a new
atomizer whenever needed. Pull the EUC out from the base and insert a new one.
Screw the Base on. Wait after replacing to make sure the coil is well primed.
Item 10 to 12 only apply to Tarot Nano Starter Kit
How to Set the Mode
1) Smart VW mode:As an advanced Variable Wattage mode, Smart VW will guarantee your mod' s ability to skillfully select the adequate average wattage for your atomizer,
according to its resistance reading, automatically. As for any regular wattage mode, however, you will be given able to change the wattage according to your taste all across the
scale.
Drip tip
2) In CCW mode:While on VW mode, press the mode button three times consecutively to select CCW. Select and hold down the mode button to confirm and to implement any
modifications to the wattage line using the plus and minus buttons (Ramp up time and consequent performance); move on to the next bar with a quick press of the mode button.
Air Flow Ring When all modifications are final hold pressed the mode button to save and exit.
3) In TC-Ni/TC-Ti/TC-SS/TCR(M1, M2) Mode:When set in TC-Ni/TC-Ti/TC-SS mode, the device can separately support Nickel 200, Titanium, and 316 Stainless Steel coils. In
TCR (Temperature Coefficient of Resistance) mode, the device can support different temperature control coils within different TCR value ranges and you can set the TCR at
different values within proper range.
The Setting of TCR Mode (M1,M2):
When set in TC-Ni/TC-Ti/TC-SS mode ,and the device is powered on, you will enter into the TCR (M1,M2) set menu, by clicking mode bottom 3times:
1. Press mode button to choose among M1, M2 ;
2. Press the up or down button to increase or decrease the TCR value according to the material of the coil you used;
Following are different TCR value ranges for different coils for your reference:
Material Nicle Titanium
Power
TCR Value Range 600-700 300-400
Button
Note: 1.The TCR value in the sheet is 10 multiplied of the actual TCR.
2.Our total range of TCR value is 1-1000.
Adjust temperature: In TC-Ni/TC-Ti/TC-SS/TCR(M1,M2,M3) mode, temperature can be adjusted from 100-315℃ or 200-600℉ by pressing up button or down button, up button
OLED
to increase and down button to decrease. Each press of the up or down button will increase or decrease the temperature setting by 5℃ or 10℉. Long press up button or down
Display button can rapidly increase or decrease temperature setting.
Lock/Unlock resistance: In TC-Ni/TC-Ti/TC-SS/TCR(M1, M2) Mode, press the "-"and mode button simultaneously for 2s will lock/unlock the resistance level, "
on the display. Attach a new atomizer will not change the locked resistance.
Automatic atomizer recognition: To achieve better temperature control effect, the mod will ask the user if the new atomizer is attached. " OLD LOAD: -, NEW LOAD: + " will
appear on the display. If a new atomizer is attached, press " + ", the mod will read new resistance; if not, press " - ", the mod will read at locked resistance.
+ 4) In CCT mode:While on any TC mode, press the mode button three times consecutively to select CCT. Select and hold down the mode button to confirm and to implement any
modifications to the temperature line using the plus and minus buttons (Ramp up time and consequent performance); move on to the next bar with a quick press of the mode
Mode
button. When all modifications are final hold pressed the mode button to save and exit.
Button
5) In Bypass mode:Direct output voltage system is applied in Bypass mode. The higher the batterylevel is, the higher the output voltage is. When set in this mode, the device
can support a coil whose resistance is within the range of 0.05-5ohm.
Caution
1. It is intended for usage by people over 18, NOT by non-smokers, children, pregnant or breastfeeding
women, people with or at risk of heart disease, or people taking medication for depression or asthma.
The electronic cigarette is not a smoking cessation device.
2. Please keep this unit out of reach of children or pets;
3. Please don't drop, throw or abuse your Mod,it may cause damage.
4. Do not place it in extremely temperatures;
5. Do not try to disassemble the battery.
This refillable electronic cigarette is intended for use with compatible liquid, which may contain nicotine. Nicotine is an addictive substance and its use is not
recommended for use by the following:
- Non smokers or persons under the legal smoking age
- Pregnant or breastfeeding women
- Persons experiencing heart disease, stomach or duodenal ulcers, liver or kidney problems, long-term throat disease or difficulty breathing due to bronchitis, emphysema or
asthma.
- Persons with an overactive thyroid gland or experiencing phaeochromocytoma (a tumour of the adrenal gland that can affect blood pressure)
- Those taking the medications Theophylline, Ropinirole or Clozapone
You may experience the following side effects if you use nicotine containing e-liquid in combination with this product. If this happens, please consult a healthcare
professional and show them this leaflet if possible:
- Feeling faint - Irritation of the mouth or throat
- Nausea - Stomach discomfort
- Dizziness
- Hiccups
- Headache - Nasal congestion
- Coughing - Vomition
- Chest palpitations/pain or an irregular heart rate
This device should not be used by persons under the age of 18 or non-smokers.
英
NiFe SS(303,304,316,317)
300-400 80-200
Designed in California
Manufacturer:Shenzhen Smoore Technology Limited
Add:Building 8,Dongcai Industrial Park,Gushu Town,
Baoan District,Shenzhen, China 518102
Management System of SMOORE factory has been assessed
and registered under the Norm cGMP, ISO13485, ISO9001
and ISO14001.TM and ©2016 Vaporesso All rights reserved
" will appear
Protection Functions
Low voltage protection
Output short circuit protection
Low resistance protection
Machine over-temperature protection
Overcurrent protection
Load protection
Timeout protection
Anti-loaded battery protection
