Vaporesso Target Mini Handbuch

Thank you for choosing Vaporesso Products!
Target Mini is the ultimate TRUE pocket mod, the best tool to
keep your habit low profile, classy, and clean. With 40watts
of maximum output and a built in battery of 1400 mAh, the
Target mini will be your favorite day to day mod. This mod
comes equipped with one of the most highly advanced tanks
on the market, the Guardian Tank: fit to measure up to all
new legal restrictions and deliver all the taste you want with
our reinvented CCELL technology coils inside. It is by far the
smallest mod in the market. Target Mini, Small and Smart !
Please read this manual carefully to ensure proper use. For
additional information or questions regarding to this product
or its use, please visit www.vaporesso.com
Main features
● Mini Design, Easy to Carry
● More output Modes: VW/VT(Ni, SS,Ti)/TCR(M1,M2)
● Advanced Circuit for Reliable and Safe Use
● With Guardian Tank with revolutionary Leak Free Design
● No Overfill Ever, top filling with coil remains inside the tank
● Double Child Locking Mechanism
● 2 in 1 Tank (DTL + MTL), Easy Switch between 2 settings
● CCELL Ceramic Coil Inside
Package Include
1 x Target Mini Mod
1 x Guardian Tank with CCELL-GD SS 0.5Ω coil preinstalled
1 x Extra CCELL-GD MTL 0.6Ω coil
1 x Mouthpiece for MTL
1 x USB charging cable
Specification
Guardian Tank
Diameter: 22 x 55 mm
Weight: 60 g
Capacity: 2.0 ml
How to Use
1.Switch On/Off: Connect the Guardian Tank onto the Box. Then press the fire button 5 times in quick succession within 2
seconds to turn the device on. In the same way, the device will be powered off after 5 presses.
2.Adjust Wattage: Press the "+" "-" to adjust the wattage at 0.1 increment long-press will adjst at an accelerated rate.
3.Swith Modes:Press the mode button for 2 seconds to swtich betwen wattage mode and different temperature control
modes.
4.TCR: To enter TCR settings, press the mode button 3 times conecutively then use the "+" and "-" buttons to set the
desired coefficient of resistance for your wire. hold the mode button 2 seconds to exit this screen.
5.Lock the System: Press the mode button and "+" button simultaneously, the system will be locked with "system lock" on
the screen.
6.Lock the Resistance :Press the mode button and "-"button simultantoulsy, the resitsance will be locked
7.To rotate the screen display: Press the "+" and "-" button simulatously, the display screeen will be roated.
8. How to vape: Hold the fire button and inhale through the mouthpiece. Release the fire button and exhale.
9.Switch between DTL/MTL settings: The tank is pre-installed with DTL setting. To switch between such modes it is
necessary to match the coil in use with the mouthpiece type. The 1.4 ohm SS CCELL coil intended use is with the thinner
mouthpiece for MTL and the 0.5 ohm coil shall be matched with the wider mouthpiece for DTL.
10.Charging: Simply charge the Target Mini by connecting it to a PC or suitable wall adapter via USB cable included.
Once plugged in, the charging indicator will display the progress.

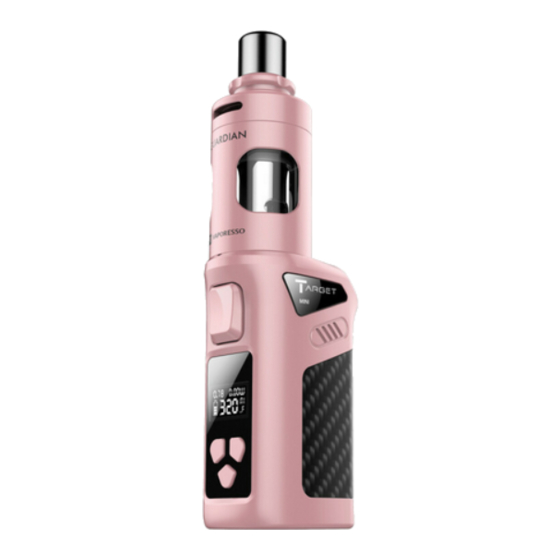

Target Mini
Quick Guide
Drip tip
Tip connector
Pyrex glass tube
CCELL atomizer
Power button
Comfortable Grip
OLED display
Mode button
Micro USB
Target Mini Mod
Diameter: 36.5 x 24.2 x 58.1 mm
Weight: 93 g
Temperature Range: 100℃-315℃/200F-600F
Output Wattage: 5-40w
Suitable atomizer: VW:0.15Ω-5Ω / VT:0.1Ω-1.0Ω
Standby Current: ﹤30uA
Voltage range: 0-9v
Battery Cell: Lithium 1400mAh Built In
Casting: Zinc Alloy and stainless steel
Thread: 510 thread
Display: 0.49" OLED
11. Changing Atomizer: Simply twist open the mouth piece base counter clockwise and then remove the top lid. Take the
atomizer out and replace with a new one. Make sure that the atomizer is secured in place with the slot fits onto the inside
opening. Twist back the top lid and screw back the mouth piece.
12.E-liquid filling: To refill the e-juice from the top, simply twist open the mouth piece counterclockwise and then remove
the top lid. Inject the e-juice directly into the chamber on the side. Once filled, twist back the top lid and screw back the
mouth piece to resume use. Make sure the CCELL Ceramic Coil is secured in place before putting the top lid back.
13.Adjustment of Air Flow: Rotating the ring on the top clockwise to decrease the airflow, counterclockwise to enlarge
the airflow.
Notes:
1.When there is no operation on the device for 20 seconds after it is on, the display will go off automaictilly. The screen will
be on by pressing any button.
2.When there is no operation on the device for 3 minutes after it is on, the device will standby automaictilly. It would be
activated by pressing any button.
Function:
Short Circuit Protection:The display will indicate and lock the system accordingly when firing causes a short circuit
No Atomizer Protection: the display will let you know when no atomizer is detected and won' t "blank-fire"
Low Voltage Protection: When the battery voltage is too low, it will indicate on the display and will prevent use
Over Vaping Protection: When the fire button is pressed for more than 10 seconds, it will automatically stop
Over Charging Protection:When the battery voltage is higher than 4.15V, the light willgo off and stop charging automati-
cally
Low Battery Protection: When the battery is under 10% it shall indicate "low battery"
Caution
1.The Target Mini is intended for usage by people over 18, NOT by
non-smokers, children, pregnant or breastfeeding women, people with or at
risk of heart disease, or people taking medication for depression or asthma.
The electronic cigarette is not a smoking cessation device.
2.Please keep this unit out of reach of children or pets;
3.Please keep the battery dry; Do not place it in extremely temperatures;
4.This device does not mean to be used as a nicotine replacement therapy
for smoking cessation.
This device should not be used by persons under the age of 18 or non-smokers.
Designed in California
Manufacturer:Shenzhen Smoore Technology Limited
Add:Building 8,Dongcai Industrial Park,Gushu Town,
Baoan District,Shenzhen, China 518102
Management System of SMOORE factory has been assessed
and registered under the Norm cGMP, ISO13485, ISO9001
and ISO14001.TM and ©2016 Vaporesso All rights reserved
