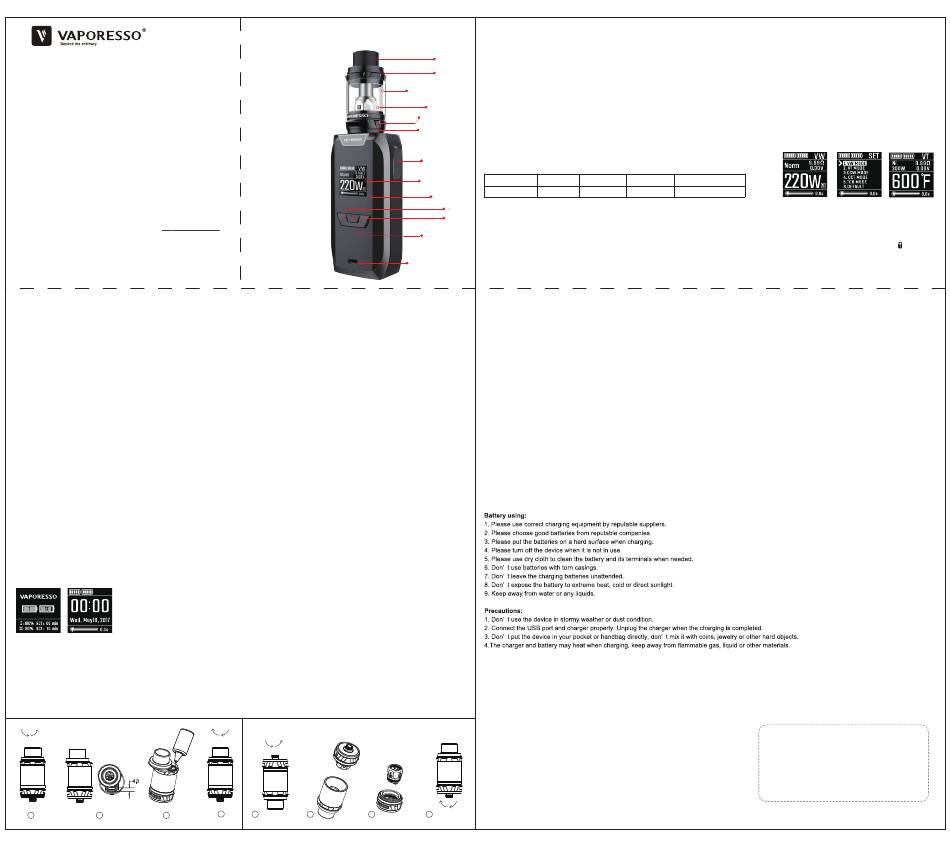

Vaporesso Revenger Kit Kurzanleitung

Thank you for choosing Vaporesso Products!
The Revenger Kit by Vaporesso utilizes the most advanced chipset OMNI Board 2.0
with a range of 5 to 220W, multiple output modes with quick charge system and
Remaining Charging Time, driven by two 18650 batteries (sold separately). As the
1st in vaping history, It features the In-Mould Labeling (IML) case for greater wear
resistance, graphic quality and fine texture.
It is equipped with NRG Tank, a masterpiece of everyday vape and cloud chasing,
featuring innovative GT Cores that comes in traditional and signature CCELL
Ceramic Coil.
The Slide-n-Fill design makes refill easier than ever. The heating insulation layer on
the bottom demonstrates how Vaporesso care for safer and relaxing vaping
experience. Furthermore, the mesh drip tip with specially engineered structure will
prevent any spit back.
The ergonomic design integrates the all metal fire button on the side for better grip
and the industry leading OLED screen with the mode buttons on the side. You would
get all the information on your vape on this OLED screen, including useful tips like
the remaining time to get your battery fully charged, backed by OMNI Board 2.0.
Enjoy the flavor and vapor out of the variety of GT cores available.
Revenger Kit, Above and Beyond!
Please read this manual carefully to ensure proper use. For additional information or
questions regarding to this product or its use, please visit www.vaporesso.com
Main features
● OMNI Board 2.0, DO IT ALL
● Revolutionary IML Case, Durable and Environmental Friendly
● Slide-n-Fill Design, Easier Refilling than Ever
● Unique Mesh Drip Tip, avoiding spit back
● Heating Insulation Layer, Safer and Relaxing Vaping
Specification:
Revenger Mod
Diameter: 45x89x28mm
Weight: 138g
Output Modes: Smart VW(H/N/S), CCW, CCT,VT(NI,TI,SS),
TCR(M1,M2), RCT, BYPASS
Temperatue Control Range:100°C-315°C/200F-600F
How to Use
1.Switch On/Off:
Press the fire button 5 times in quick succession within 2 seconds to turn the device on. In the same way, the device will be powered off after 5 presses.
2.Vaping:
Hold the fire button and inhale through the mouthpiece. Release the fire button and exhale.
3.Screen Display:
After switch on, the OLED displays voltage resistance, battery level, temperature, output wattage etc. The display will change to Real Time Clock after 10 seconds if unused and
the Real Time Clock will be shut off after 15 minutes if unused. Press "+" or "-" or Mode button once and the screen will be lit with Real Time Clock display and press "+" or "-" or
Mode button again, the screen will be lit with main manual. Press the fire button at any time, the screen will be lit with main manual.
4.Automatic atomizer recognition:
The mod will read the coil's resistance as soon as the connection is detected. It will also recognize coil type, when a kanthal coil is used, the mod will shift from TC to wattage
mode automatically.
5.Adjustment buttons lock/unlock:
Keep pressing mode button and "+"button simultaneously for two seconds when the device is powered on, then the up and down buttons will be locked and the screen will
display "SYSTEM LOCKED". In the same way, pressing the up and mode buttons can be unlocked and the screen will display "SYSTEM UNLOCKED".
6.Switch display mode:
Keep pressing up button and down button simultaneously for two seconds ,the screen display will rotate 180degrees.
7.Switch vaping modes:
Long press the mode button for three seconds to switch among VW(H/N/S) /VT(Ni200, SS, Ti)/ TCR / BYPASS / CCW / CCT modes.
8.Charging:
It is with Quick Charge System and equalizing charge system. Simply plug in the USB cable to charge the battery, OLED display current battery level (0%, 20%, 50%, 80%, and
100%) and the Remaining Charging Time to get the battery fully charge. The Remaining Charging Time will be shown in every10 minutes. And the display will remain lit while
charging.
9.Firmware update and customizing:
Can be updated and customized through a simple software that can be downloaded directly from our website. The software will be made to run on Windows systems and will be
available in English. It will also include a "help"sections for urgent questions. The directions on how to use our software will be found on our website and Facebook page.
RCT Real Time Clock
10.Adjustment of airflow:
The bottom airflow system can be adjusted with slight twisting of the airflow ring.
11.Filling E-liquid:
The Slide-n-Fill design only asks you to slide the top lip counter clockwise to the fullest extend. Fill in juice through the opening and slide the top back.
12.Changing Atomizer:
Remove the base and unscrew the GT Cores and insert the new GT cores onto the base. Secure the base back in place. There are a variety of GT cores available for NRG Tank
series. Please select the GT Cores you desire.
OPEN
1 2
3
Revenger Kit
Specification:
NRG Tank / NRG Mini Tank
NRG: 5ml / 26.5x56mm / 66 g
NRG Mini: 2ml / 23x47mm / 48g
Revenger Kit
Package Include:
1 x Revenger Mod
1 x NRG Tank with GT4 Core
preinstalled
1 x Extra GT8 Core
1 x Extra Pyrex Glass Tube
1 x USB Charger Cable
Revenger Mod
Package Include:
1 x Revenger Mod
1 x USB Charger Cable
Output Power: 5-220 Wattage
Display: OLED 0.96"
Resistance range: 0.05Ω-5Ω
Thread: 510 thread
Max Output Current: 50A
Voltage Range: 0 - 9 v
Battery Cell: 2x18650 Battery(not included)
CLOSE
OPEN
4 1 2
3
How to Set the Mode
Quick Guide
1) Smart VW mode:
As an advanced Variable Wattage mode, there are 3 levels of VW: H stands for High; N stands for Normal; S stands for Soft. The default setting is Normal. VW(H/N/S) will
guarantee your mod' s ability to skillfully select the adequate average wattage for your atomizer, according to its resistance reading, automatically.
Drip tip
2) In CCW mode:While on VW mode, press the mode button three times consecutively to select CCW. Select and hold down the mode button to confirm and to implement any
Top Lid
modifications to the wattage line using the plus and minus buttons (Ramp up time and consequent performance); move on to the next bar with a quick press of the mode button.
When all modifications are final hold pressed the mode button to save and exit.
3) In TC-Ni/TC-Ti/TC-SS/TCR(M1, M2) Mode:
Pyrex glass tube
When set in TC-Ni/TC-Ti/TC-SS mode, the device can separately support Nickel 200, Titanium, and 316 Stainless Steel coils. The OMNI Board 2.0 allows you to change the
start up wattage under temperate control mode. The default wattage is 65W. You could also adjust the value of the coil within the given range.
GT Cores
In TCR (Temperature Coefficient of Resistance) mode, the device can support different temperature control coils within different TCR value ranges and you can set the TCR at
Air Flow Ring
different values within proper range.
The Setting of TCR Mode (M1,M2):
Base
When set in TC-Ni/TC-Ti/TC-SS mode ,and the device is powered on, you will enter into the TCR (M1,M2) set menu, by clicking mode bottom 3times:
1. Press mode button to choose among M1, M2 ;
2. Press the up or down button to increase or decrease the TCR value according to the material of the coil you used;
Power Button
Following are different TCR value ranges for different coils for your reference:
Material Nicle Titanium
OLED Display
TCR Value Range 600-700 300-400
IML Case
Note: 1.The TCR value in the sheet is 10 multiplied of the actual TCR.
2.Our total range of TCR value is 1-1000.
+
Adjust temperature: In TC-Ni/TC-Ti/TC-SS/TCR(M1,M2) mode, temperature can be adjusted from 100-315℃ or 200-600℉ by pressing up button or down button, up button to
increase and down button to decrease. Each press of the up or down button will increase or decrease the temperature setting by 5℃ or 10℉. Long press up button or down
Mode Button button can rapidly increase or decrease temperature setting.
Lock/Unlock resistance: In TC-Ni/TC-Ti/TC-SS/TCR(M1, M2) Mode, press the "-"and mode button simultaneously for 2s will lock/unlock the resistance level, "
on the display. Attach a new atomizer will not change the locked resistance.
Automatic atomizer recognition: To achieve better temperature control effect, the mod will ask the user if the new atomizer is attached. " OLD LOAD: -, NEW LOAD: + " will
USB Charging Port
appear on the display. If a new atomizer is attached, press " + ", the mod will read new resistance; if not, press " - ", the mod will read at locked resistance.
4) In CCT mode:
While on any TC mode, press the mode button three times consecutively to select CCT. Select and hold down the mode button to confirm and to implement any modifications to
the temperature line using the plus and minus buttons (Ramp up time and consequent performance); move on to the next bar with a quick press of the mode button. When all
modifications are final hold pressed the mode button to save and exit.
5) In Bypass mode:
Direct output voltage system is applied in Bypass mode. The higher the batterylevel is, the higher the output voltage is. When set in this mode, the device can support a coil
whose resistance is within the range of 0.05-5ohm.
6) Smart ON/OFF:
As an advanced Variable Wattage mode, Smart VW could be switched on and off on the main manual and it does not impact the VW(H/N/S). Enter Smart ON/OFF and press
Yes or NO to confirm.
7) Screen Timeout:
The default timeout setting is 10 seconds of main manual and then switch to Real Time Clock for another 15 minutes. The timeout setting could be adjusted from 3 seconds up
to 60 minutes. Enter the Screen Timeout and adjust the time up or down as you wish. For example, if you choose 3 seconds, after 10 seconds of showing the main manual, the
display will be showing 3 seconds of Real Time Clock.
8). Default:
You could reset to default setting by entering Default and pressing YES.
Warning:
When inserting the batteries into the new mod, remember to make sure they are new, and that they are one of a pair. Unevenly charged batteries, used batteries, or
non-matching batteries may cause significant delays in charging and affect the performance of the device.
Caution
1. It is intended for usage by people over 18, NOT by non-smokers, children, pregnant or breastfeeding
women, people with or at risk of heart disease, or people taking medication for depression or asthma.
The electronic cigarette is not a smoking cessation device.
2. Please keep this unit out of reach of children or pets;
3. Please don't drop, throw or abuse your Mod,it may cause damage.
4. Do not place it in extremely temperatures;
5. Do not try to disassemble the battery.
This refillable electronic cigarette is intended for use with compatible liquid, which may contain nicotine. Nicotine is an addictive substance and its
use is not recommended for use by the following:
- Non smokers or persons under the legal smoking age
- Pregnant or breastfeeding women
- Persons experiencing heart disease, stomach or duodenal ulcers, liver or kidney problems, long-term throat disease or difficulty breathing due to bronchitis,
emphysema or asthma.
- Persons with an overactive thyroid gland or experiencing phaeochromocytoma (a tumour of the adrenal gland that can affect blood pressure)
- Those taking the medications Theophylline, Ropinirole or Clozapone
You may experience the following side effects if you use nicotine containing
e-liquid in combination with this product. If this happens, please consult a
healthcare professional and show them this leaflet if possible:
- Feeling faint / - Nausea /- Dizziness /- Headache /- Coughing
- Chest palpitationspain or an irregular heart rate /- Irritation of the mouth or throat
- Stomach discomfort /- Hiccups /- Nasal congestion/- Vomition
This device should not be used by persons under the age of 18 or non-smokers.
CLOSE
4
NiFe SS(303,304,316,317)
300-400 80-200
Smart VW
Protection Functions
USB Input Protection
Equalizing charge system
Low voltage protection
Output short circuit protection
Low resistance protection
Over-temperature protection
Overcurrent protection
Anti-loaded battery protection
Designed in California
Manufacturer:Shenzhen Smoore Technology Limited
Add:Building 8,Dongcai Industrial Park,Gushu Town,
Baoan District,Shenzhen, China 518102
Management System of SMOORE factory has been assessed
and registered under the Norm cGMP, ISO13485, ISO9001
and ISO14001.TM and ©2016 Vaporesso All rights reserved
