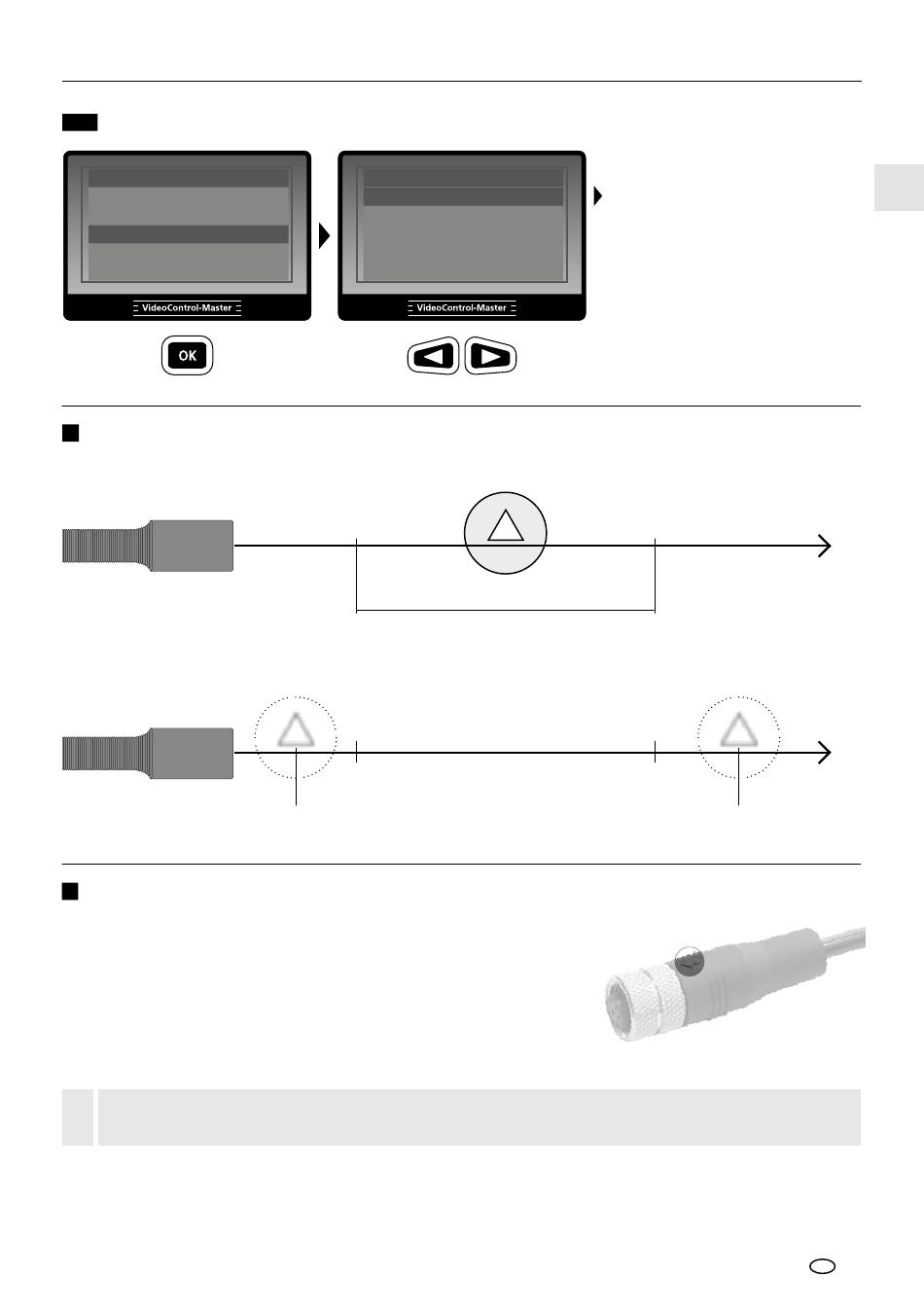

Metre counter functions
1.1
Menu
Auto power off
Input source
Length measure
Video output
Delete all
Focal depth
2
The PipeControl-LevelFlex-Camera delivers sharp images in a range between 5 and 60 cm from
the camera head.
Objects well beyond the focus range may appear blurred.
Connection for control cable
3
When screwing the control cable to the PipeControl-LevelFlex-Camera
and the VideoControl-Master base unit on top, ensure that the
arrow on the connector plug points toward the groove of the
respective device.
!
The sensitive contact pins of the connector only fit into the socket in this position and can be
damaged if not positioned correctly or used too forcefully.
PipeControl-LevelFlex-Camera
Length measure
Reset
Unit
Disable / Enable
< 5 cm
Reset:
Delete measurement
Unit:
Switch unit of measure
(cm / inch)
Activate / deactivate:
Switch metre counter on/off
5 - 60 cm
> 60 cm
