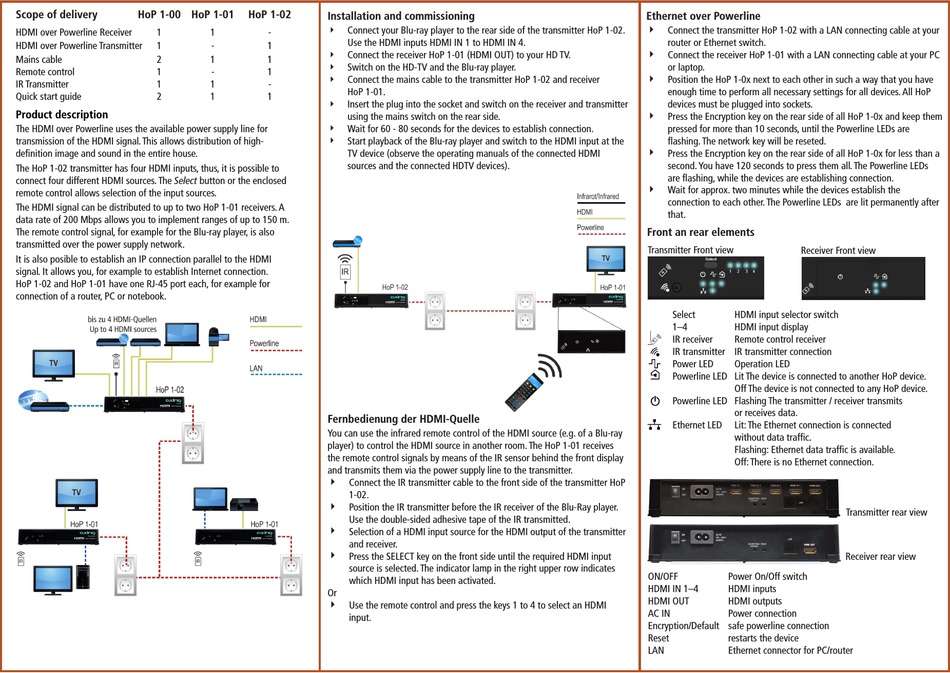

axing HoP 1-01 Betriebsanleitung Seite 4

Scope of delivery HoP 1-00 HoP 1-01
HDMI over Powerline Receiver 1
HDMI over Powerline Transmitter 1
Mains cable 2
Remote control 1
IR Transmitter 1
Quick start guide 2
Product description
The HDMI over Powerline uses the available power supply line for
transmission of the HDMI signal. This allows distribution of high-
definition image and sound in the entire house.
The HoP 1-02 transmitter has four HDMI inputs, thus, it is possible to
connect four different HDMI sources. The Select button or the enclosed
remote control allows selection of the input sources.
The HDMI signal can be distributed to up to two HoP 1-01 receivers. A
data rate of 200 Mbps allows you to implement ranges of up to 150 m.
The remote control signal, for example for the Blu-ray player, is also
transmitted over the power supply network.
It is also posible to establish an IP connection parallel to the HDMI
signal. It allows you, for example to establish Internet connection.
HoP 1-02 and HoP 1-01 have one RJ-45 port each, for example for
connection of a router, PC or notebook.
HoP 1-02
Installation and commissioning
4 Connect your Blu-ray player to the rear side of the transmitter HoP 1-02.
1 -
Use the HDMI inputs HDMI IN 1 to HDMI IN 4.
- 1
4
Connect the receiver HoP 1-01 (HDMI OUT) to your HD TV.
1 1
4 Switch on the HD-TV and the Blu-ray player.
- 1
4 Connect the mains cable to the transmitter HoP 1-02 and receiver
1 -
HoP 1-01.
1 1
4 Insert the plug into the socket and switch on the receiver and transmitter
using the mains switch on the rear side.
4
Wait for 60 - 80 seconds for the devices to establish connection.
4 Start playback of the Blu-ray player and switch to the HDMI input at the
TV device (observe the operating manuals of the connected HDMI
sources and the connected HDTV devices).
Fernbedienung der HDMI-Quelle
You can use the infrared remote control of the HDMI source (e.g. of a Blu-ray
player) to control the HDMI source in another room. The HoP 1-01 receives
the remote control signals by means of the IR sensor behind the front display
and transmits them via the power supply line to the transmitter.
4
Connect the IR transmitter cable to the front side of the transmitter HoP
1-02 .
4
Position the IR transmitter before the IR receiver of the Blu-Ray player.
Use the double-sided adhesive tape of the IR transmitted.
4
Selection of a HDMI input source for the HDMI output of the transmitter
and receiver.
4
Press the SELECT key on the front side until the required HDMI input
source is selected. The indicator lamp in the right upper row indicates
which HDMI input has been activated.
Or
4
Use the remote control and press the keys 1 to 4 to select an HDMI
input.
Ethernet over Powerline
4
Connect the transmitter HoP 1-02 with a LAN connecting cable at your
router or Ethernet switch.
4
Connect the receiver HoP 1-01 with a LAN connecting cable at your PC
or laptop.
4
Position the HoP 1-0x next to each other in such a way that you have
enough time to perform all necessary settings for all devices. All HoP
devices must be plugged into sockets.
4
Press the Encryption key on the rear side of all HoP 1-0x and keep them
pressed for more than 10 seconds, until the Powerline LEDs are
flashing. The network key will be reseted.
4
Press the Encryption key on the rear side of all HoP 1-0x for less than a
second. You have 120 seconds to press them all. The Powerline LEDs
are flashing, while the devices are establishing connection.
4
Wait for approx. two minutes while the devices establish the
connection to each other. The Powerline LEDs are lit permanently after
that.
Front an rear elements
Transmitter Front view
Receiver Front view
Select HDMI input selector switch
1–4 HDMI input display
IR receiver Remote control receiver
IR transmitter IR transmitter connection
Power LED Operation LED
Powerline LED Lit The device is connected to another HoP device.
Off The device is not connected to any HoP device.
Powerline LED Flashing The transmitter / receiver transmits
or receives data.
Ethernet LED Lit: The Ethernet connection is connected
without data traffic.
Flashing: Ethernet data traffic is available.
Off: There is no Ethernet connection.
ON/OFF Power On/Off switch
HDMI IN 1–4 HDMI inputs
HDMI OUT HDMI outputs
AC IN Power connection
Encryption/Default safe powerline connection
Reset restarts the device
LAN Ethernet connector for PC/router
Transmitter rear view
Receiver rear view
