WARNING
Observe the following safety instructions!
4
Do NOT use the device near water or in rooms with high humidity
such as humid cellars or near swimming pools.
4 Do NOT use the device outdoors. All connections must be located
inside a building.
4 Keep the device away from moisture, dust or corrosive liquids.
4 Do NOT install the device, use it or perform maintenance during a
thunderstorm. There is a risk of electric shock during thunderstorm.
4
Connect ONLY appropriate accessories to the device.
4 Make sure that all cables are connected to the correct port.
4 Carefully lay the Ethernet, antenna and electric cables to ensure
that nobody can step on or stumble over them.
4 Do NOT cover the ventilation slots of the device since insufficient air
supply may result in damage to the device.
4
Do NOT place any objects on the device. Position the device in a
place where NOBODY can step on it.
4 Prior to maintenance or dismounting work, disconnect the Ethernet
and electric cable from the device.
4
In case of damage, interrupt the power supply.
4 Do NOT try to repair the device. Contact your local retailer to order
a new device.
4
Do NOT open the device or unit. Opening the device or removing its
covers causes risks, for example due to high voltage. This device
should ONLY be repaired or uninstalled by qualified service
personnel. For more information, contact your retailer.
State of the art 2015-01-12 - Reserving change in design and type -
We cannot be held liable for printing errors
Technical specifications:
Supported video formats DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080p
Data rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 Mbps
Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 m
Frequency range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2...30 MHz
Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 bit AES
Interface . . . . . . . . . . . . . . . . . . . . . . . . . . 10/100/1000 Mbps Ethernet RJ-45
IR frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 kHz
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100...240 V~ 50/60 Hz
Operating temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0...40°C
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20...60°C
Air humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20...95% RH
At www.axing.com we provide the following aditional information
4
Operation instructions HoP
4
Application examples SMARTSolutions
Manufacturer EWR contact adress
AXING AG Bechler GmbH
Gewerbehaus Moskau Am Rebberg 44
CH-8262 Ramsen D-78239 Rielasingen

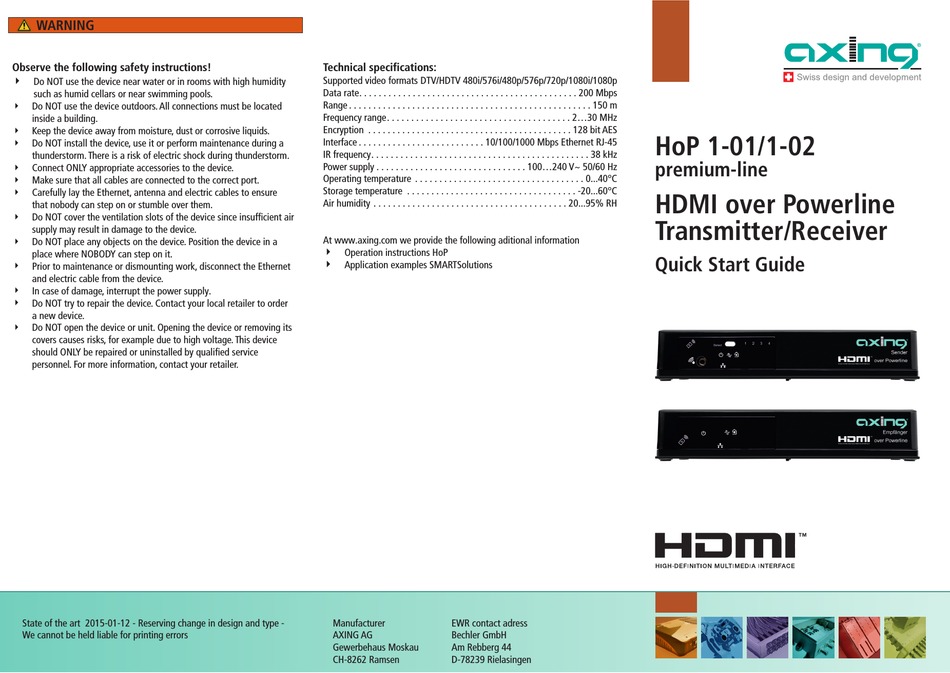

HoP 1-01/1-02
premium-line
HDMI over Powerline
Transmitter/Receiver
Quick Start Guide
