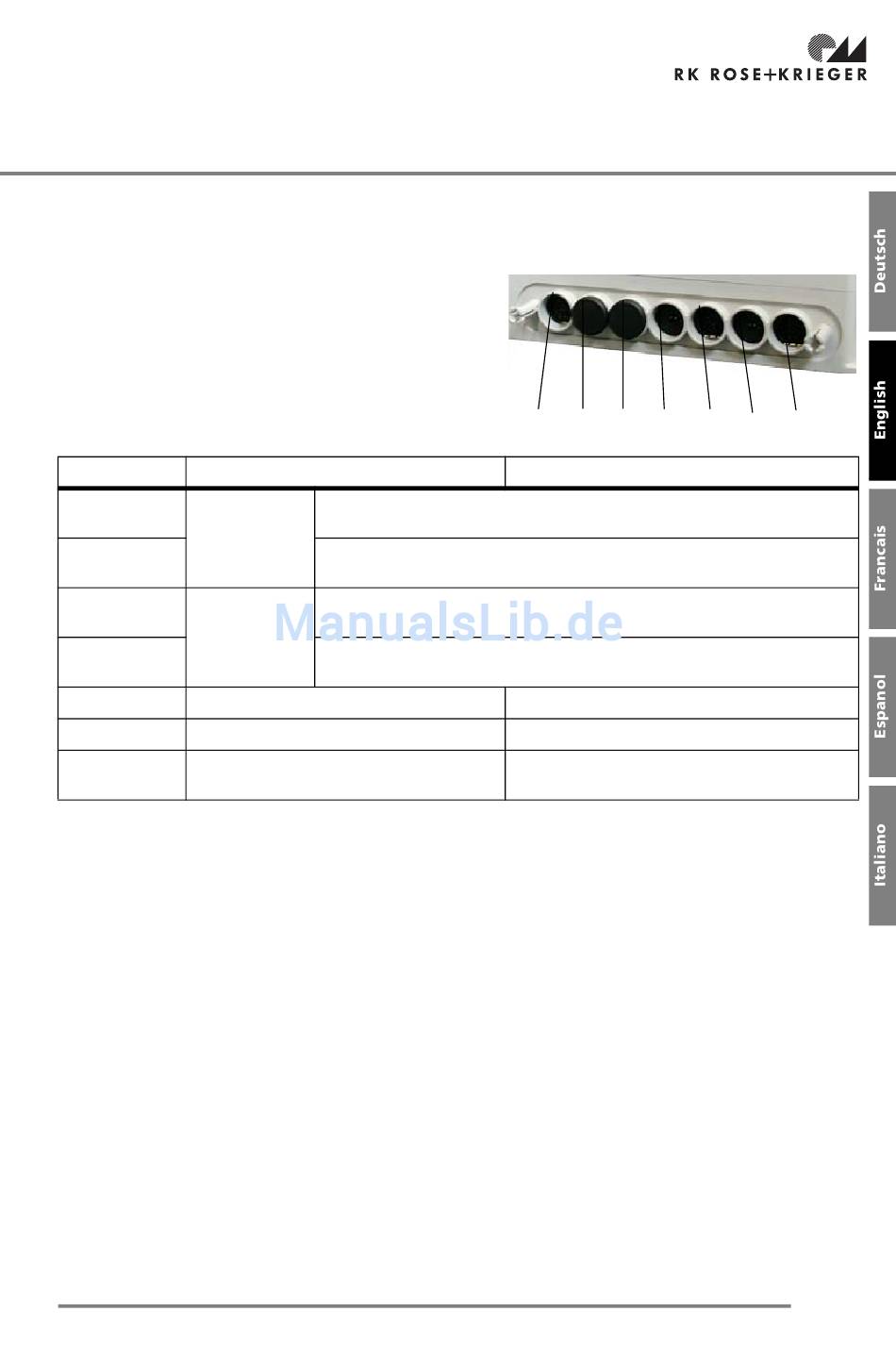

7.2.2 Terminal assignment on the housing
The controller has been designed for maximum 2 drives. The
controller either has the 8-pin socket or the 2-pin socket. The
connections not required must be covered with blind plugs.
Socket
1
Drive 1
2
3
Drive 2
4
5 Spare
6 Speed settings
Parallel hand switch
7
with 2 or 6 buttons
Always keep socket 5 sealed during operation in all cases.
Connection
Connection C
Connection A
Connection C
Connection A
7 6 5 4
Remark
8-pin DIN socket for lifting columns with
respective connector
2-pin DIN socket for lifting columns with
respective connector
8-pin DIN socket for lifting columns with
respective connector
2-pin DIN socket for lifting columns with
respective connector
2 to 10 Volt input or potentiometer input
5-pin DIN socket
