MANUAL PUSH FEEDER
FEED CYLINDER
WRENCH
DECORING DEVICE
CUTTING TOOL
ALWAYS USE!
EJECTOR PLATE

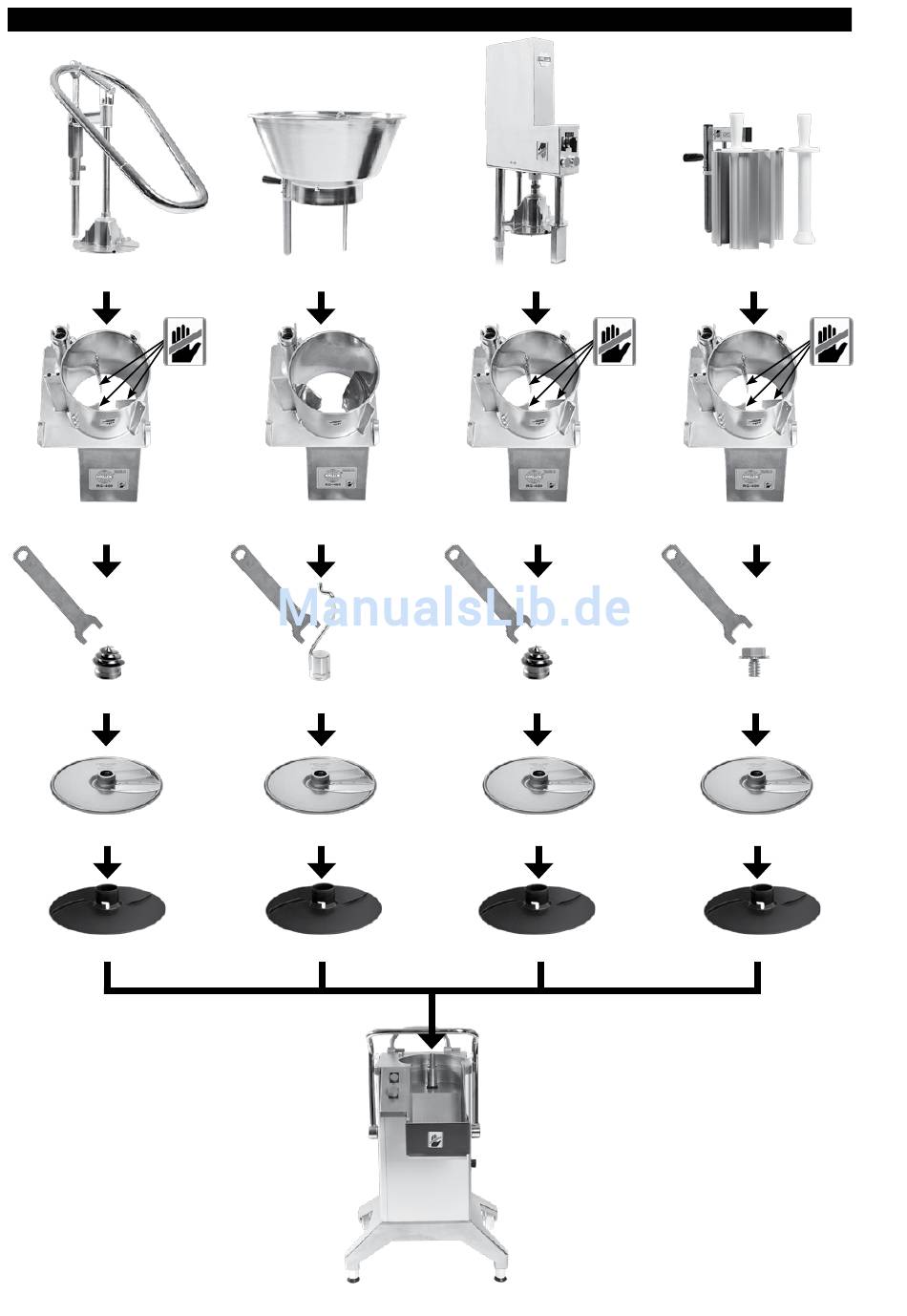

PARTS / ASSEMBLING
FEED HOPPER
FEED CYLINDER
FOR FEED HOPPER
WRENCH
AGITATOR DEVICE
CUTTING TOOL
ALWAYS USE!
EJECTOR PLATE
MACHINE BASE
PNEUMATIC PUSH FEEDER
FEED CYLINDER
WRENCH
DECORING DEVICE
CUTTING TOOL
ALWAYS USE!
EJECTOR PLATE
4-TUBE INSERT
FEED CYLINDER
WRENCH
LOCKING BOLT
CUTTING TOOL
ALWAYS USE!
EJECTOR PLATE
