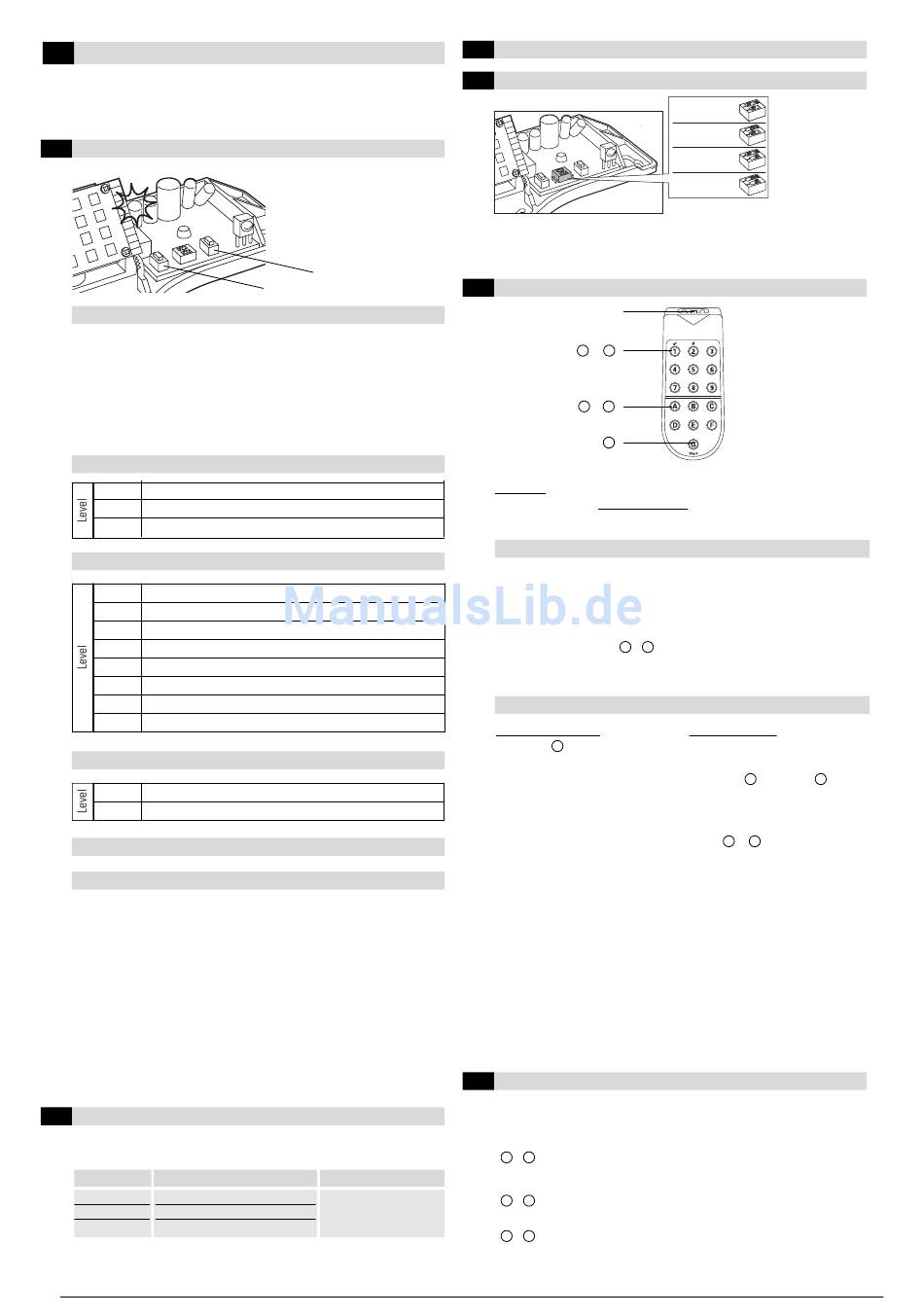

Sensor Configuration
The sensor can be configured in two ways:
→ With keys on the sensor (basic settings)
→ With the remote control (complete setting options)
5.1
Configuration with keys
General procedure
1)
Keep [<] and [>] pressed for a corresponding length of time; every 2 s the
green LED will flash once
2)
Frequency of the flashing green LED (1-9 times) indicates current parameter
level
3)
The parameter level can be decreased or increased with [<] and [>]
respectively
4)
Press [<] and [>] briefly to exit the programming mode (settings are saved)
Changing the field size: Press [<] and [>] for 2 s
small
1, 2, 3
4, 5, 6* medium
7, 8, 9
large
Changing the functionality: Press [<] and [>] for 4 s
1*
forwards, mounting height standard
2
forwards, mounting height high
3
backwards, mounting height standard
4
backwards, mounting height high
5
direction recognition OFF, mounting height standard
6
direction recognition OFF, mounting height high
7
forwards + MTO, mounting height standard (MTO, see chap. 7)
8
forwards + MTO, mounting height high (MTO, see chap. 7)
Changing the field geometry:Press [<] and [>] for 6 s
1
narrow field
2*
wide field
Restore factory settings: Press [<] and [>] for 8 s
Example
Changing the functionality from level 6 to level 2:
1) Keep [<] and [>] pressed for 4 s, the green LED blinks once after 2 s,
once again after 4 s
2) Green LED flashes 6 times and thereby indicates the current parameter level
3) Press the key [<] four times in a row to decrease the parameter level
(green LED flashes twice and indicates the new parameter level)
4) Press [<] and [>] at the same time
Note:
If no key is actuated for 25 s, the programming mode is automatically exited
however the sensor is still in the configuration mode. The settings made up to
that point are saved.
5.1.1
Status query with keys
The status query is to find out what parameters have been set.
Parameter
Step 1
Field size
Press [<] briefly
Functionality
Press [>] briefly
Field geometry
Press [<] and [>] briefly at the same time
6
[>]
[<]
Step 2
Frequency of the flashing
green LED (1-9 times) indicates
the current parameter level
Montageanleitung GC 302 R
5.2
Configuration with remote control
5.2.1
Sensor addressing
Each sensor can be assigned an address (1*, 2, 3 or 4). Different addresses are
necessary when several sensors are within the range of a remote control.
5.2.2
Mode of operation
IR interface (infrared)
Numerical keys
to
1
9
Control keys
to
A
F
Start
G
The data transmission to and from the sensor is ensured by an IR interface. The
connection between the remote control and the sensor can only be established
when the sensor is in configuration mode.
Configuration mode
Activation: –Automatically after the sensor is connected to the supply
voltage or
–Briefly disconnect the sensor from the supply voltage or
–Press either key [<] or [>] on the sensor
Exiting:
–Press key
+
A
–Automatically after 30 min.
Establishing the connection
Without addressing:
1. Press the
start key
G
– G and one of the keys 1 to 4 light up: Connection successfully established
– G flashes: Connection not established
→ Activate configuration mode
→ Hold remote control closer to the sensor and point directly at it
→ Check batteries in remote control
– No keys light up
→ Check/replace batteries in remote control
Note:
If no entry is made for 30 s, the connection is ended. The settings
made up to that point are saved.
5.2.3
Setting / changing parameters
After the connection has been successfully established, the parameters of the
sensor can be changed.
+
Keep the door open manually for 15 min. when making settings.
A
1
Afterwards, the door will close if no object is in the detection area
+
Door closes when no object is in the detection area, afterwards
A
2
standard operation
+
Configuration mode is ended, door closes when no object is in the
A
3
detection area, afterwards standard operation
Address 1*
Address 2
Address 3
Address 4
combination or
3
With addressing:
1. Cover the IR interface of the
remote control with your hand
start key →
2. Press the
G
G
3. Release the IR interface
(remove hand)
4. Press the corresponding numerical
key (
to
)
1
4
* Factory setting
123457 , 70705-9-9521 Ä-St.1
flashes
