GC 302 R
EN ISO
9001
Quality
international
level

Installation instructions

GB
1

Safety Instructions

The unit may only be connected to a protection low-voltage system
with safe electrical separation. The unit may only be opened and
repaired by the supplier. Never touch any electronic components of
the sensor.

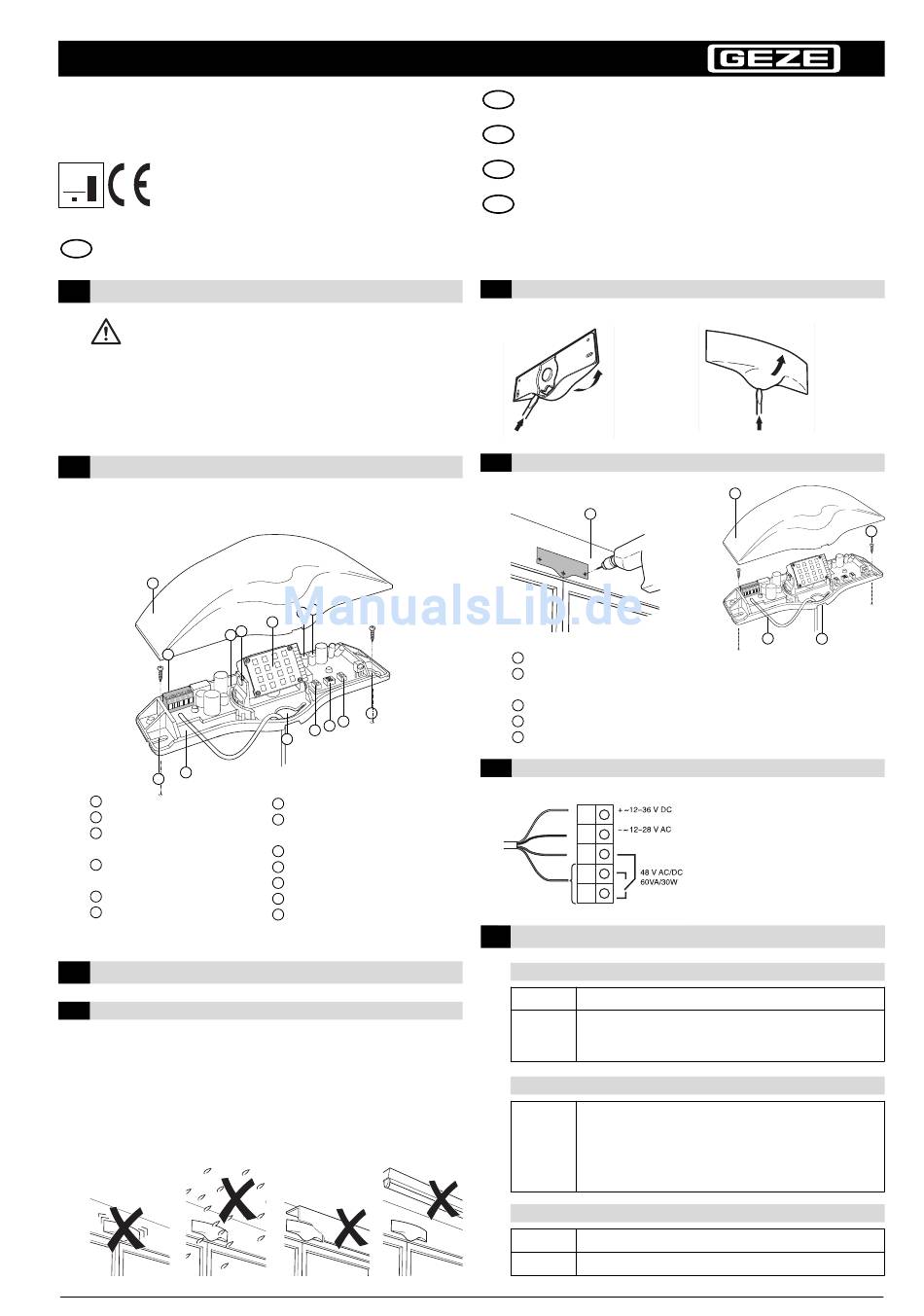

2 Description of the Sensor
Radar motion detector with direction recognition as opening sensor
for automatic doors.
1
3
2
9
8
Cover
1
Plug-in screw terminal
2
Grid for swivelling
3
the radar module
Grid for tilting
4
the radar module
Radar double field module
5
Green LED
6
3 Installation
3.1 Installation instructions
– The sensor must be mounted on a flat surface
(avoid vibrations)
– The sensor must be protected from rain and snow
– Objects (e.g. plants, flags, fans etc.) must not extend into the detection area
– The sensor must not be obscured by covers/signs
– Fluorescent tubes should not be placed in the immediate vicinity of the detection
area
123457 , 70705-9-9521 Ä-St.1
7
6
5
4
8
13
11
12
10
Red LED
7
Recess for fastening
8
the sensor
Floor plate
9
Cable feed-through
10
DIP switch (addressing)
11
Key [<]
12
Key [>]
13
Montageanleitung GC 302 R
Montageanleitung (Original) .......................... 1–4
DE
Installation instructions (Translation)............ 5– 8
GB
Instructions de montage (Traduction) ........ 9–13
FR
Istruzioni di montaggio (Traduzione) ........ 14–16
IT
3.2 Opening the housing
BEFORE installation
2
3.3 Mounting
1
Affix drilling jig to wall/ceiling and drill holes according to instructions
1
Route cable through the appropriate opening in the floor plate –
2
make sure length is sufficient for wiring
Fasten sensor
3
Connect cable (according to type plate or chap. 3.4)
4
Click cover onto floor plate
5
3.4 Electrical connections
white
1
black
2
3
brown
4
blue
5
Displays on the Sensor
4
Start-up phase
Red LED Lights up during startup for 3 s
Afterwards, the green LED flashes a few times and indicates the
Green LED software version (the sensor is already functional and
programmable)
Configuration
– Indicates parameter or parameter level through
frequency of flashing (with key configuration)
– Flashes briefly:
Green LED
– When key configuration mode is exited
– When the sensor has received the command from
the remote control
Operation
LED red Lights up in the event of detection
Green LED Lights up when SMD is active
AFTER installation
5
3
4
2
5
