ENGLISH
3. Hardware Installation CHD2UL
3.1 Assembling the CHD2UL (When no hard disk is installed yet)
If you bought the CHD2UL with a hard disk pre-installed, you
can skip this step and continue to step 3.2
a. Remove the 2 screws at the back of the CHD2UL.
b. Gently slide the hard disk tray out of the back of the
housing.

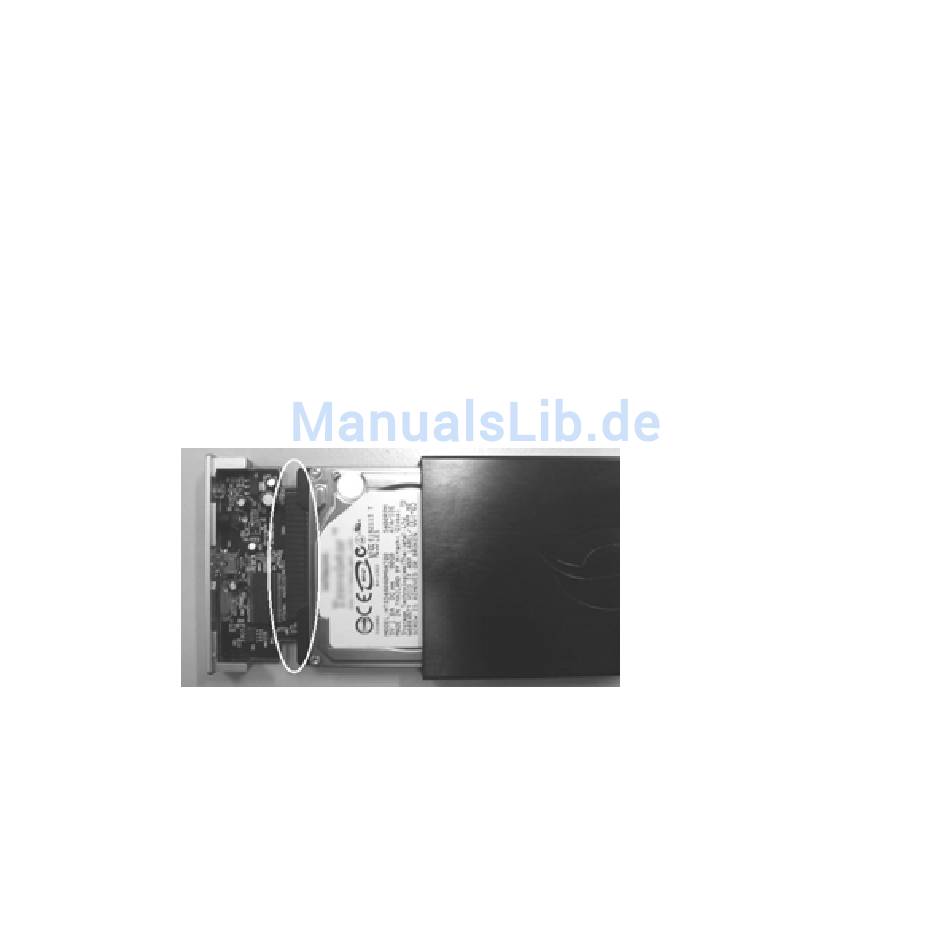

c. Connect the 2,5" hard disk gently to the connector. Make
sure the connector is connected correctly to the hard disk.
d. Slide back the tray in the housing.
e. Fasten the 2 screws to secure the tray in the housing.
