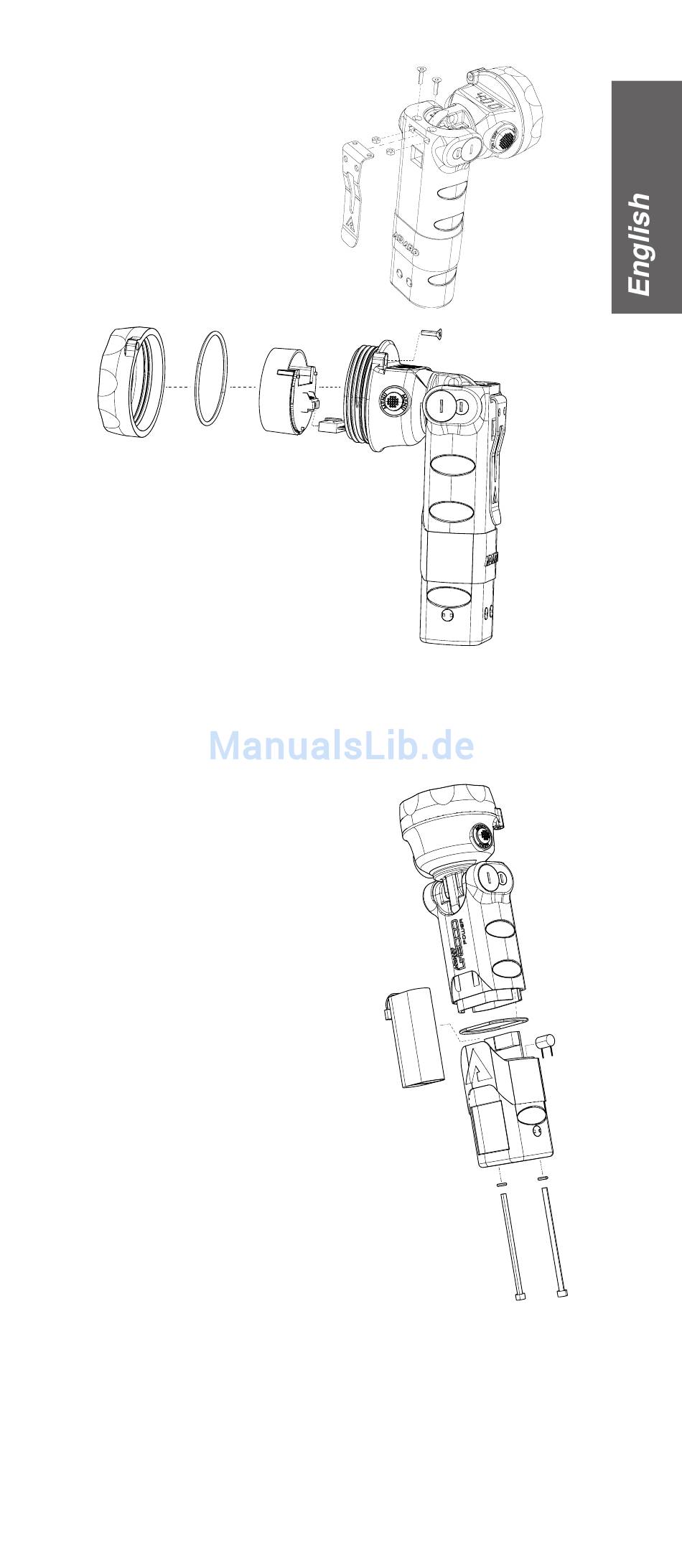

Clip replacement L3.480
1. Remove the two
upper screws
2. Remove the clip
3. Take out the two nuts
LED Engine Replacement
1. Unscrew the screw
ref. L3.49
2. Remove the closing
ring and the protection glass
ref. L3P.10
3. Take out the LED engine
ref. L50.20
4. Disconnect the LED engine
Battery and/or
Protection Fuse Replacement
1. Unscrew the torch body
closing screws ref. L3.530
2. Separeate the torch body
from the torch ref. L3P.50
3. Remove the fuse from
its position ref. WL.117
