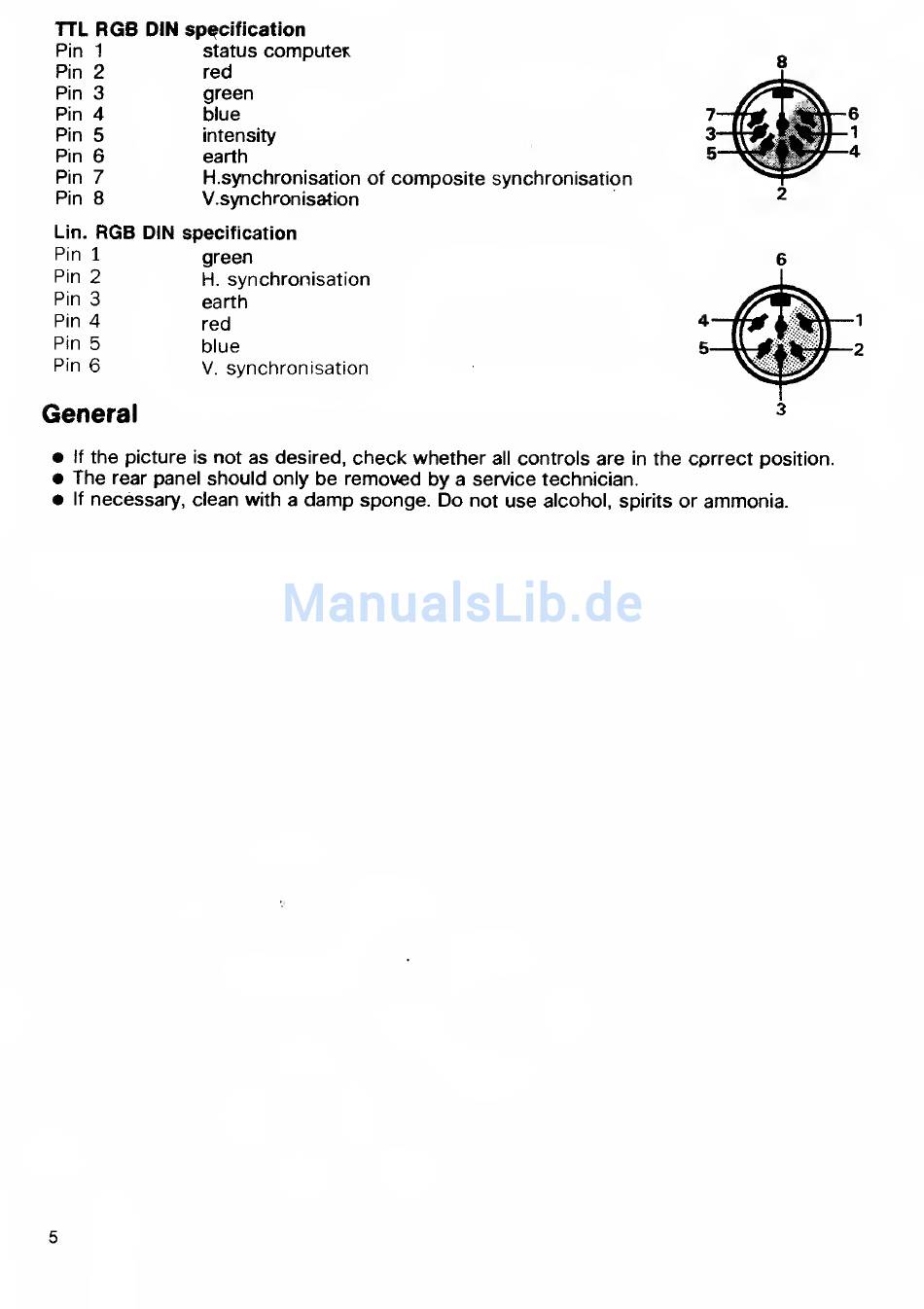

TTL
RGB
DIN
specification
Pin
1
status
computet;
Pin
2
red
Pin
3
green
Pin
4
blue
Pin
5
intensity
Pin
6
earth
Pin
7
H.synchronisation
c
Pin 8
V.synchronisation
Lin.
RGB
DIN
specification
Pin
1
green
Pin
2
H.
synchronisation
Pin
3
earth
Pin
4
red
Pin 5
blue
Pin
6
V.
synchronisation
General
•
If
the picture
is
not as
desired,
check whether
all
controls are
in
the cprrect
position.
• The
rear panel
should
only
be removed by
a service technician.
•
If
necessary, clean
with a
damp
sponge.
Do
not use
alcohol,
spirits
or
ammonia.
