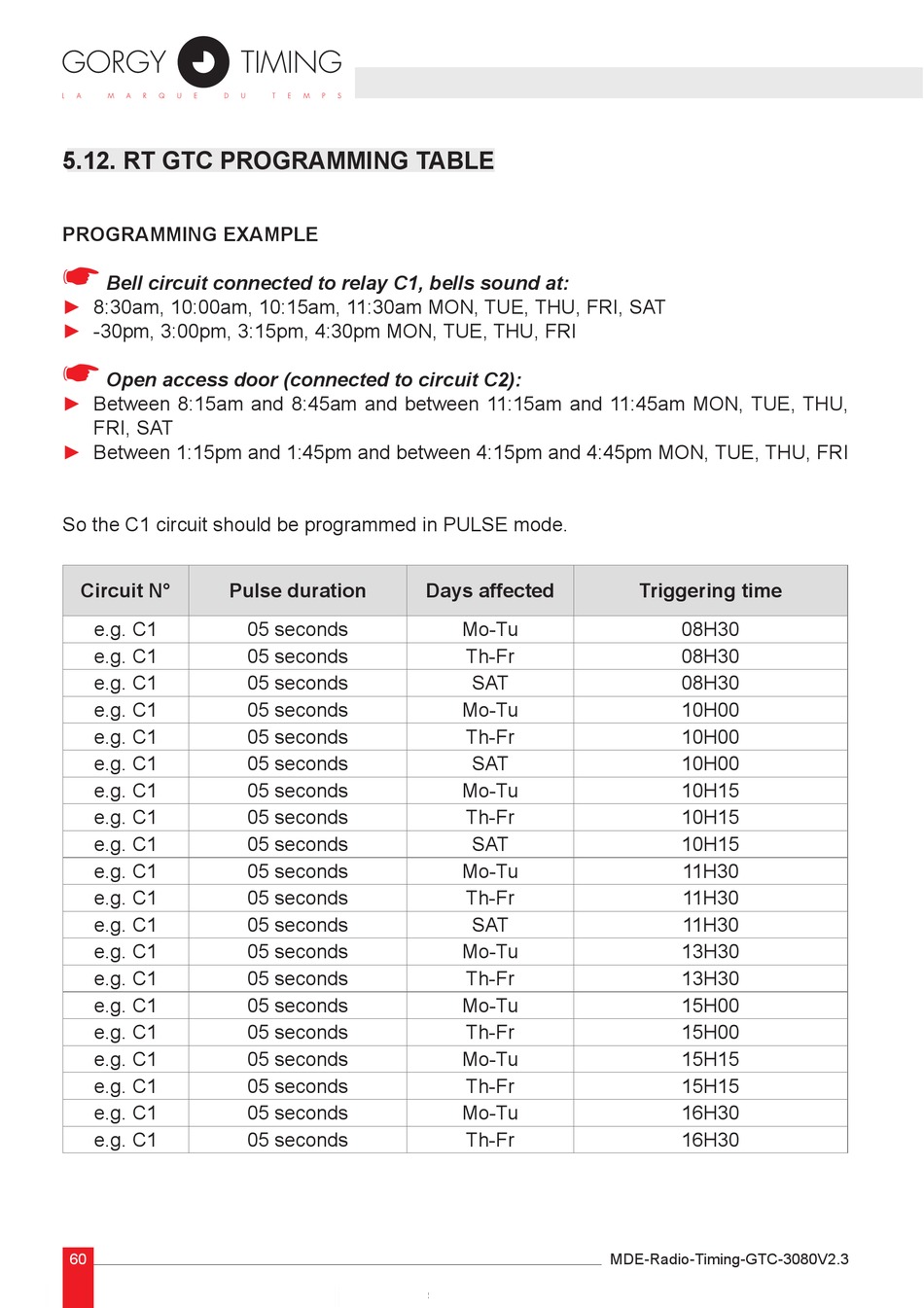

5.12. RT GTC PROGRAMMING TABLE

PROGRAMMING EXAMPLE

☛
Bell circuit connected to relay C1, bells sound at:
► 8:30am, 10:00am, 10:15am, 11:30am MON, TUE, THU, FRI, SAT
► -30pm, 3:00pm, 3:15pm, 4:30pm MON, TUE, THU, FRI
☛
Open access door (connected to circuit C2):
► Between 8:15am and 8:45am and between 11:15am and 11:45am MON, TUE, THU,
FRI, SAT
► Between 1:15pm and 1:45pm and between 4:15pm and 4:45pm MON, TUE, THU, FRI
So the C1 circuit should be programmed in PULSE mode.
Circuit N° Pulse duration
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
e.g. C1
60
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
05 seconds
Days affected
Mo-Tu
Th-Fr
SAT
Mo-Tu
Th-Fr
SAT
Mo-Tu
Th-Fr
SAT
Mo-Tu
Th-Fr
SAT
Mo-Tu
Th-Fr
Mo-Tu
Th-Fr
Mo-Tu
Th-Fr
Mo-Tu
Th-Fr
Triggering time
08H30
08H30
08H30
10H00
10H00
10H00
10H15
10H15
10H15
11H30
11H30
11H30
13H30
13H30
15H00
15H00
15H15
15H15
16H30
16H30
