ENGLISH
22. Button(1-24): Set DMX value 0~255 for channels of Shutter / Gobo / color /
Rotation / Dimmer / Focus, or save 24 memories into the buttons.
23. Stand alone: 2 extra easy controllers Incorporated for Master/Slave immediate
pre-programmed light shows.
24. Program Mode: Activate Program mode by pressing Blackout/Stand Alone button.
When the LED above the button is off, it's in Program mode.

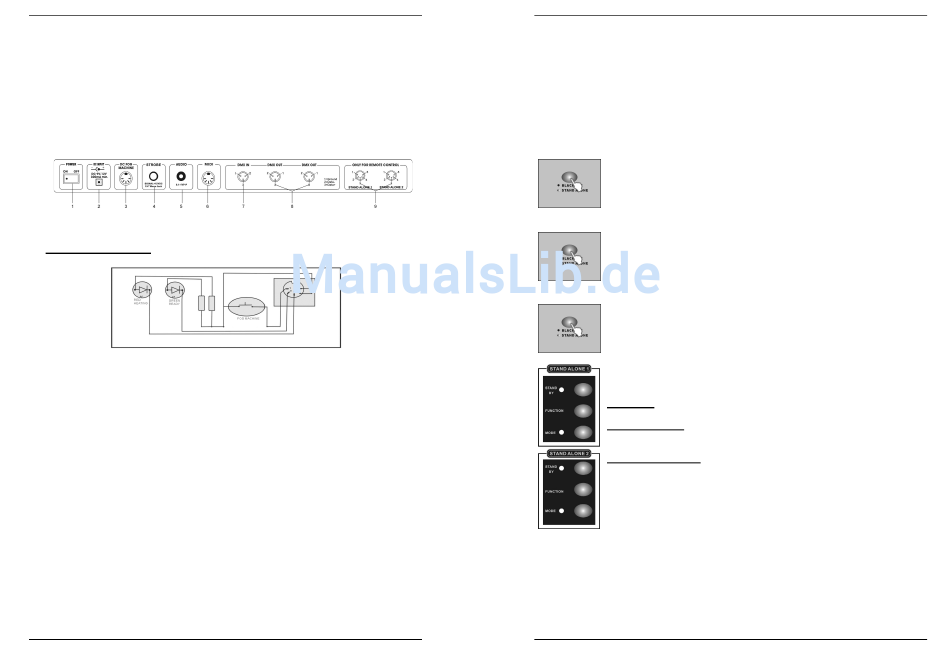

FUNCTIONS
(rear)
1. POWER: Turns On/Off the power.
2. DC INPUT: DC 9 ~12V, 300mA min.
3. FOG MACHINE: 5 pin din socket for connecting DC Fog Machine.
Fog machine diagram
(Compatible with Antari Z800 & Z1000)
4. STROBE: Trigger non-DMX strobe. Signal +12V DC.
5. AUDIO IN: By build-in microphone or line in.
6. MIDI IN: To receive MIDI data input.
7. DMX IN: This connector accepts DMX signals input.
8. DMX OUT: Two connectors sends DMX signals to DMX fixtures, use 3 pin XLR
plug cable to link the fixture together.
9. STAND ALONE: The connectors are used only in master/slave mode, using 5 pin
XLR cable microphone jack of the first fixture, you will find that the remote control
on the first unit will control all the other units for Stand by, Function and Mode.
JB SYSTEMS
OPERATION MANUAL
3/57 iLEAD Controller
ENGLISH
OPERATION GUIDE
You can easily control pan, tilt, shutter, gobo, color, rotation, dimmer and focus
functions on the lighting fixtures by pressing the relevant buttons showing on the
control panel. With the use of joystick/ sliders, you will be able to quickly set the
fixtures' Pan or Tilt position to make scenes. You can then save all these scenes step
by step in a memory to create a chase (show). The controller allows you to program
24 chases with 485 programmable scenes maximum.

PROGRAM MODE

When power is turned on, the controller enters Programming mode
automatically. The LED above this button lights off indicating
Program mode in active.
BLACKOUT MODE
Press the BLACKOUT/STAND ALONE button, the LED above this
button lights up indicating Blackout in active.
STAND ALONE MODE
Hold on the BLACKOUT/STAND ALONE for 3 seconds, the LED
above this button will blink indicating Stand-Alone mode in active.
The Stand Alone 1 and Stand Alone 2 are designed for iSolution
lighting fixtures in Stand Alone ( Master/ Slave ) mode.
Stand By: To blackout the lighting fixtures.
Mode selection: Different run modes, e.g. fast / slow, audio / manual
/ auto, position, latch, etc., correspond to different functions.
Function selection: Implements a wide variety of effects, like strobe,
X/Y moving pattern selection, gobo/ color changing, X/Y position
setting, dimmer, etc. Functions vary with different fixtures.
Different lights have different modes and different functions, which
can be triggered by Stand Alone mode. Please refer to each lighting
fixture's user manual for more details.
