4)

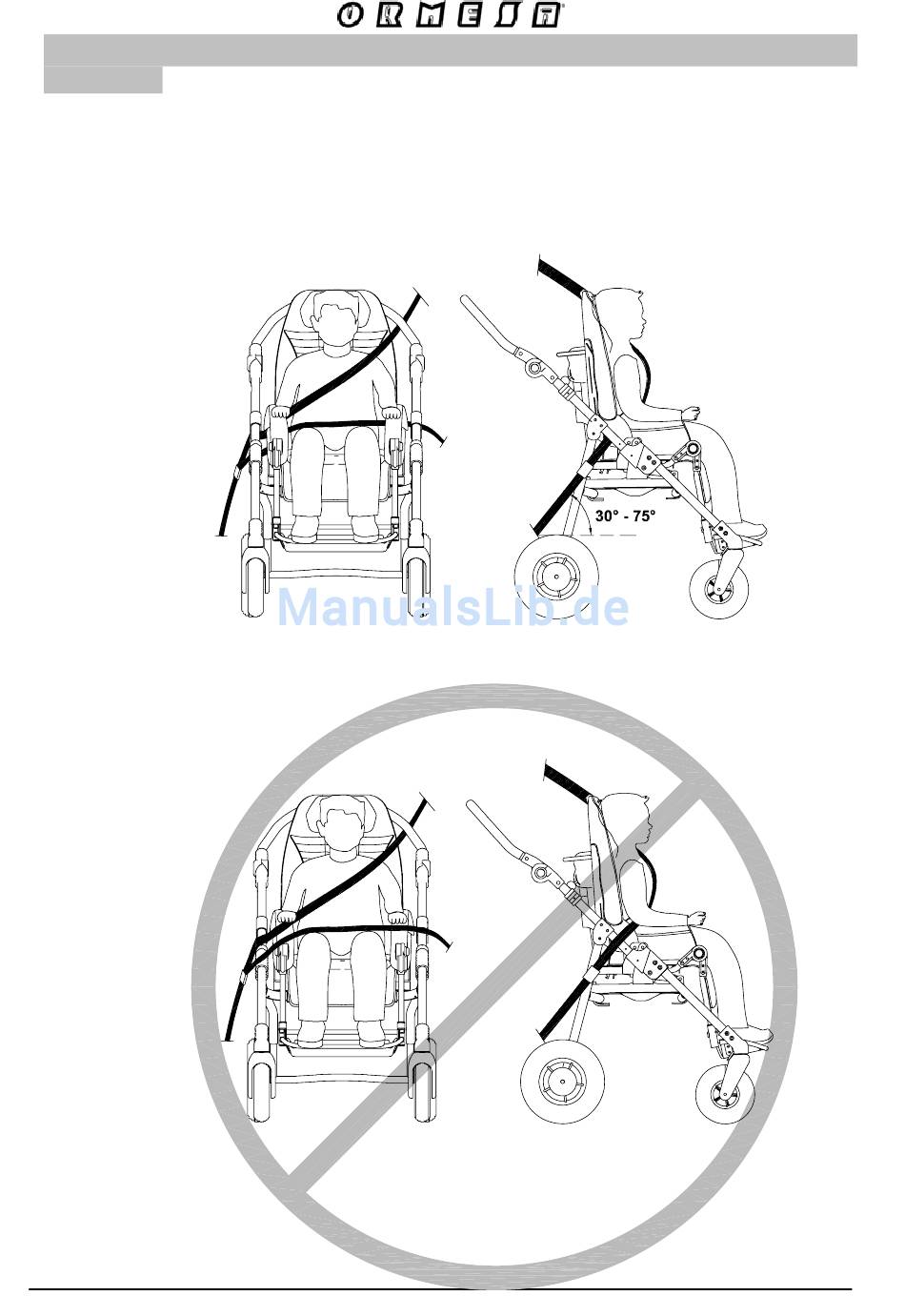

THE CORRECT POSITIONING OF OCCUPANT BELT RESTRAINTS ON
THE USER
ATTENTION! the pelvic-belt restraint should be worn low across the front of the pelvis, so that
the angle of the pelvic-belt restraint is within the preferred zone of 30° to 75° to the horizontal,
similar to that shown in Figure 5. A steeper (greater) angle within the preferred zone is
desirable,
ATTENTION! Our belts, straps, vests and harnesses are not intended to be as an occupant
restraint in a moving, but they can be used in addition
YES
beneath
the armrest
and the
frame
NO
above
the armrest
and the
frame
THE INCORRECT PLACEMENT OF BELT RESTRAINTS

FRONT VIEW

17/9
SIDE VIEW
Fig. 5
Fig. 6
