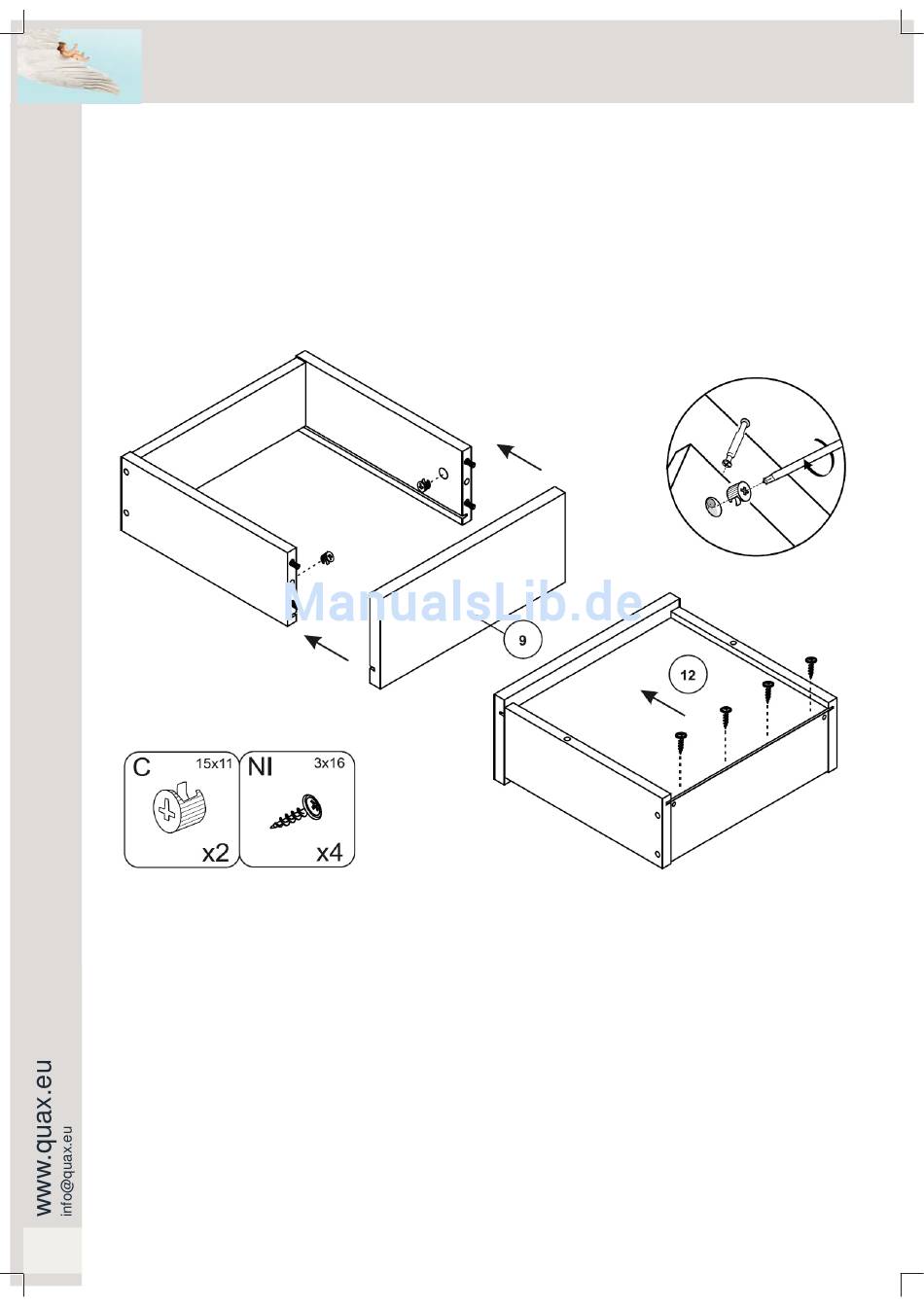

Step 7 : Use the parts of step 6, the bottom 12, two eccentrics C and four wood screws NI
Push in each drawer side (11L and 11R) an eccentric (C) in the drillings provided on the innerside. Slide the
drawer bottom (12) into the grooves of the assembled drawer. Push the drawer front (9) with the connectors into
the drillings and over the wooden dowels of the sides and tighten the eccentrics. Fix the bottom to the back using
four wood screws (NI).
32
54 05 10xx
Nachttafel met lade
Nachttisch mit Schublade
Chevet avec tiroir
Bedside table with drawer
