JOY
54 05 10xx

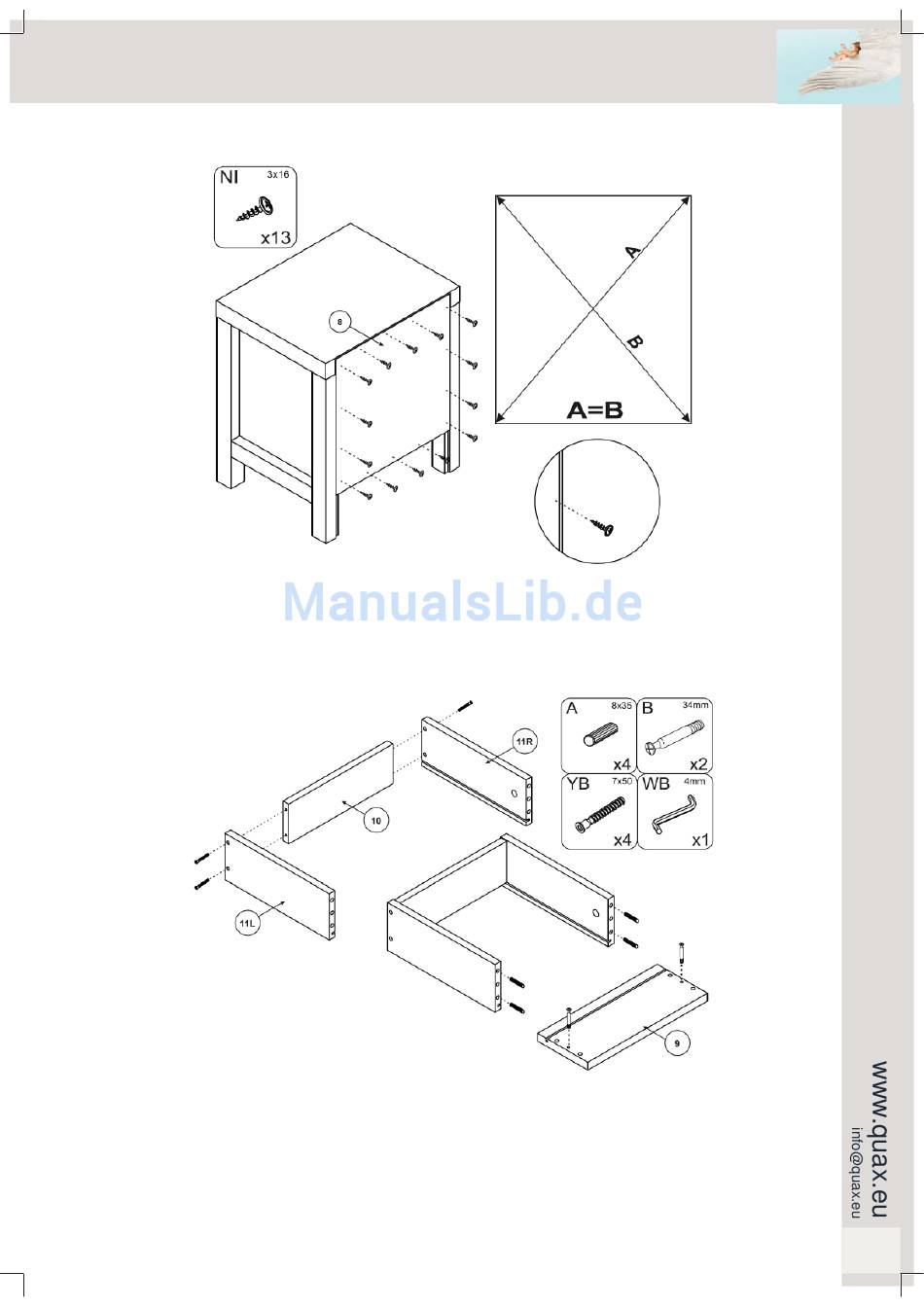

Step 5 : Use the assembled structure of step 4, the back 8 and thirteen wood screws NI
Place the panel (8) on the back of the chest. Check if distance A is equal to B and then fi x the back using
the wood screws (NI).
Step 6 : Use all drawer sides 11L and 11R, the back 10, the front 9, four wooden dowels A, two connectors
B and four bolts YB
Insert a back (10) between the drawer sides (11L and 11R). Push the bolts (YB) through the holes on the
outside of the side and tighten them in the back. Push in each side two wooden dowels (A) into the drillings
on the ends. Tighten two connectors (B) in the openings provided on the inside of the front (9) .
Nachttafel met lade
Nachttisch mit Schublade
Chevet avec tiroir
Bedside table with drawer
Quax
Quax
First dreams
First dreams
®
®
First steps
First steps
31
