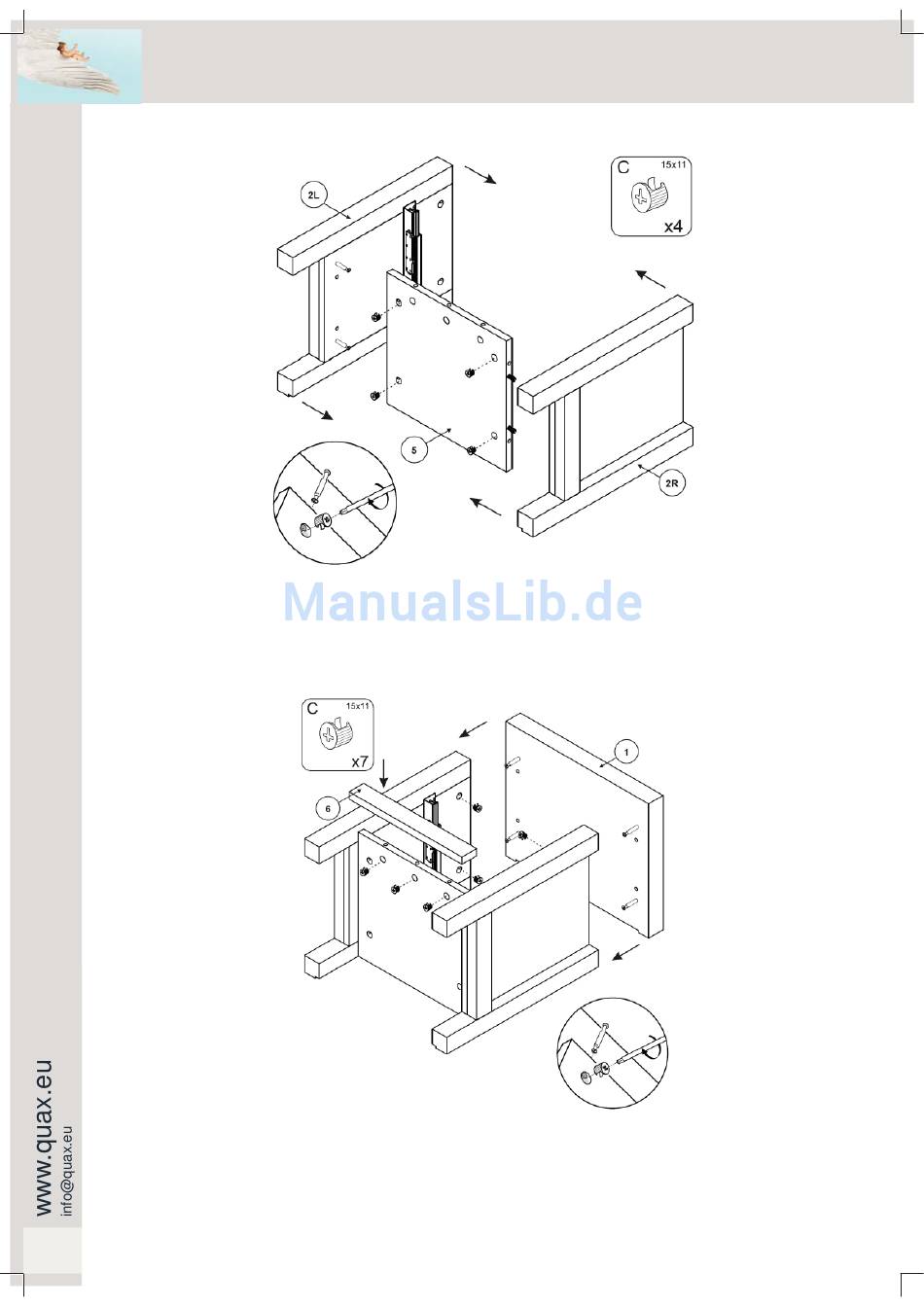

Step 3 : Use the parts of step 1 and 2 and four eccentrics C
Push the eccentrics (C) into the provided drillings at the underside of the bottom. Turn a side panel on its side.
Push the bottom over the connectors of the side and tighten the eccentrics. Now push the other side with its con-
nectors into the holes in the bottom and tighten the eccentrics.
Step 4 : Use the parts of step 1 and 3 and seven eccentrics C
Insert four eccentrics (C) into the provided drillings at the top of the sides. Push the top with its connectors into
the holes and over the wooden dowels of the sides and tighten the eccentrics. Insert three eccentrics (C) in the
holes at the underside of the bottom. Push the cornice with its connectors into the holes in the bottom and tighten
the eccentrics.
30
54 05 10xx Kinderbed met verstelbare bodem
01 01 43XX
KInderbett mit verstelbarer Boden
Nachttafel met lade
Lit enfant avec fond réglable
Nachttisch mit Schublade
Babybed with adjustable bottom
Chevet avec tiroir
Bedside table with drawer
