4. Assembling the bedside table

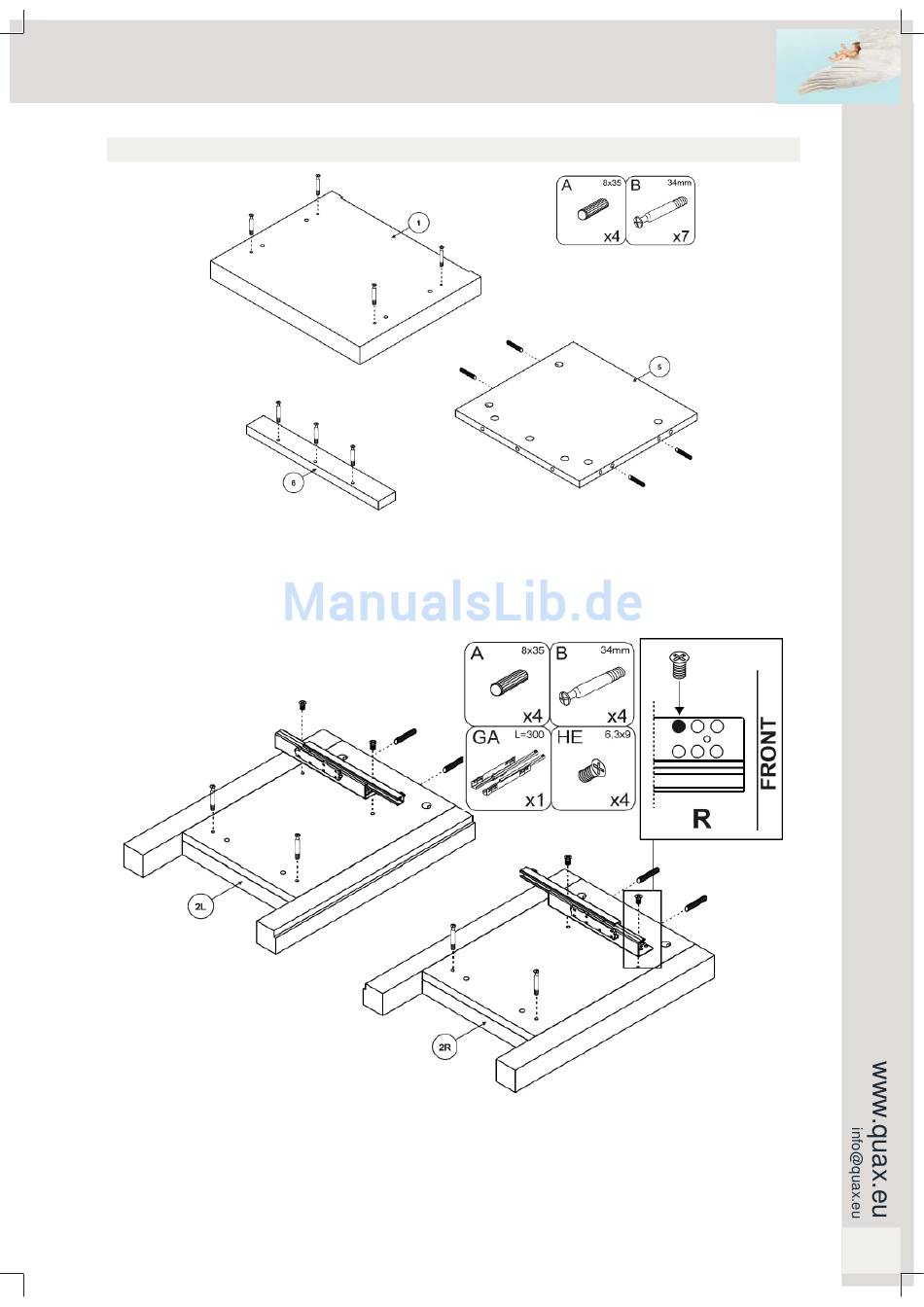

Step 1 : Use the top 1, seven connectors B, four wooden dowels A, the bottom 5 and the cornice 6
Tighten four connectors (B) into the provided drillings at the bottom of top (1). Push two wooden dowels
(A) in the holes provided at the ends of the bottom (5). Tighten three connectors (B) in the drillings on the
inside of the cornice (6).
Step 2 : Use both sides 2R and 2L, the sliders GA, four bolts HE, four wooden dowels A and four connec-
tors B
Position the sliders (GA) on the provided drillings of the side panels (2R and 2L). Fix each slider with two
bolts (HE) according to the diagram in
a side. Push two wooden dowels (A) into the holes provided at the top of a side.
Nachttafel met lade
Nachttisch mit Schublade
detail. Tighten two connectors (B) into the holes at the bottom of
Chevet avec tiroir
Bedside table with drawer
