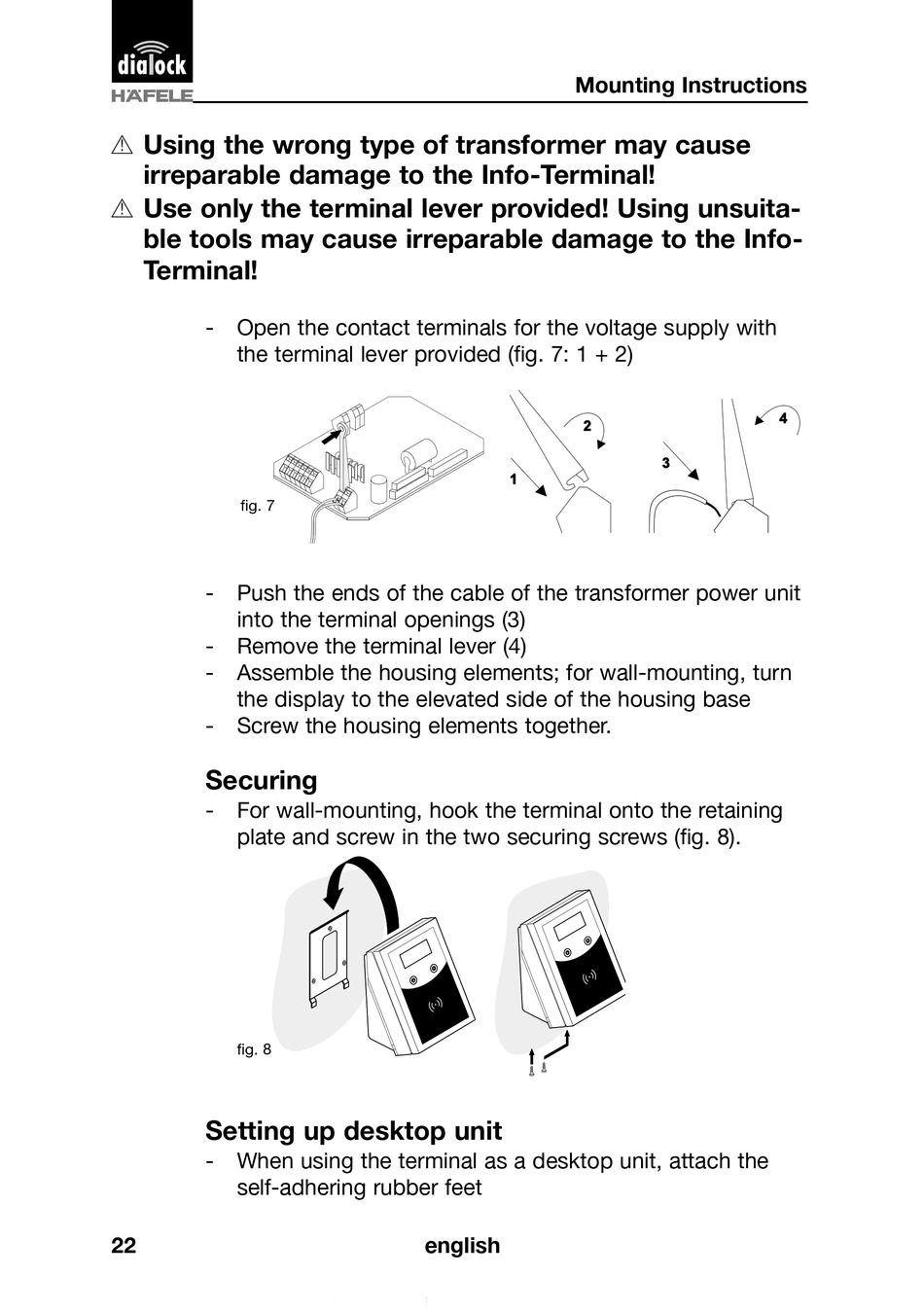

A Using the wrong type of transformer may cause
irreparable damage to the Info-Terminal!
A Use only the terminal lever provided! Using unsuita-
ble tools may cause irreparable damage to the Info-
Terminal!
- Open the contact terminals for the voltage supply with
the terminal lever provided (fig. 7: 1 + 2)
fig. 7
Abb. 7
- Push the ends of the cable of the transformer power unit
into the terminal openings (3)
- Remove the terminal lever (4)
- Assemble the housing elements; for wall-mounting, turn
the display to the elevated side of the housing base
- Screw the housing elements together.
Securing
- For wall-mounting, hook the terminal onto the retaining
plate and screw in the two securing screws (fig. 8).
fig. 8
Abb. 8
Setting up desktop unit
- When using the terminal as a desktop unit, attach the
self-adhering rubber feet
22
Mounting Instructions
2
1
english
4
3
