Installation

Wall-mounting
Attaching retainer plate
Fix the retaining plate for wall-mounting at a suitable height
on a wall. The location should be chosen for maximum con-
venience and ease of access.

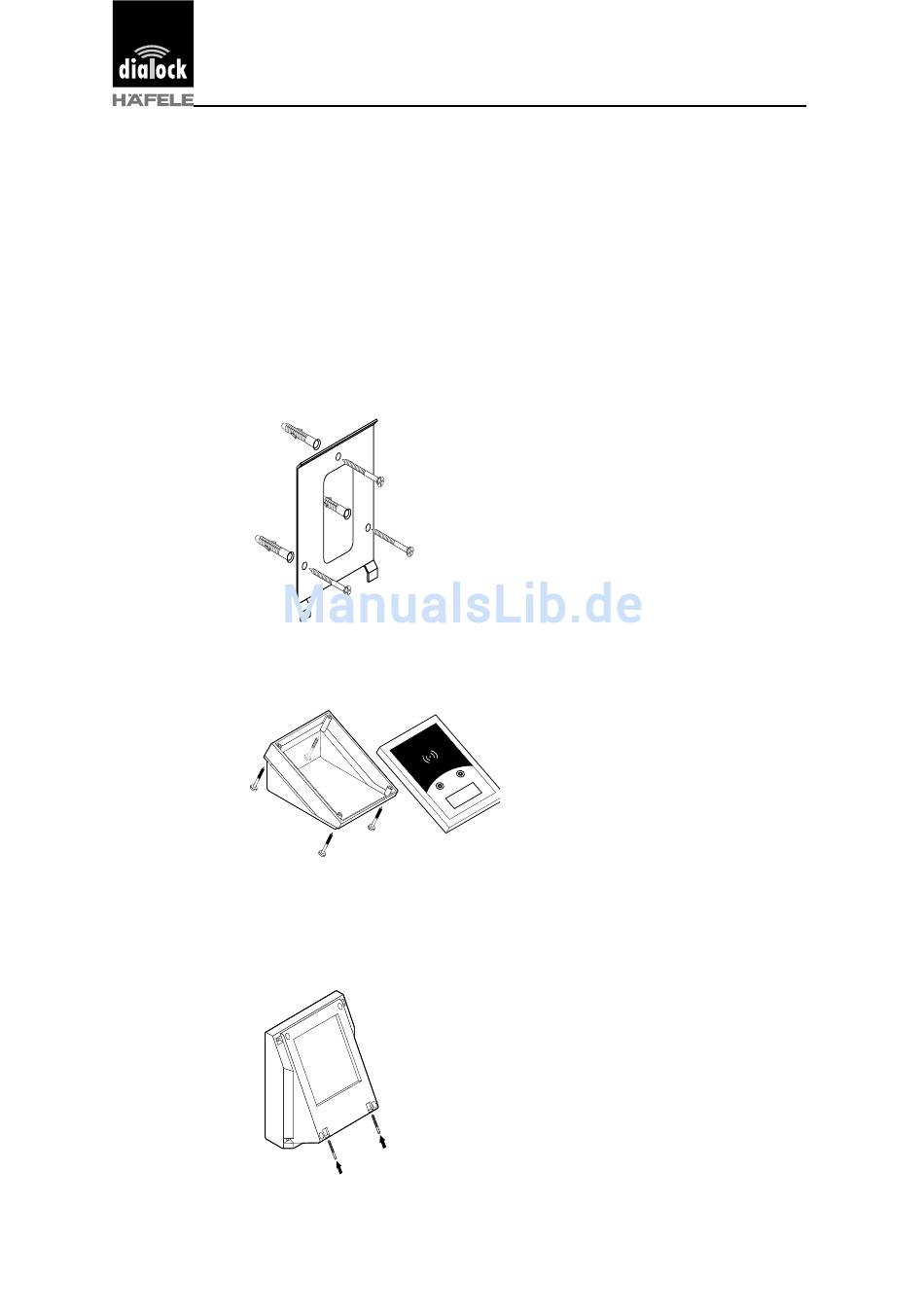

- Drill three holes in the wall to attach the retaining plate
and insert the fixings for the screws (fig. 2)
fig. 2
Abb. 2
- Screw the retaining plate into position
- Open the Info Terminal (fig. 3)
fig. 3
Abb. 3
- Drill holes (ø 2 mm) for the screws in the housing (fig. 4)
fig. 4 Abb. 4
