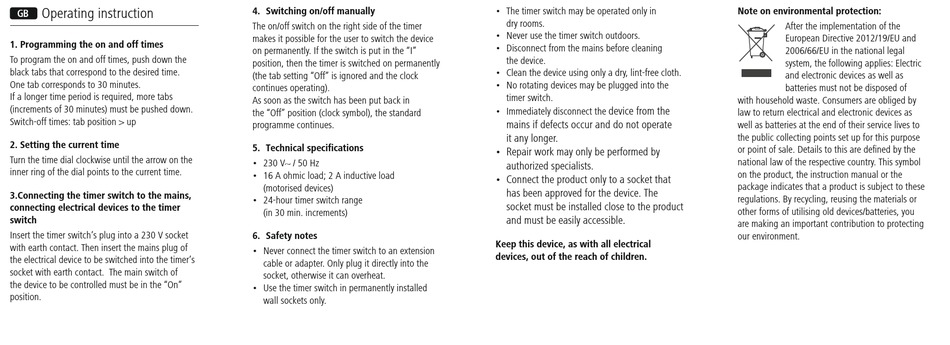

Operating instruction
G
1. Programming the on and off times
To program the on and off times, push down the
black tabs that correspond to the desired time.
One tab corresponds to 30 minutes.
If a longer time period is required, more tabs
(increments of 30 minutes) must be pushed down.
Switch-off times: tab position > up
2. Setting the current time
Turn the time dial clockwise until the arrow on the
inner ring of the dial points to the current time.
3.Connecting the timer switch to the mains,
connecting electrical devices to the timer
switch
Insert the timer switch's plug into a 230 V socket
with earth contact. Then insert the mains plug of
the electrical device to be switched into the timer's
socket with earth contact. The main switch of
the device to be controlled must be in the "On"
position.
4. Switching on/off manually
The on/off switch on the right side of the timer
makes it possible for the user to switch the device
on permanently. If the switch is put in the "I"
position, then the timer is switched on permanently
(the tab setting "Off" is ignored and the clock
continues operating).
As soon as the switch has been put back in
the "Off" position (clock symbol), the standard
programme continues.
5. Technical specifications
• 230 V~ / 50 Hz
• 16 A ohmic load; 2 A inductive load
(motorised devices)
• 24-hour timer switch range
(in 30 min. increments)
6. Safety notes
• Never connect the timer switch to an extension
cable or adapter. Only plug it directly into the
socket, otherwise it can overheat.
• Use the timer switch in permanently installed
wall sockets only.
• The timer switch may be operated only in
dry rooms.
• Never use the timer switch outdoors.
• Disconnect from the mains before cleaning
the device.
• Clean the device using only a dry, lint-free cloth.
• No rotating devices may be plugged into the
timer switch.
device from the
• Immediately disconnect the
mains if defects occur and do not operate
it any longer.
• Repair work may only be performed by
authorized specialists.
• Connect the product only to a socket that
has been approved for the device. The
socket must be installed close to the product
and must be easily accessible.
Keep this device, as with all electrical
devices, out of the reach of children.
Note on environmental protection:
After the implementation of the
European Directive 2012/19/EU and
2006/66/EU in the national legal
system, the following applies: Electric
and electronic devices as well as
batteries must not be disposed of
with household waste. Consumers are obliged by
law to return electrical and electronic devices as
well as batteries at the end of their service lives to
the public collecting points set up for this purpose
or point of sale. Details to this are defined by the
national law of the respective country. This symbol
on the product, the instruction manual or the
package indicates that a product is subject to these
regulations. By recycling, reusing the materials or
other forms of utilising old devices/batteries, you
are making an important contribution to protecting
our environment.
