Using the vernier calliper

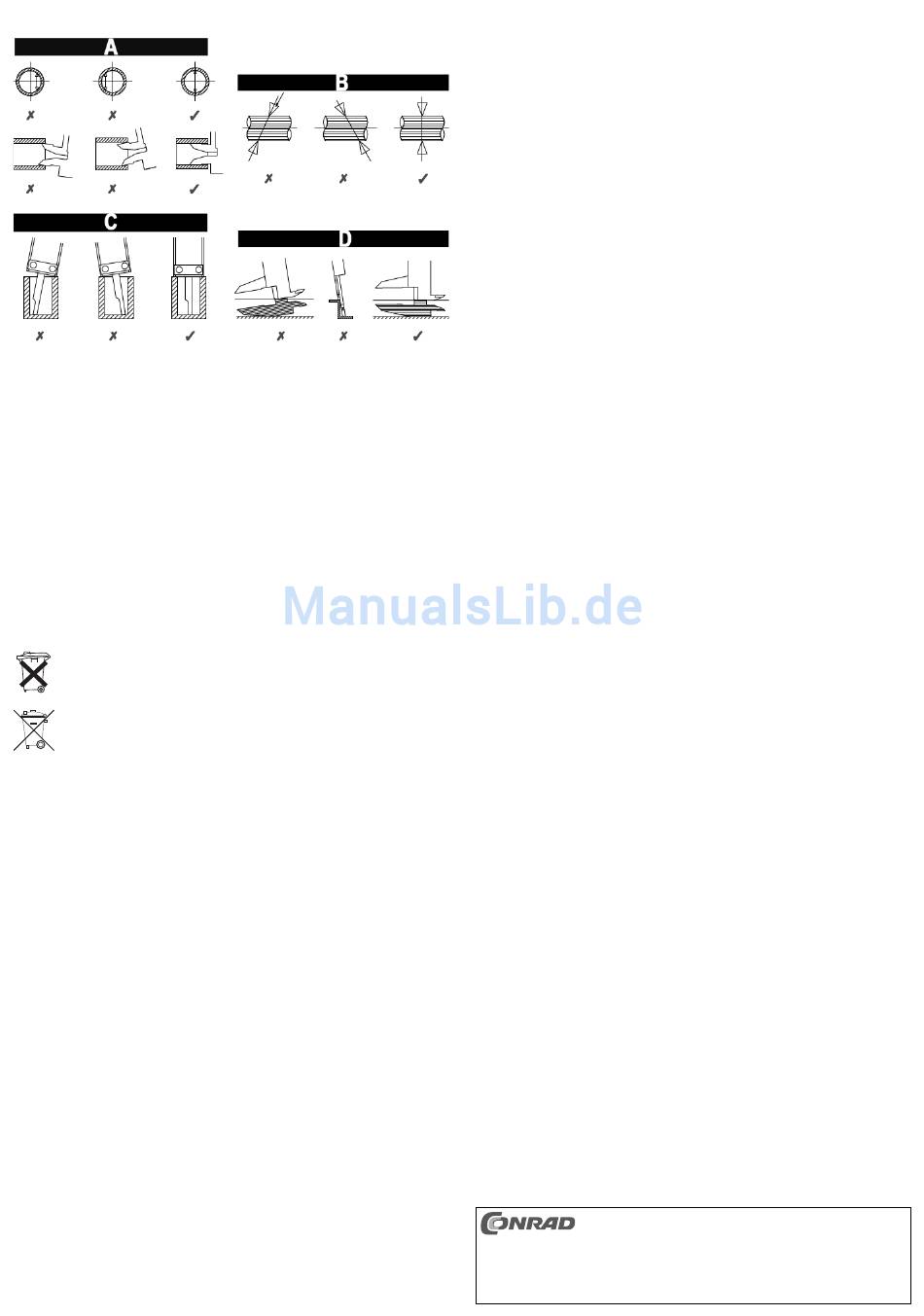

Figure A shows the incorrect and correct performance of an inner measuring.
Figure B shows the incorrect and correct performance of an outer measuring.
Figure C shows the incorrect and correct performance of a depth measuring.
Figure D shows the incorrect and correct performance of an indirect measuring.
Maintenance and Cleaning
Use a clean, dry, soft cloth for cleaning.
Never use aggressive cleaning agents, these can damage the housing as well as the display.
Disposal
As the end user, you are required by law (Battery Ordinance) to return all used
batteries/rechargeable batteries; disposal of them in the household waste is prohibited!
Contaminated batteries/rechargeable batteries are labelled with these symbols to
indicate that disposal in the domestic waste is forbidden. The designations for the
heavy metals involved are: Cd = Cadmium, Hg = Mercury, Pb = Lead.
You can return used batteries/rechargeable batteries and button cells free of
charge to any authorised disposal station in your area, to our stores or to any oth-
er store where batteries/storage batteries/button cells are sold.
You thus fulfil the legal requirements and make your contribution to protecting the environment!
Technical Data
a) Vernier calliper
Power supply:
Measuring range:
Resolution:
DIN862
b) micro meter
Measuring range:
Gradation:
DIN863
c) Three-cornered tear
Angle:
DIN875
Dimensions:
d) steel scale
Length:
Gradation:
1.55 V via button battery (type: SR44 or SR44W)
0 to 150 mm/0 to 6"
0.01 mm/0.0005"
0 to 25 mm
0.01 mm
90°
approx. 100 x 70 mm
0 to 150 mm
0.5 mm, 1 mm, 1/32", 1/64", 1/10", 1/20",1/50"
These operating instructions are a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240
Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or
the capture in electronic data processing systems require the prior written approval by the editor.
Reprinting, also in part, is prohibited.
These operating instructions represent the technical status at the time of printing. Changes in
technology and equipment reserved.
© Copyright 2009 by Conrad Electronic SE.
