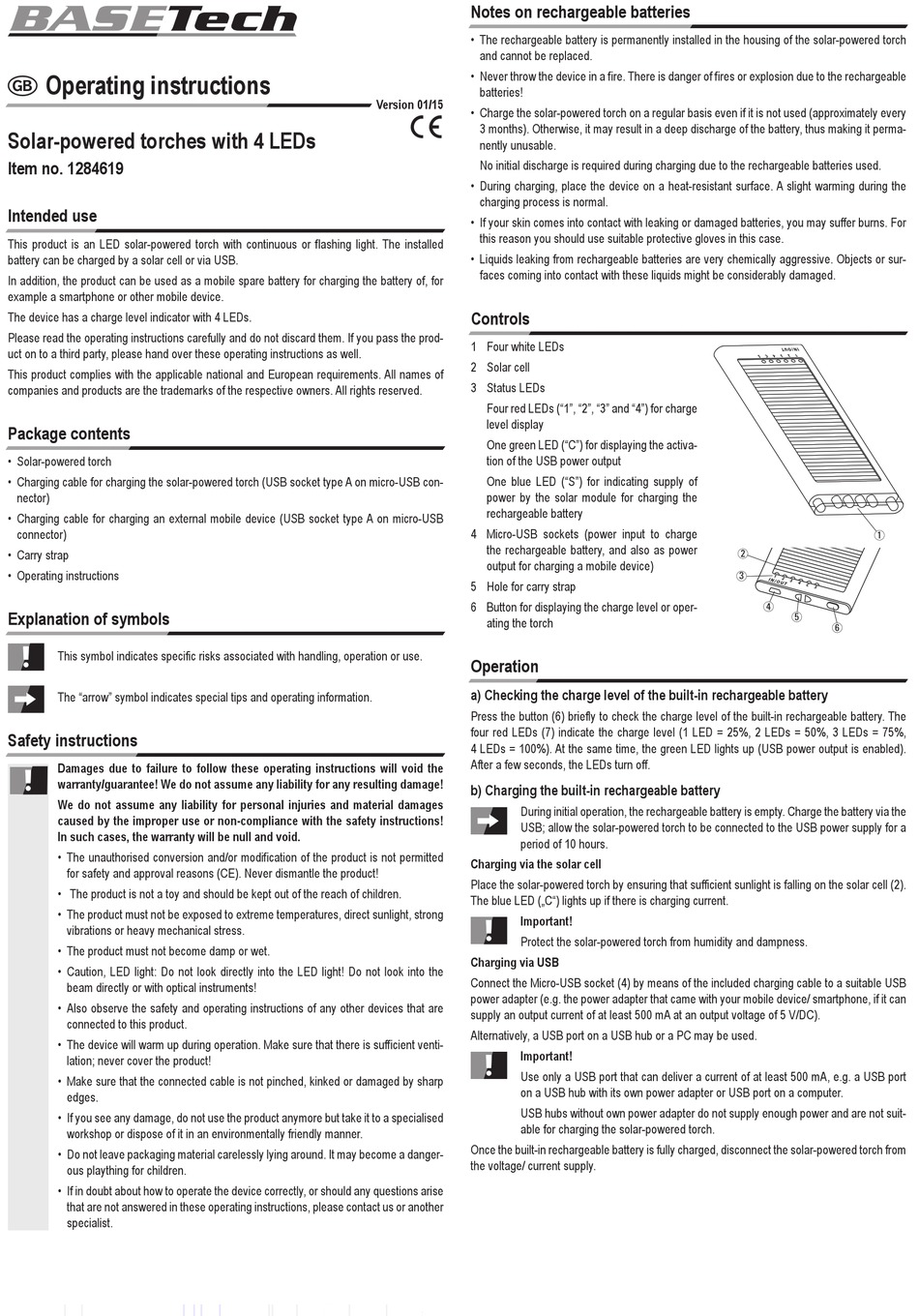

Operating instructions
Solar-powered torches with 4 LEDs
Item no. 1284619
Intended use
This product is an LED solar-powered torch with continuous or flashing light. The installed
battery can be charged by a solar cell or via USB.
In addition, the product can be used as a mobile spare battery for charging the battery of, for
example a smartphone or other mobile device.
The device has a charge level indicator with 4 LEDs.
Please read the operating instructions carefully and do not discard them. If you pass the prod-
uct on to a third party, please hand over these operating instructions as well.
This product complies with the applicable national and European requirements. All names of
companies and products are the trademarks of the respective owners. All rights reserved.
Package contents
• Solar-powered torch
• Charging cable for charging the solar-powered torch (USB socket type A on micro-USB con-
nector)
• Charging cable for charging an external mobile device (USB socket type A on micro-USB
connector)
• Carry strap
• Operating instructions
Explanation of symbols
This symbol indicates specific risks associated with handling, operation or use.
The "arrow" symbol indicates special tips and operating information.
Safety instructions
Damages due to failure to follow these operating instructions will void the
warranty/guarantee! We do not assume any liability for any resulting damage!
We do not assume any liability for personal injuries and material damages
caused by the improper use or non-compliance with the safety instructions!
In such cases, the warranty will be null and void.
• The unauthorised conversion and/or modification of the product is not permitted
for safety and approval reasons (CE). Never dismantle the product!
• The product is not a toy and should be kept out of the reach of children.
• The product must not be exposed to extreme temperatures, direct sunlight, strong
vibrations or heavy mechanical stress.
• The product must not become damp or wet.
• Caution, LED light: Do not look directly into the LED light! Do not look into the
beam directly or with optical instruments!
• Also observe the safety and operating instructions of any other devices that are
connected to this product.
• The device will warm up during operation. Make sure that there is sufficient venti-
lation; never cover the product!
• Make sure that the connected cable is not pinched, kinked or damaged by sharp
edges.
• If you see any damage, do not use the product anymore but take it to a specialised
workshop or dispose of it in an environmentally friendly manner.
• Do not leave packaging material carelessly lying around. It may become a danger-
ous plaything for children.
• If in doubt about how to operate the device correctly, or should any questions arise
that are not answered in these operating instructions, please contact us or another
specialist.
Notes on rechargeable batteries
• The rechargeable battery is permanently installed in the housing of the solar-powered torch
and cannot be replaced.
• Never throw the device in a fire. There is danger of fires or explosion due to the rechargeable
batteries!
Version 01/15
• Charge the solar-powered torch on a regular basis even if it is not used (approximately every
°
3 months). Otherwise, it may result in a deep discharge of the battery, thus making it perma-
nently unusable.
No initial discharge is required during charging due to the rechargeable batteries used.
• During charging, place the device on a heat-resistant surface. A slight warming during the
charging process is normal.
• If your skin comes into contact with leaking or damaged batteries, you may suffer burns. For
this reason you should use suitable protective gloves in this case.
• Liquids leaking from rechargeable batteries are very chemically aggressive. Objects or sur-
faces coming into contact with these liquids might be considerably damaged.
Controls
1 Four white LEDs
2 Solar cell
3 Status LEDs
Four red LEDs ("1", "2", "3" and "4") for charge
level display
One green LED ("C") for displaying the activa-
tion of the USB power output
One blue LED ("S") for indicating supply of
power by the solar module for charging the
rechargeable battery
4 Micro-USB sockets (power input to charge
the rechargeable battery, and also as power
output for charging a mobile device)
5 Hole for carry strap
6 Button for displaying the charge level or oper-
ating the torch
Operation
a) Checking the charge level of the built-in rechargeable battery
Press the button (6) briefly to check the charge level of the built-in rechargeable battery. The
four red LEDs (7) indicate the charge level (1 LED = 25%, 2 LEDs = 50%, 3 LEDs = 75%,
4 LEDs = 100%). At the same time, the green LED lights up (USB power output is enabled).
After a few seconds, the LEDs turn off.
b) Charging the built-in rechargeable battery
During initial operation, the rechargeable battery is empty. Charge the battery via the
USB; allow the solar-powered torch to be connected to the USB power supply for a
period of 10 hours.
Charging via the solar cell
Place the solar-powered torch by ensuring that sufficient sunlight is falling on the solar cell (2).
The blue LED („C") lights up if there is charging current.
Important!
Protect the solar-powered torch from humidity and dampness.
Charging via USB
Connect the Micro-USB socket (4) by means of the included charging cable to a suitable USB
power adapter (e.g. the power adapter that came with your mobile device/ smartphone, if it can
supply an output current of at least 500 mA at an output voltage of 5 V/DC).
Alternatively, a USB port on a USB hub or a PC may be used.
Important!
Use only a USB port that can deliver a current of at least 500 mA, e.g. a USB port
on a USB hub with its own power adapter or USB port on a computer.
USB hubs without own power adapter do not supply enough power and are not suit-
able for charging the solar-powered torch.
Once the built-in rechargeable battery is fully charged, disconnect the solar-powered torch from
the voltage/ current supply.
1
2
3
4
5
6
