Part 4. Functions and operation:

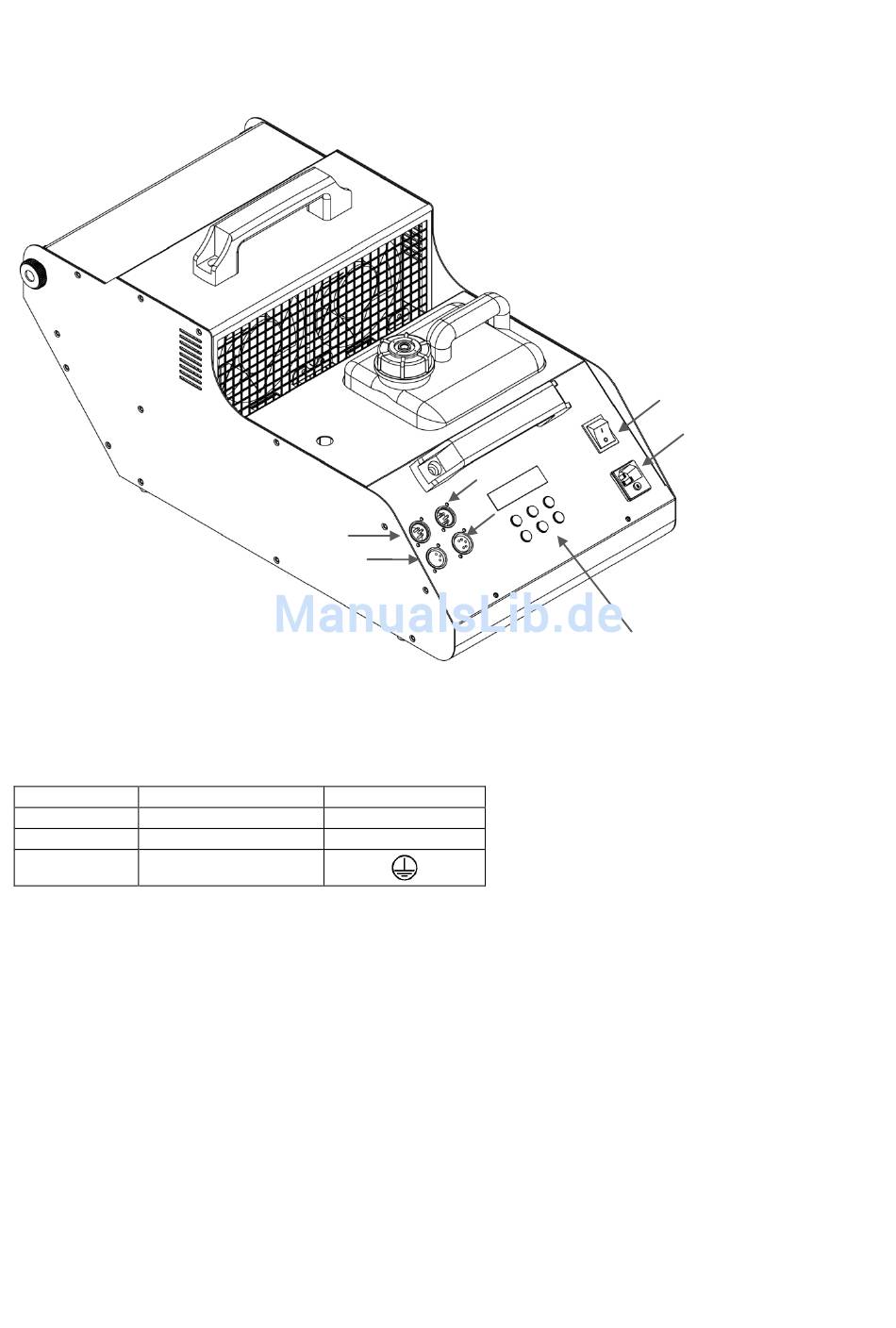

4.1 Housing Back:

1.
POWER IN: IEC current input socket with fuse holder for F6,3AL230V fuse.
The assignment of the connection leads is as follows:
Wire
Brown Outer conductor
Blue Neutral conductor
Yellow/Green Protective conductor
The protective conductor must be connected!
IMPORTANT NOTE: Replace the fuse only with a fuse of the same type and with the same values (imprint on the
device). If the fuse is triggered repeatedly, please contact an authorized service center.
2. Power switch:
switches off unipolar, so the mains plug must be disconnected before the housing is opened to avoid electric
shock.
3. DMX Out:
3-pin female XLR connector for forwarding the DMX control signal
4. DMX IN:
3-pin male XLR connector for connecting a DMX control device (e.g., DMX mixer)).
5. DMX Out:
3-pin female XLR connector for forwarding the DMX control signal
6. DMX IN:
3-pin male XLR connector for connecting a DMX control device (e.g., DMX mixer)).
7. On-Board Menu:
3.
Pin
ON: Indicates the power is on. OFF: Indicates that the unit is switched off. The mains switch
Displays the operating mode and the value of individual functions.
5.
6.
4.
International
L
N
15
2.
1.
7.
