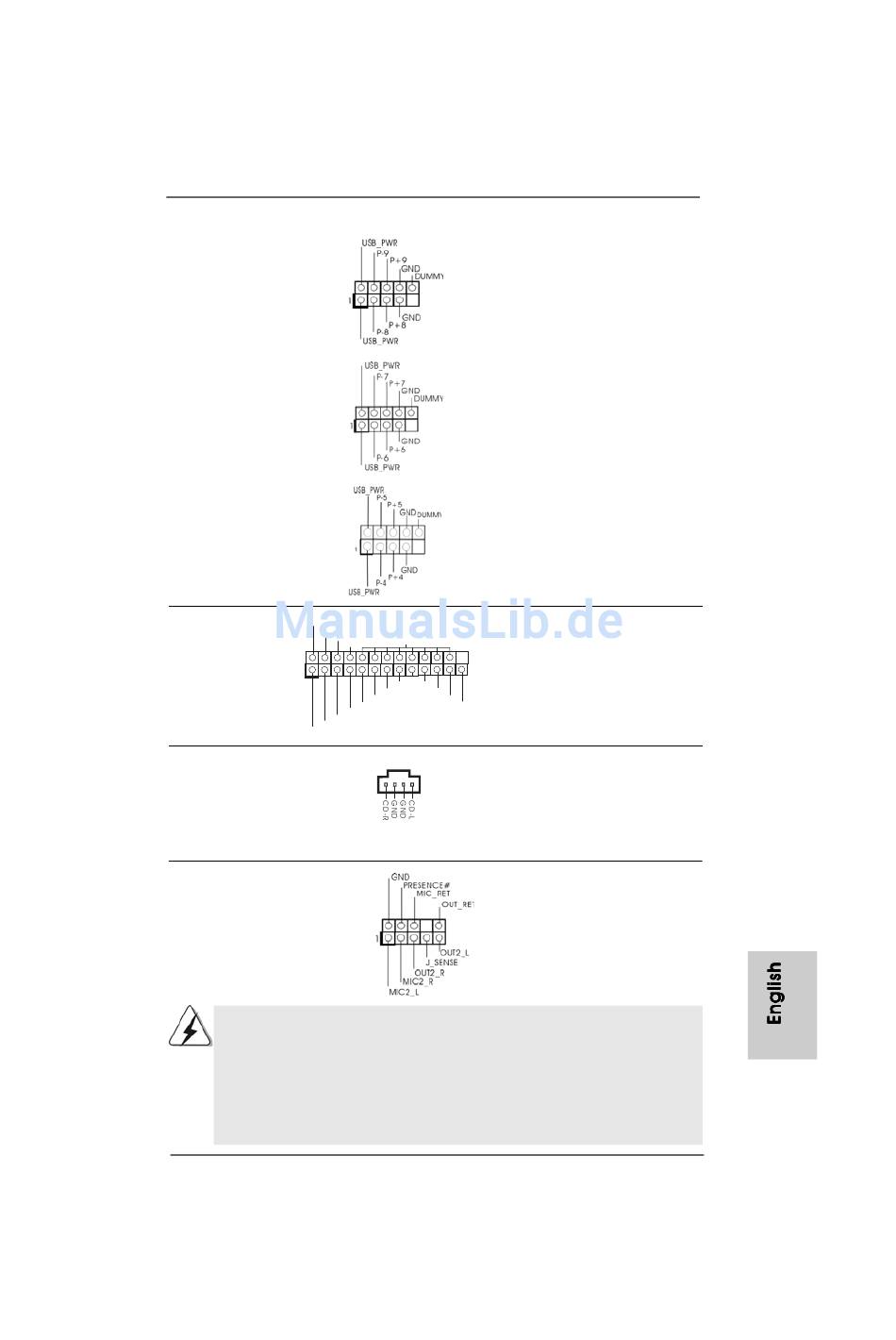

ASROCK N68C-GS UCC Bedienungsanleitung Seite 19

USB 2.0 Headers
(9-pin USB8_9)
(see p.2 No. 15)
(9-pin USB6_7)
(see p.2 No. 16)
(9-pin USB4_5)
(see p.2 No. 17)
Print Port Header
AFD#
ERROR#
PINIT#
(25-pin LPT1)
(see p.2 No. 22)
1
SPD1
SPD0
STB#
Internal Audio Connectors
(4-pin CD1)
(CD1: see p.2 No. 25)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.2, No. 26)
1. High Definition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC'97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
ASRock N68C-GS UCC / N68C-S UCC
Besides four default USB 2.0
ports on the I/O panel, there are
three USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
This is an interface for print
port cable that allows
GND
SLIN#
convenient connection of printer
SPD7
devices.
SPD6
ACK#
SPD5 BUSY
SPD4 PE
SPD3
SLCT
SPD2
This connector allows you
to receive stereo audio input
CD1
from sound sources such as
a CD-ROM, DVD-ROM, TV
tuner card, or MPEG card.
This is an interface for the front
panel audio cable that allows
convenient connection and
control of audio devices.
Motherboard
1 9 1 9 1 9
