Warning ! Not suitable for children under 36 month. Small parts. Choking hazard ! The packaging
must be saved, because it contains important information. Changes to the colour and technical
modifications reserved.
Product Features: Flight time: ca. 9-10 minutes (batteries/accumulators are especially efficient
after several charge and de­charge cycles) .Reach of remote control: ca. 3 m. Model power
supply: DC 3.7 V/ 0.37Wh / 1 x 3.7 V rechargeable Li­Ion battery (integrated) capacity: 90mAh:
Transmitter: DC DC V / 2 x 1.5V "AA" (batteries not included)

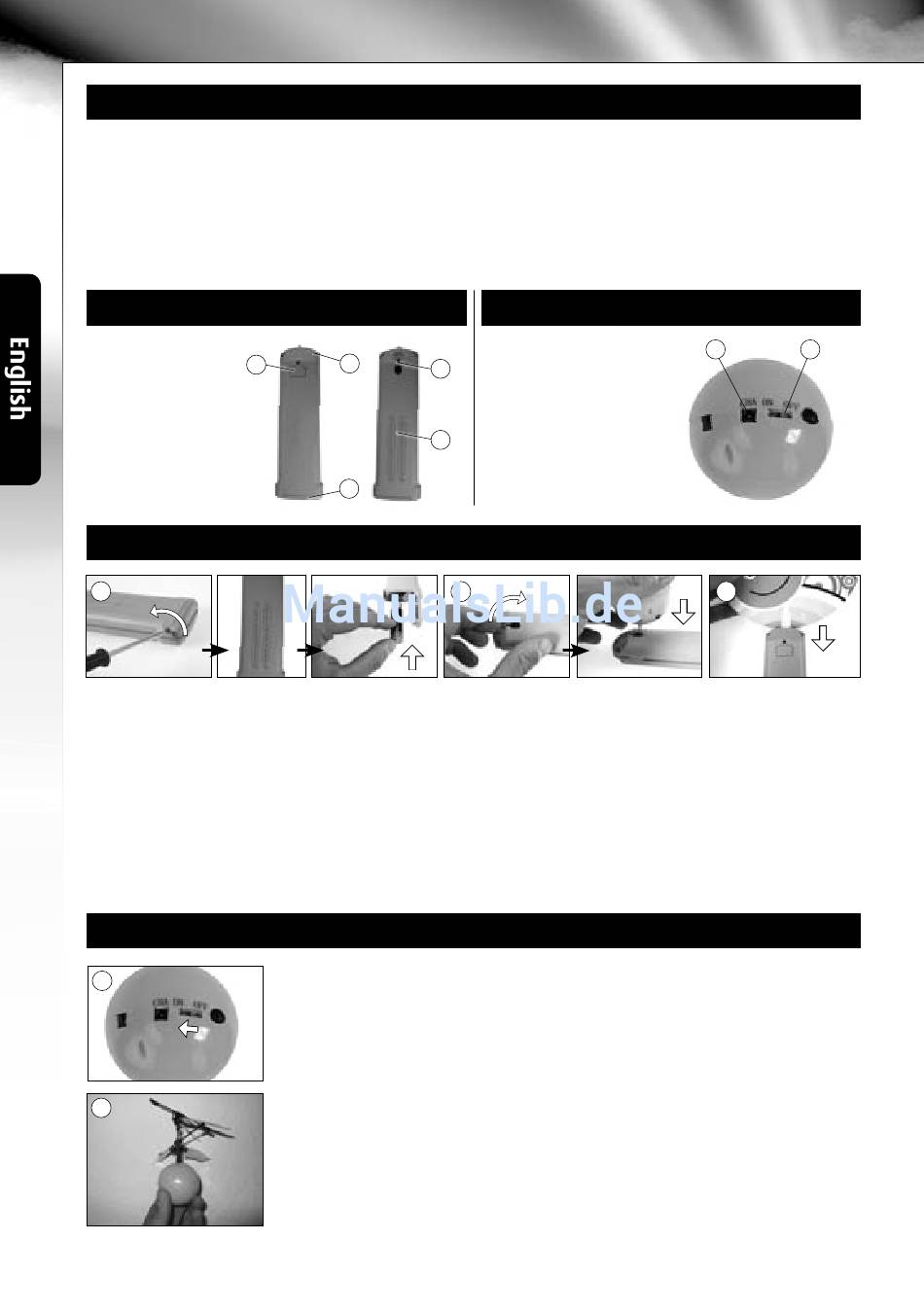

remote controL

1. ON/OFF switch
2. Battery compartment
cover
3. Template holder
4. Charging cable
5. Polarity diagram
1.
1. Unscrew and open the battery compartment cover on the remote control. Insert four batteries with
the correct polarity. Close the battery compartment cover.
2. Carefully take out the charging cable. Plug in the charging cable on the underside of the FlyBall.
The plug must be gently inserted into the charging socket – DO NOT USE FORCE. If the plug is not
correctly inserted into the charging socket, the FlyBall may become damaged and, under certain
circumstances, cause injury. The LED on the ball turns red as soon as charging begins. The FlyBall is
charged after approx. 35–45 minutes. The charging light goes out once charging is complete.
Carefully separate the charging cable from the ball after charging. The ball now has power for
approx. 6–8 minutes.
3. Carefully slide the template onto the designated holder on the transmitter. This really helps to
control the ball.
1.
2.
4

SAFety guideLineS

3.
1.
2.
PrePArAtion

oPerAtion

1. Set the ON/OFF switch on the FlyBall to the "ON" position.
2. Now hold the ball in your hand so that the rotor blades are pointing
upwards. Then press the ON/OFF switch on the remote control once (fig.
2.) The rotor blades will start immediately and you can let the ball go.
There is a proximity sensor located on the underside of the ball. This
detects the distance to the ground and automatically changes into
second gear. The model will climb approx. one metre on its own and
then drop slightly until the proximity sensor detects the ground again
and automatically climbs approx. one metre.
3. As soon as the model no longer really climbs, the battery is weak and
should be charged.
Attention: Never try to grab the FlyBall while it is in the air. As soon as
you no longer have the ball under control or wish to switch it off, press the
ON/OFF switch on the remote control for a second time and the rotor
blades will switch off immediately. Now set the ON/OFF switch on the
FlyBall to the "OFF" position.
4.
1. Charging cable
connection
2. ON/OFF switch
5.
2.
FLybALL
1.
3.
2.
