TFA_No. 60.3509_Anl_D_GB 13.02.2012

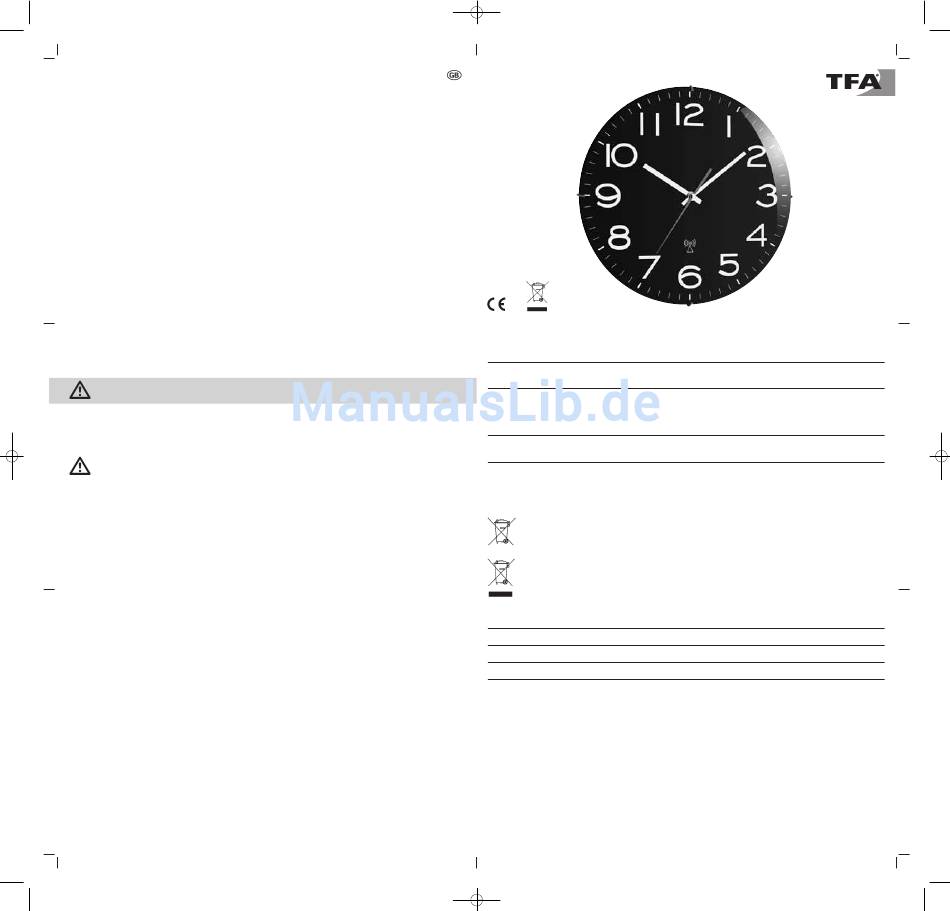

DESIGN – Radio controlled wall clock
Thank you for choosing this instrument from TFA.
1. Before you use it
• Please be sure to read the instruction manual carefully. This information will help you to familiarise your-
self with your new device, learn all of its functions and parts, find out important details about its first use
and how to operate it, and get advice in the event of faults.
• Following the instruction manual for use will prevent damage to the device and loss of your statutory
rights arising from defects due to incorrect use. We shall not be liable for any damage occurring as a
result of not following these instructions.
• Please take particular note of the safety advice!
• Please look after this manual for future reference!
2. Scope of supply
• Radio controlled wall clock
• Instruction manual
3. Field of operation and all of the benefits of your new instrument at a glance
• Highest precision radio-controlled clock
• Large easy to read dial
• Flat housing
• Glass cover
• Second hand
• Ideal for home, office, waiting room, lobby or entrance hall and as a gift
4. For your safety
• The product is exclusively intended for the field of application described above. The product should only
be used as described within these instructions.
• Unauthorised repairs, modifications or changes to the product are prohibited.
• The product is not be used for medical purpose or for public information, but is intended only for home
use.
Caution!
Risk of injury:
• Keep this instrument and the battery out of reach of children.
• Batteries must not be thrown into the fire, short-circuited, taken apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage
caused by a leaking battery. Wear chemical-resistant protective gloves and glasses when handling leaked
batteries.
Important information on product safety!
• Do not place the instrument near extreme temperatures, vibration or shock.
• Protect from moisture.
5. Note for radio-controlled Time DCF
The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technis-
che Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The
time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and
has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and
converts it to show the precise time. Changeover from summer time or winter time is automatic. The quality
of the reception depends mainly on the geographic location. Normally there should be no reception prob-
lems within a 1,500 km radius around Frankfurt.
Please take note of the following:
• Recommended distance to any interfering sources like computer monitors or TV sets is a minimum of 1.5 -
2 metres.
• Within ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In
extreme cases, please place the unit close to a window.
• During night-time, the atmospheric disturbances are usually less severe and reception is possible in most
cases. A single daily reception is adequate to keep the accuracy deviation below 1 second.
6. Getting started
• Insert 1 x AA size 1.5 V alkaline battery as indicated by the polarity.
• The unit is now ready to use.
• After the initial setup, the clock shows 12 o'clock and is trying to receive the radio signal for 5 minutes.
When the time code is received, the radio-controlled time will be shown. If the reception fails, scanning
stops and will be repeated again every solid hour. The reception will be tried 12 times.
• Manual initialization can be helpful. Press WAVE or RESET button with a pin and the clock will scan the
DCF frequency signal.
7. Manual setting of clock
• In case the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance,
etc.) the time can be set manually. The clock will then work as a normal quartz clock.
• Press the SET button with a pin for manual time setting.
• The manually set time will be overwritten by the DCF time when the signal is received successfully.
8. Care and maintenance
• Clean it with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the battery if you do not use the product for a lengthy period.
• Keep the instrument in a dry place.
16:52 Uhr Seite 2
Bedienungsanleitung
Instruction manual
ROHS

9. Troubleshooting

Problems Solution
➜ Ensure battery polarity is correct
No pointer movement
➜ Change battery
➜ Press WAVE button
No DCF reception
➜ Change location (interference!)
➜ Wait for attempted reception during the night
➜ Manual time setting
➜ Press RESET button
Incorrect display
➜ Change battery
If your device fails to work despite these measures contact the supplier from whom you purchased it.
10. Waste disposal
This product has been manufactured using high-grade materials and components which can be recycled and
reused.
Never dispose empty batteries and rechargeable batteries in household waste.
As a consumer, you are legally required to take them to your retail store or to appropriate col-
lection sites depending to national or local regulations in order to protect the environment.
The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead
This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment
Directive (WEEE).
Please do not dispose of this instrument in household waste. The user is obligated to take end-
of-life devices to a designated collection point for the disposal of electrical and electronic equip-
ment, in order to ensure environmentally-compatible disposal.
11. Specifications
Power consumption: Battery 1 x 1,5 V AA (not included)
Housing dimension: Ø 307 x 45 mm
Weight: 616 g
TFA Dostmann GmbH & Co. KG, Zum Ottersberg 12, D-97877 Wertheim.
No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of
going to print and may change without prior notice.

DECLARATION OF CONFORMITY

Herewith we declare, that this wireless transmission device does comply with the essentials requirements of R&TTE Directive
1999/5/EC.
A copy of the signed and dated Declaration of Conformity is available on request via info@tfa-dostmann.de.
www.tfa-dostmann.de
Kat. Nr. 60.3509
02/12
