Technical Specification - Clearaudio BALANCED REFERENCE PHONOSTAGE Bedienungsanleitung

Send / ship the equipment always and only in the original packing ! Only in the original packing
clearaudio can provide the warranty.

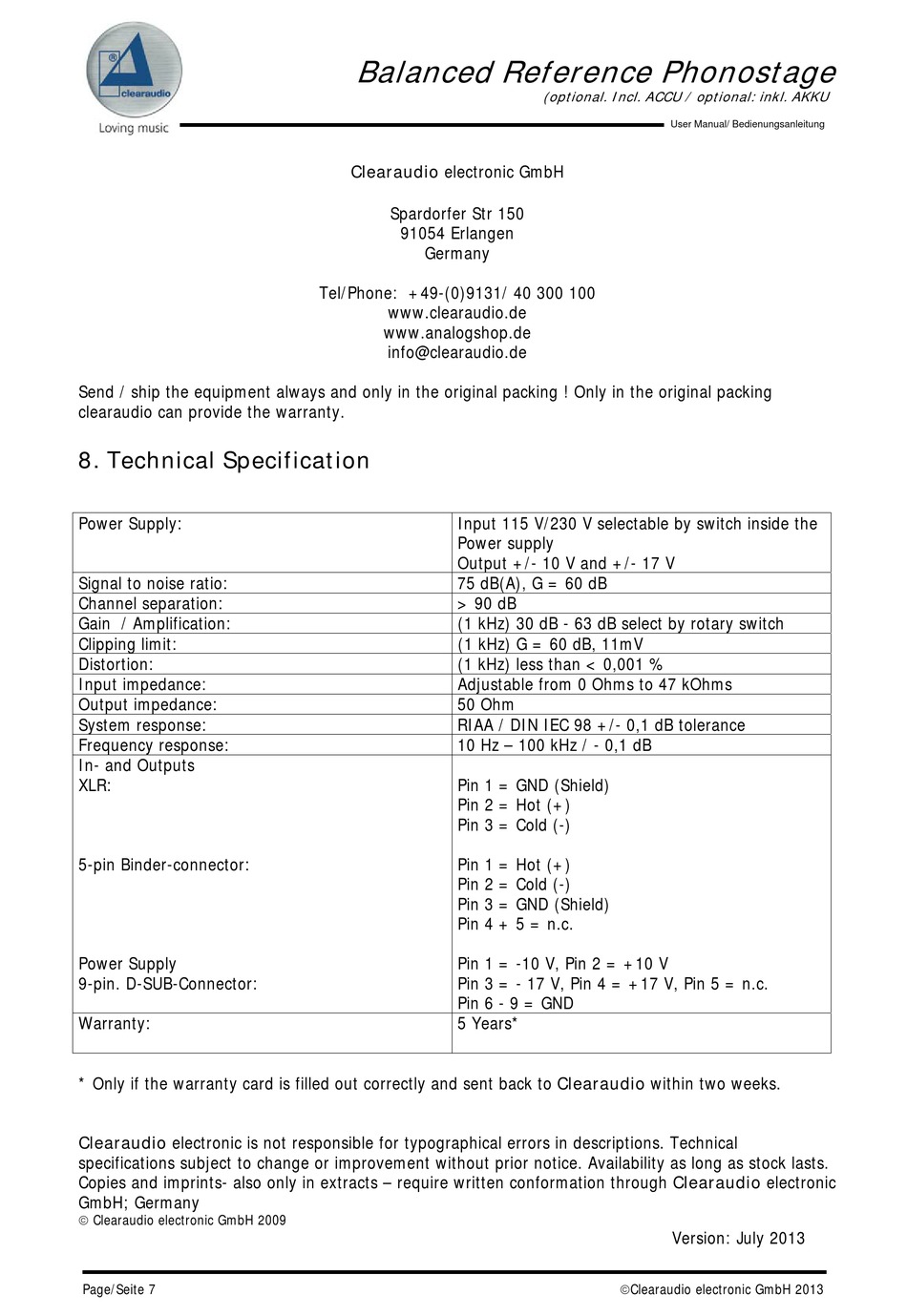

8. Technical Specification

Power Supply:
Signal to noise ratio:
Channel separation:
Gain / Amplification:
Clipping limit:
Distortion:
Input impedance:
Output impedance:
System response:
Frequency response:
In- and Outputs
XLR:
5-pin Binder-connector:
Power Supply
9-pin. D-SUB-Connector:
Warranty:
* Only if the warranty card is filled out correctly and sent back to Clearaudio within two weeks.
Clearaudio electronic is not responsible for typographical errors in descriptions. Technical
specifications subject to change or improvement without prior notice. Availability as long as stock lasts.
Copies and imprints- also only in extracts – require written conformation through Clearaudio electronic
GmbH; Germany
 Clearaudio electronic GmbH 2009
Page/Seite 7
Balanced Reference Phonostage
Clearaudio electronic GmbH
Spardorfer Str 150
91054 Erlangen
Germany
Tel/Phone: +49-(0)9131/ 40 300 100
www.clearaudio.de
www.analogshop.de
info@clearaudio.de
Input 115 V/230 V selectable by switch inside the
Power supply
Output +/- 10 V and +/- 17 V
75 dB(A), G = 60 dB
> 90 dB
(1 kHz) 30 dB - 63 dB select by rotary switch
(1 kHz) G = 60 dB, 11mV
(1 kHz) less than < 0,001 %
Adjustable from 0 Ohms to 47 kOhms
50 Ohm
RIAA / DIN IEC 98 +/- 0,1 dB tolerance
10 Hz – 100 kHz / - 0,1 dB
Pin 1 = GND (Shield)
Pin 2 = Hot (+)
Pin 3 = Cold (-)
Pin 1 = Hot (+)
Pin 2 = Cold (-)
Pin 3 = GND (Shield)
Pin 4 + 5 = n.c.
Pin 1 = -10 V, Pin 2 = +10 V
Pin 3 = - 17 V, Pin 4 = +17 V, Pin 5 = n.c.
Pin 6 - 9 = GND
5 Years*
(optional. Incl. ACCU / optional: inkl. AKKU
User Manual/ Bedienungsanleitung
Version: July 2013
Clearaudio electronic GmbH 2013
