Smart Synchro

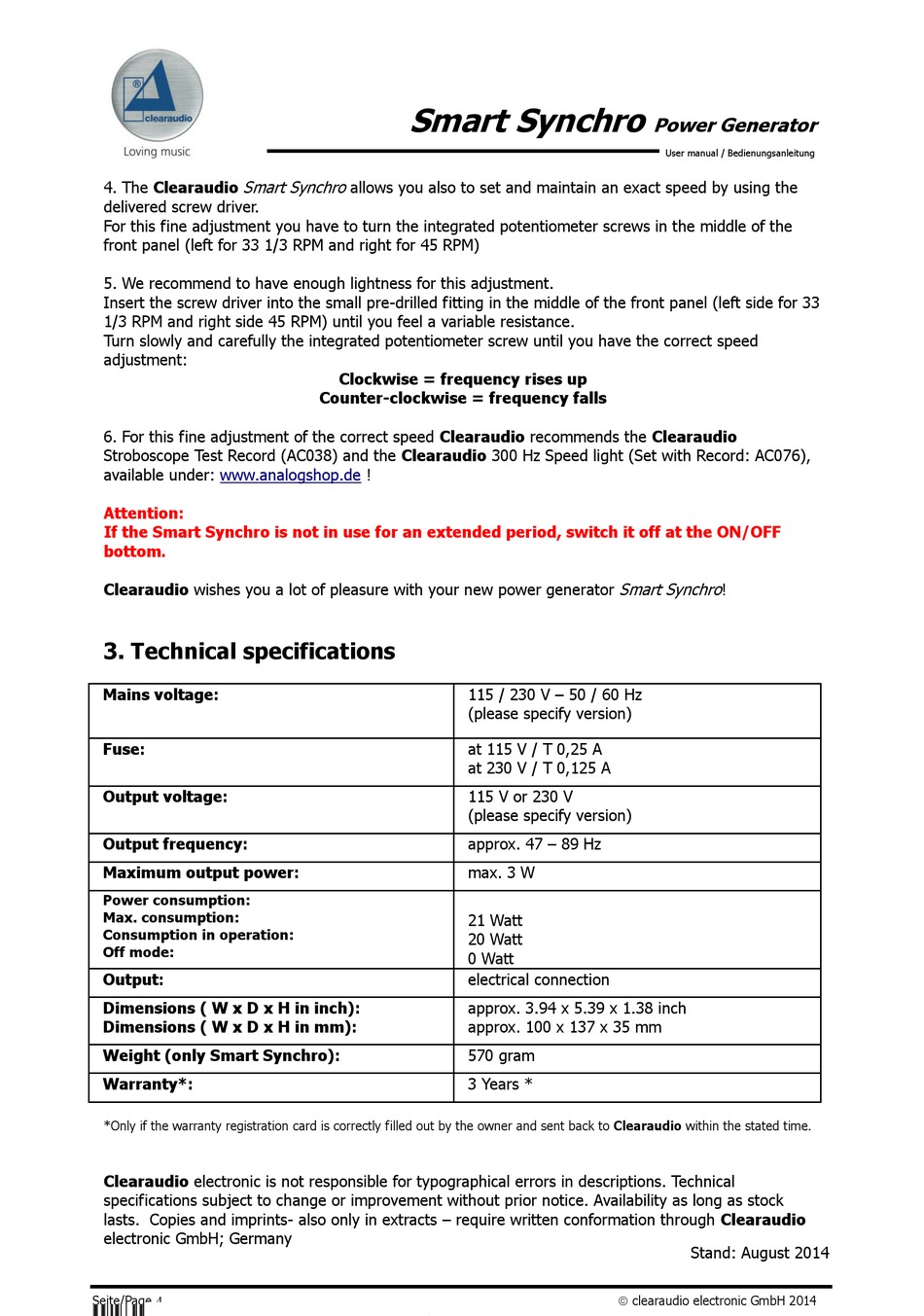

4. The Clearaudio
delivered screw driver.
For this fine adjustment you have to turn the integrated potentiometer screws in the middle of the
front panel (left for 33 1/3 RPM and right for 45 RPM)
5. We recommend to have enough lightness for this adjustment.
Insert the screw driver into the small pre-drilled fitting in the middle of the front panel (left side for 33
1/3 RPM and right side 45 RPM) until you feel a variable resistance.
Turn slowly and carefully the integrated potentiometer screw until you have the correct speed
adjustment:
6. For this fine adjustment of the correct speed Clearaudio recommends the Clearaudio
Stroboscope Test Record (AC038) and the Clearaudio 300 Hz Speed light (Set with Record: AC076),
available under: www.analogshop.de
Attention:
If the Smart Synchro is not in use for an extended period, switch it off at the ON/OFF
bottom.
Clearaudio wishes you a lot of pleasure with your new power generator

3. Technical specifications

Mains voltage:
Fuse:

Output voltage:

Output frequency:
Maximum output power:
Power consumption:
Max. consumption:
Consumption in operation:
Off mode:
Output:
Dimensions ( W x D x H in inch):
Dimensions ( W x D x H in mm):
Weight (only Smart Synchro):

Warranty*:

*Only if the warranty registration card is correctly filled out by the owner and sent back to Clearaudio within the stated time.
Clearaudio electronic is not responsible for typographical errors in descriptions. Technical
specifications subject to change or improvement without prior notice. Availability as long as stock
lasts. Copies and imprints- also only in extracts – require written conformation through Clearaudio
electronic GmbH; Germany
Seite/Page 4
Smart Synchro
allows you also to set and maintain an exact speed by using the
Clockwise = frequency rises up
Counter-clockwise = frequency falls
!
115 / 230 V – 50 / 60 Hz
(please specify version)
at 115 V / T 0,25 A
at 230 V / T 0,125 A
115 V or 230 V
(please specify version)
approx. 47 – 89 Hz
max. 3 W
21 Watt
20 Watt
0 Watt
electrical connection
approx. 3.94 x 5.39 x 1.38 inch
approx. 100 x 137 x 35 mm
570 gram
3 Years *
Power Generator
User manual / Bedienungsanleitung
Smart Synchro
!
Stand: August 2014
