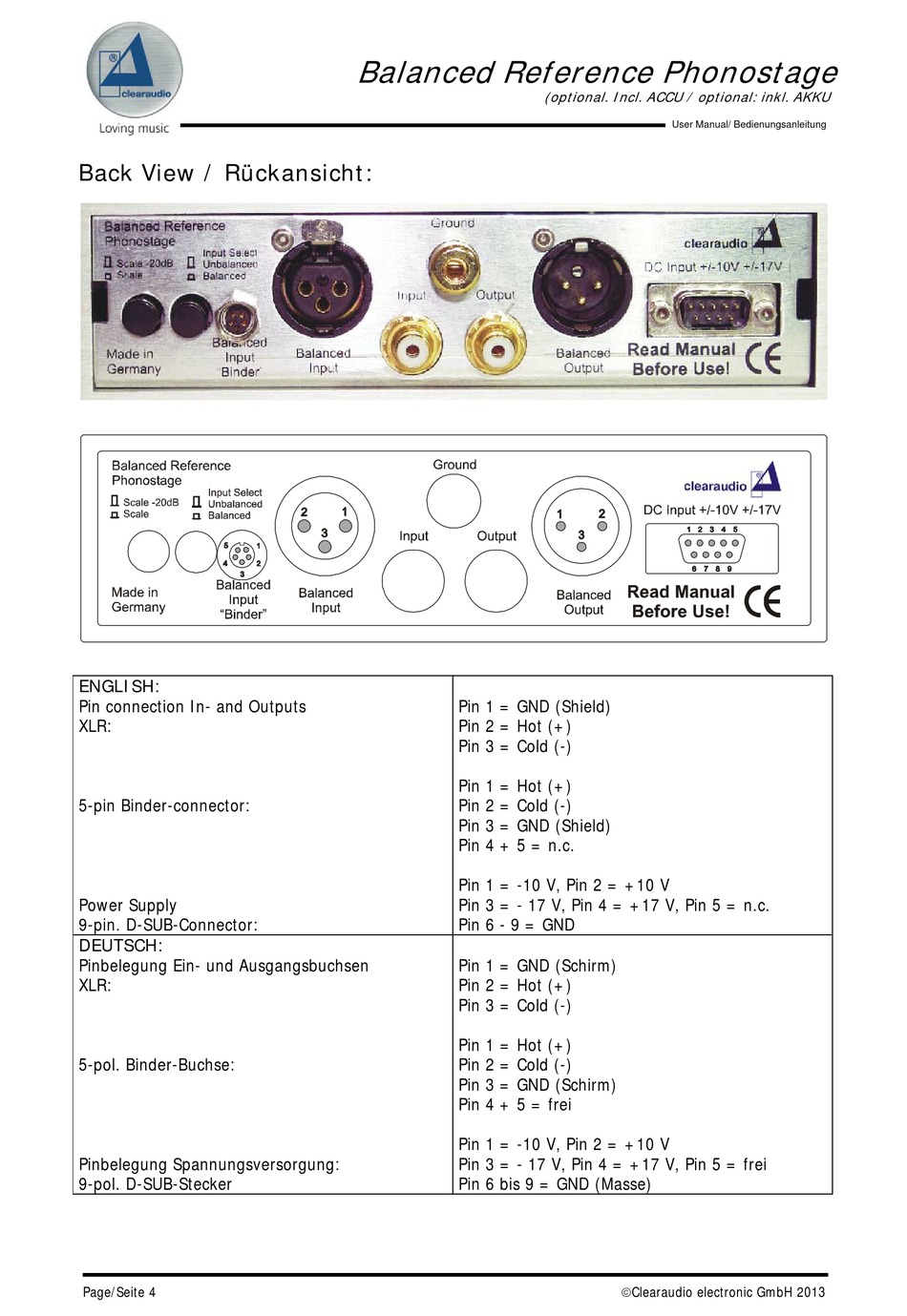

Back View / Rückansicht:
ENGLISH:
Pin connection In- and Outputs
XLR:
5-pin Binder-connector:
Power Supply
9-pin. D-SUB-Connector:
DEUTSCH:
Pinbelegung Ein- und Ausgangsbuchsen
XLR:
5-pol. Binder-Buchse:
Pinbelegung Spannungsversorgung:
9-pol. D-SUB-Stecker
Page/Seite 4
Balanced Reference Phonostage
Pin 1 = GND (Shield)
Pin 2 = Hot (+)
Pin 3 = Cold (-)
Pin 1 = Hot (+)
Pin 2 = Cold (-)
Pin 3 = GND (Shield)
Pin 4 + 5 = n.c.
Pin 1 = -10 V, Pin 2 = +10 V
Pin 3 = - 17 V, Pin 4 = +17 V, Pin 5 = n.c.
Pin 6 - 9 = GND
Pin 1 = GND (Schirm)
Pin 2 = Hot (+)
Pin 3 = Cold (-)
Pin 1 = Hot (+)
Pin 2 = Cold (-)
Pin 3 = GND (Schirm)
Pin 4 + 5 = frei
Pin 1 = -10 V, Pin 2 = +10 V
Pin 3 = - 17 V, Pin 4 = +17 V, Pin 5 = frei
Pin 6 bis 9 = GND (Masse)
