FIAP Clean Active
Assembly
1. Select the appropriate brush head according to the request (step 1).
2. Seal device between the holding brackets and the brush head (step 2).
3. Install the elbow (Step 3). The screw must be open to attach to rotate clockwise and
counterclockwise.
4. Connect the hose with the included adapter part (Step 4).
5. After the hose has been connected to the adapter portion, the adapter can be attached to the unit
part (Step 5).
6. Install the adjustable handle (see step 6) and adjust the intake pipe to the required length.
7. Adjust the suction tube in the specified direction of the arrow until it clicks into place (Step 7).
8. Insert the battery properly according to predetermined + and - certainly in the grip area (step 8).

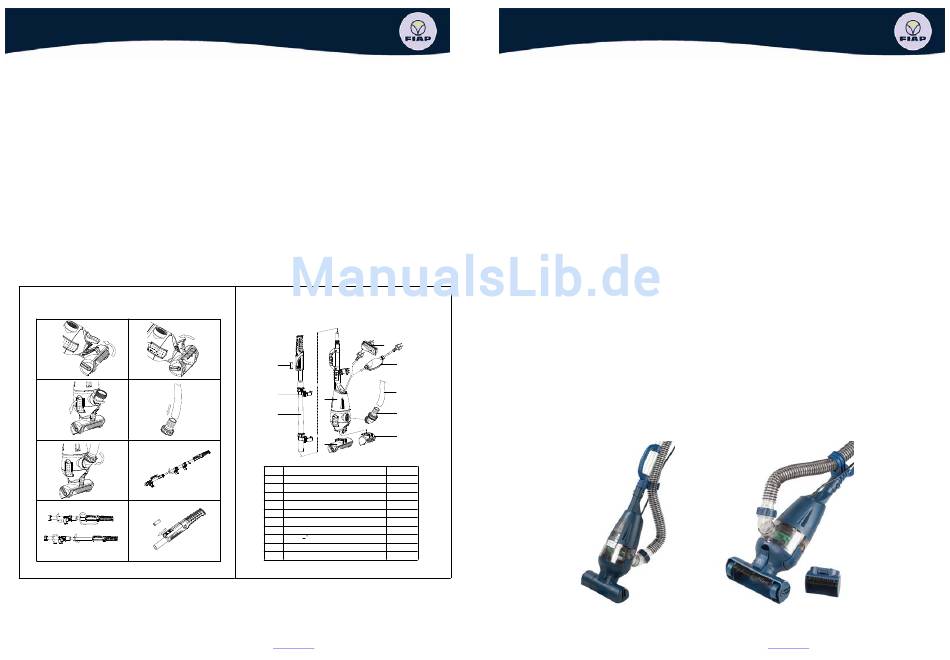

Assembly sheet for pond vacuum
Step 1 Step 2
Step 3 Step 4
Step 5 Step 6
Step 7 Step 8
(1)
(2)
Technische Änderungen vorbehalten. Für Druckfehler übernehmen wir keine Haftung. WEEE-Reg. Nr.: DE78152045
FIAP GmbH, Jakob Oswald Str. 16, 92289 Ursensollen
Tel: 09628 9213 0; Fax: 09628 9213 30;
Packing List
10
1 9
8
2
4
3 7
6
5
Part Description Quantity
1 Remote control handle battery 1 pc
2 Hose/cable clip assembly 2 set
3 1 set
Extendable pole/handle assembly
4 Pond vacuum assembly 1 set
5 Brush head 1 1 pc
6 Brush head 2 1 pc
7 Outlet clear elbow assembly 1 set
1
8 6m 1 hose 1 pc
2
9 Receiver assembly 1 1 set
10 Receiver assembly 2 1 set
7
www.fiap.com
FIAP Clean Active
Set
1. Decide on a pond in the suction position, position yourself safely on the edge of the pond and you
begin by turning the pond vacuum cleaner with suction. The suction hose should be passed into a
septic tank or in a container can be emptied easily. The suction hose must not be bent during feeding.
2. You can adjust the length of the intake manifold of the tube so that you can always continue without
major effort from the edge of the pond sucking
3. To complete the cleaning process, you press with your thumb, the lock button.
4. Then remove and clean the device.
Maintenance and Cleaning
Turn the machine off and unplug the power cord.
Clean the unit using the following steps:
1. Remove the housing and clean the rotor of the pump with a soft brush.
2. Remove the intake manifold and the suction hose and rinse it with clean water.
Wear Parts
Valve sealing rings and rubber wear parts and are not subject to the warranty.
Storage
Keep out of reach of children in a dry, frost-free room.
Disposal
The device should be disposed of in accordance with national regulations.
Ask your dealer.
Disorders
The device does not absorb, making unusual noises or vibrate heavily. Turn the power back on after
20 seconds. If the error occurs again, it must be checked by an electrician or manufacturer.
