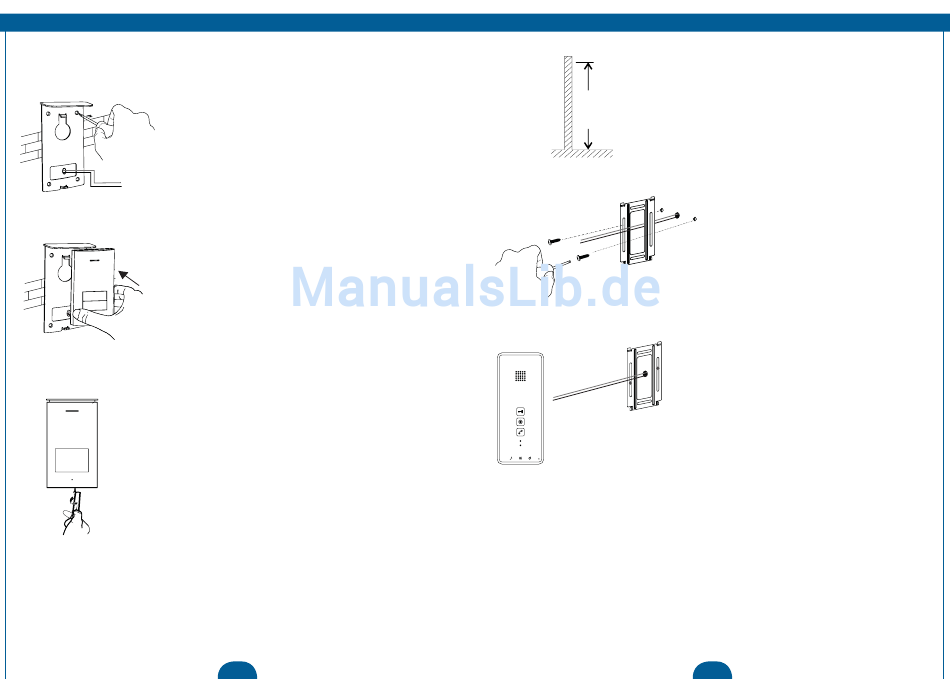

INSTALLATION - OUTDOOR UNIT
When installing the outdoor unit, make sure that the location you wish to install it is dry. It is important
that the electronics do not get wet.
1. Drill holes in the wall, insert the wall plugs in the holes. Place
2. Connect the wires. Please pay attention to the color markings.
3. Mount the outdoor unit on the bracket. Make sure it is
4. Use the special security screw on the bottom of the unit, to
6
the bracket and tighten the screws.
properly secured.
prevent theft.
EN
INSTALLATION - INDOOR UNIT
1.Select a suitable location for installation.
2. Drill holes in the wall, insert the wall plugs in the
holes. Place the bracket and tighten the screws.
3. Connect the wires. Please pay
attention to the color markings
4. Mount the indoor unit on the bracket.
Make sure it is properly secured.
5. Plug in the AC adapter after making sure all the
wires are properly connected.
EN
7
