ANSMANN Racing X4Team Edition Anleitung Seite 9

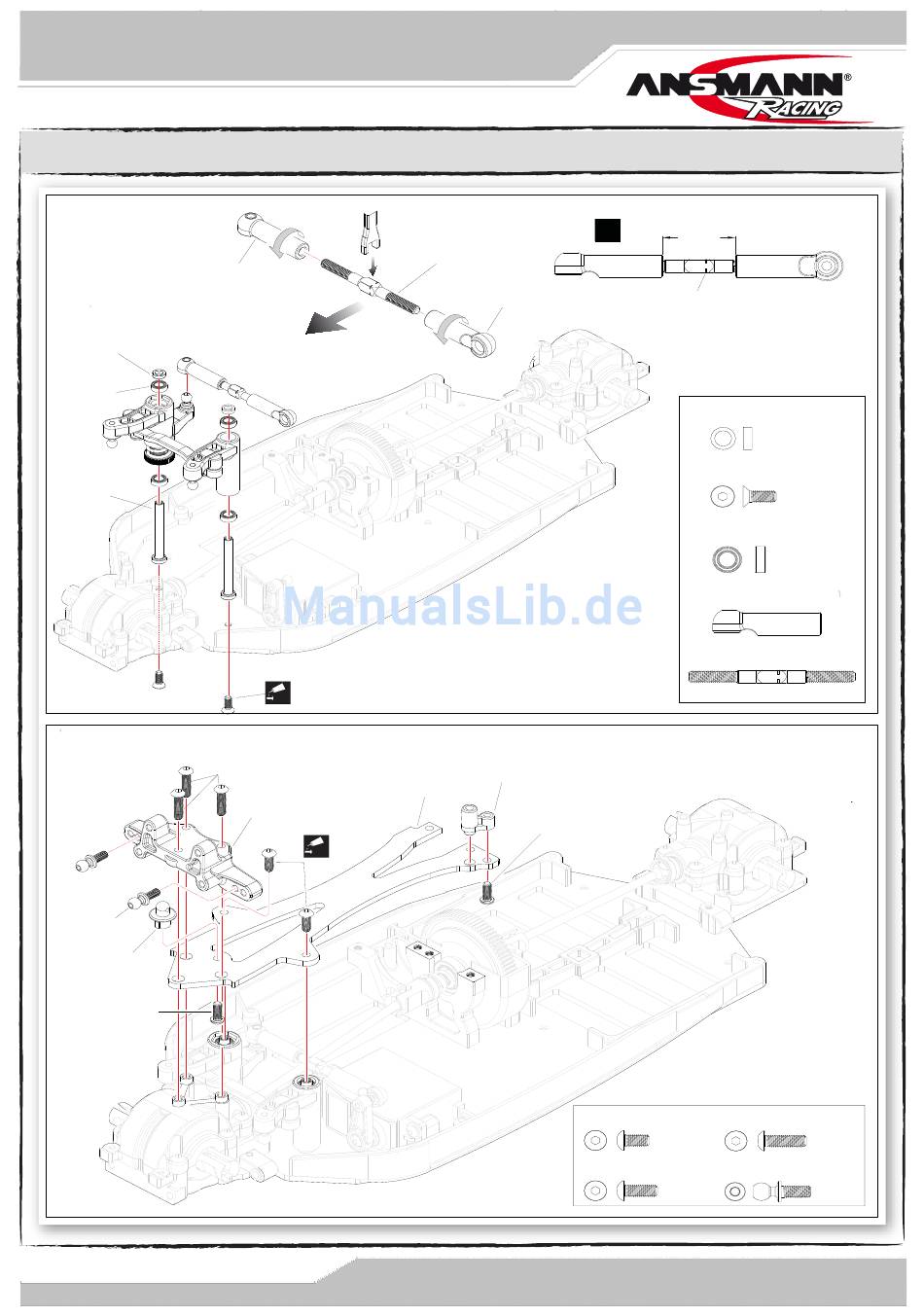

Querlenker oben vorne / Front upper suspension arm mount / avant bras de suspension de montage supérieur
125001087
125001017
125000950
125000458
TR4023
125000960
M3x6
125001000
125000959
Screw M3x8
Cement
125000960
M3x10
125000903
125000960
M3x8
Screw
Cement
4mm
125001010
125001000
125001085
125001083
125000960
M3x8
- 9 -
1:1
17.5mm
▲Projection.Note direction
125001087
Servo Saver Washer
125000959 M3x8 Screw
125001017 4x7x2.5 Ball bearing
125001000 4.8mm Ball End-Long
125001010 3x40 Turnbuckle
125000960 M3x6 Screw 125000960 M3x10 Screw
.........1
125000960 M3x8 Screw
125000458 Ball stud-Long
.........3
.....................2
..................2
.....................4
......2
............1
.........3
.........2
