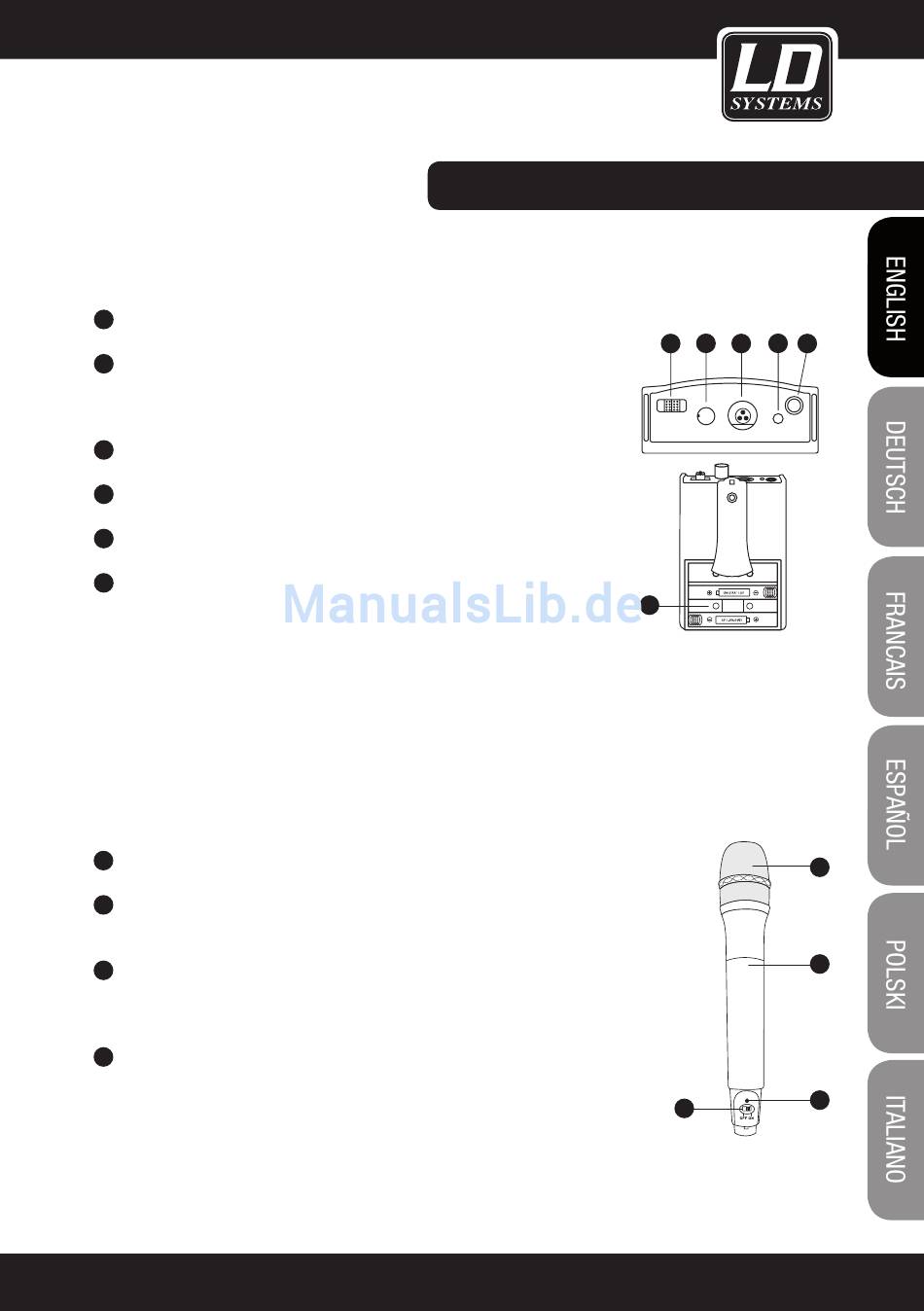

1
ANTENNA CONNECTOR
2
POWER / BATTERY STATUS INDICATOR
Red LED lights up when the battery is low, Green LED lights up when the
power is on and the battery status is okay.
3
3 PIN MINI xLR MICROPhONE INPUT
4
VOLUME CONTROL
5
POWER SWITCh
6
BATTERY COMPARTMENT
2 x alkaline batteries, or 2 x rechargeable batteries (type AA).
1
MICROPhONE hEAD gRILLE
2
MIDDLE hOUSINg
Turn anticlockwise to open the battery compartment.
3
BATTERY POWER INDICATOR LED
When the LED lights up red, the batteries have to be replaced. If the LED lights up green,
the power is on and the battery status is okay.
4
POWER SWITCh
BELT PACK / HANDHELD MIC:
5 4 3 2 1
6
1
2
3
4
