Device Components - QUNDIS Q Smoke 5.5 R Kurzanleitung

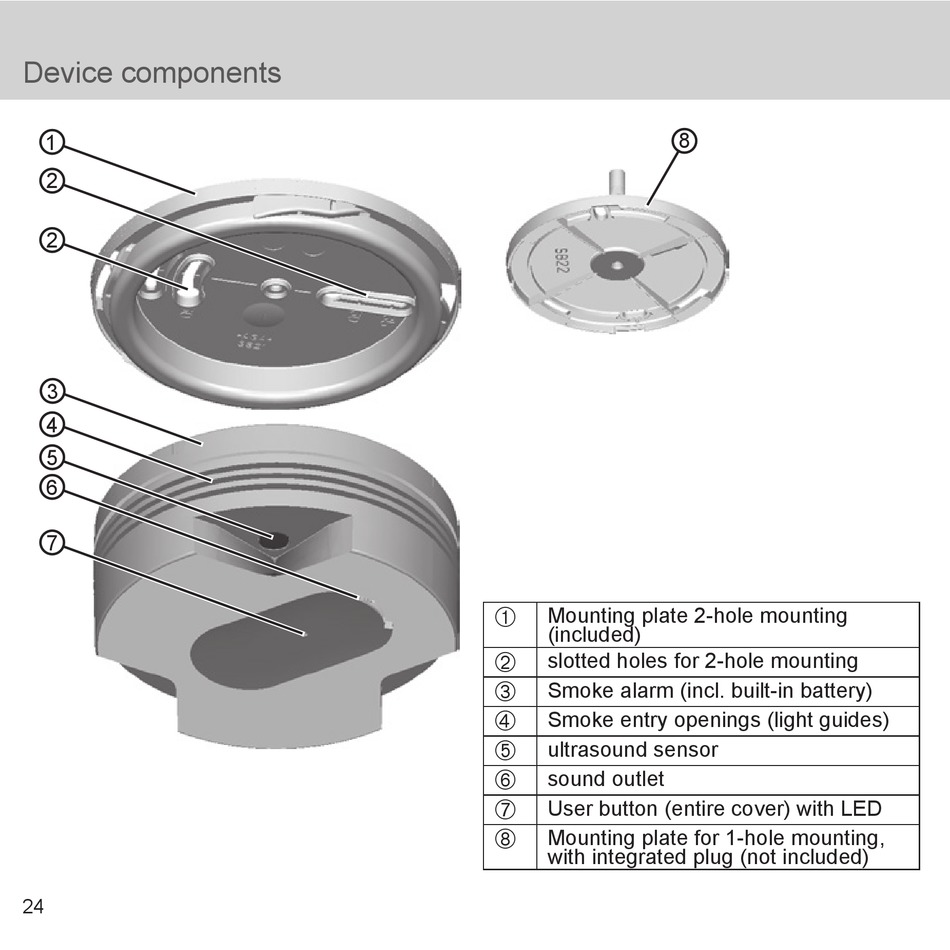

Device components

1
2
2
3
4
5
6
7
24
Mounting plate 2-hole mounting
À
(included)
slotted holes for 2-hole mounting
Á
Smoke alarm (incl. built-in battery)
Â
Smoke entry openings (light guides)
Ã
ultrasound sensor
Ä
sound outlet
Å
User button (entire cover) with LED
Æ
Mounting plate for 1-hole mounting,
Ç
with integrated plug (not included)
