Insert Batteries - REVELL BIG ONE PRO Bedienungsanleitung

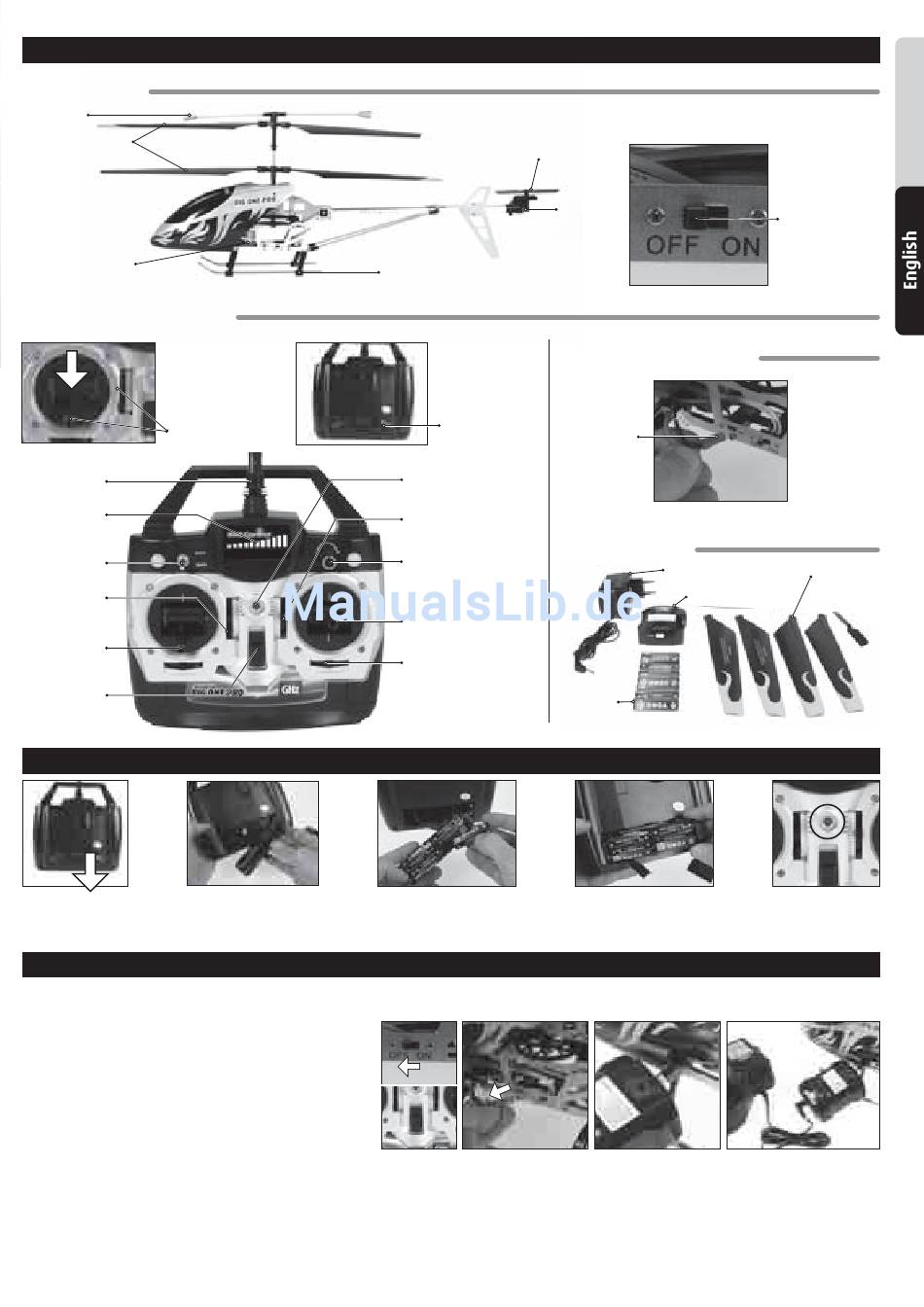

HELicoPtER:
Stabiliser
Coaxial rotor system
Li-Po battery
REMotE coNtRoL UNit:
Starting position
Note: The throttle stick
and trimming dial must
be in the down position
when the controller is
turned on.
Antenna
Indicator
Speed selection
switch
Throttle trim dial
Throttle stick
Control
switch
1. To open the battery 2. Remove the battery holder
cover, slide it
downwards
Caution: Before charging and after each flight, the battery must cool down for approx. 15-30 minutes. Otherwise, the battery may become damaged. Always monitor the charging procedure.
A fire-resistant surface and fireproof environment must always be chosen for the charging process.
1. Switch off the helicopter and the remote control unit (fig. 1).
2. Carefully disconnect the plug on the battery cable from the helicopter (fig. 2).
3. Connect the charger power pack with the Li-Po charger. Now plug the
power pack into a socket. The red LED on the Li-Po charger illuminates.
4. Carefully plug the white plug of the Li-Po battery into the Li-Po charger.
Do not apply force (fig. 3).
5. The charging process takes approx. 180 minutes and must be continuously
supervised. The green LED illuminates green as soon as the power pack is
fully charged.
After a charging time of 180 minutes, the helicopter can fly approx. 6–8 minutes. the charging process may not take longer than 180 minutes. if the LED indicator does not
illuminate after this time, the charging process should be stopped. then check the functions of the helicopter and continue to fly until the power is not sufficient or the rotors
come to a standstill. then repeat the charging process described above.
Warning: the Li-Po battery warms up during charging, but if it becomes hot and/or changes are shown on the surface, the charging process must be stopped immediately!
Helicopter and remote control unit
using the strap.
charging the helicopter battery
Tail rotor
Landing skids
Battery
compartment
cover
Control LED
Pitch trim dial
Left/right trimming
(fine tuning)
Forwards/reverse
flying (pitching)
Flying left/right
(curving)
Roll trim dial

insert batteries

3. Insert eight 1.5 V AA batteries
according to the polarity indicat-
ed in the battery compartment.
fig. 1
fig.
2
LED indicator
HELicoPtER BAttERy:
Flight cable
AccESSoRiES:
220 V AC adapter
Automatic Li-Po
charger
Batteries
4. Replace the battery holder in
the compartment and slide the
battery compartment cover back
up and close.
fig.
3
ON/OFF switch
Replacement rotors
5. If the LED indicator
emits a continuous
red light, the battery
charge is OK.
7
