En glis h

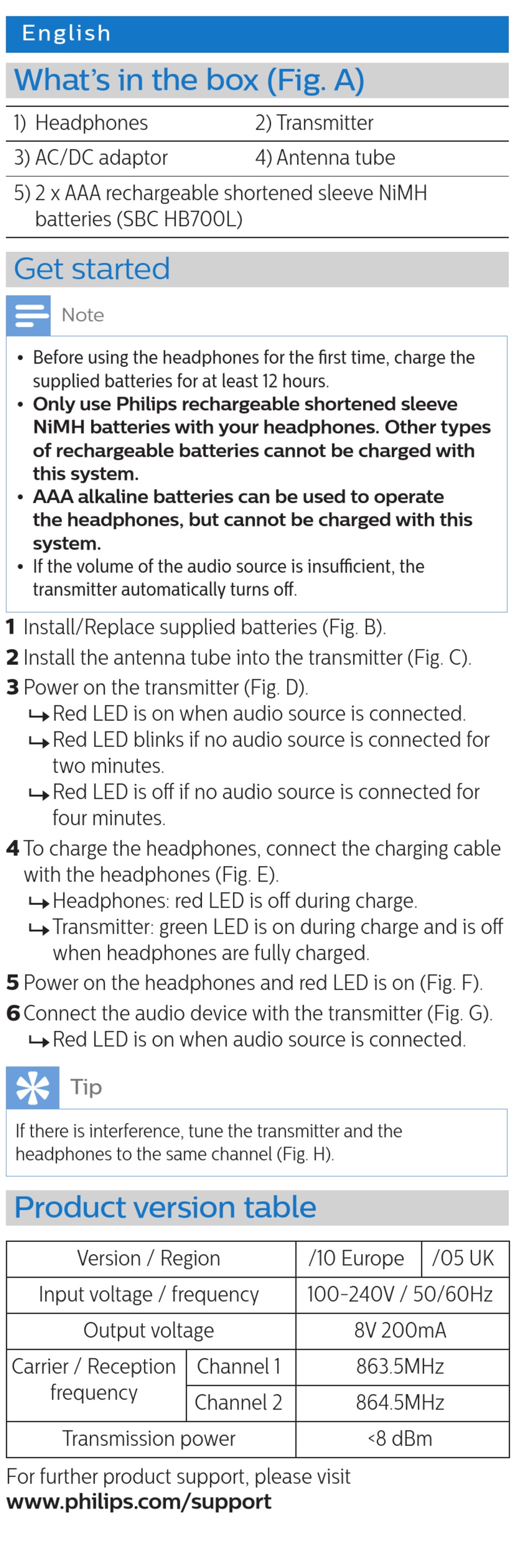

What's in the box (Fig. A)
1) Headphones
3) AC/DC adaptor
5) 2 x AAA rechargeable shortened sleeve NiMH
batteries (SBC HB700L)

Get started

Note
• Before using the headphones for the first time, charge the
supplied batteries for at least 12 hours.
• Only use Philips rechargeable shortened sleeve
NiMH batteries with your headphones. Other types
of rechargeable batteries cannot be charged with
this system.
• AAA alkaline batteries can be used to operate
the headphones, but cannot be charged with this
system.
• If the volume of the audio source is insufficient, the
transmitter automatically turns off.
1 Install/Replace supplied batteries (Fig. B).
2 Install the antenna tube into the transmitter (Fig. C).
3 Power on the transmitter (Fig. D).
» Red LED is on when audio source is connected.
» Red LED blinks if no audio source is connected for
two minutes.
» Red LED is off if no audio source is connected for
four minutes.
4 To charge the headphones, connect the charging cable
with the headphones (Fig. E).
» Headphones: red LED is off during charge.
» Transmitter: green LED is on during charge and is off
when headphones are fully charged.
5 Power on the headphones and red LED is on (Fig. F).
6 Connect the audio device with the transmitter (Fig. G).
» Red LED is on when audio source is connected.
Tip
If there is interference, tune the transmitter and the
headphones to the same channel (Fig. H).
Product version table
Version / Region
Input voltage / frequency
Output voltage
Carrier / Reception
frequency
Transmission power
For further product support, please visit
www.philips.com/support
2) Transmitter
4) Antenna tube
Channel 1
Channel 2
/10 Europe
100-240V / 50/60Hz
8V 200mA
863.5MHz
864.5MHz
<8 dBm
/05 UK
