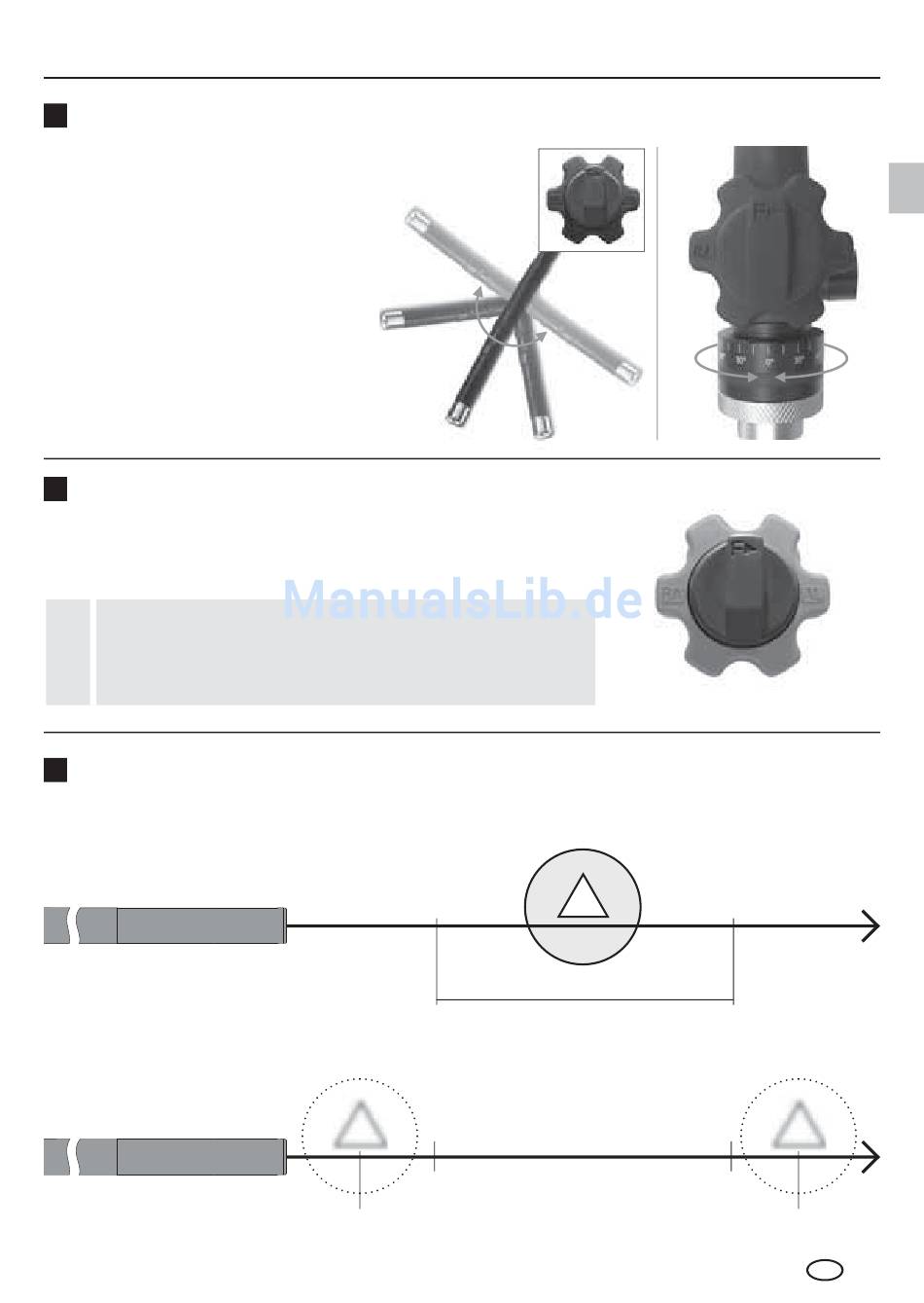

Adjusting the camera head
1
Using the camera adjustment
wheel (4), the camera head
can be moved steplessly in
two directions (Fig. 1). The
cable base can be turned
as well (Fig. 2).
Lock camera head
2
The camera head can be locked by turning the
knob (3).
In order to avoid damage to the camera
!
head, the lock must be disengaged when
moving the push rod.
Focal depth
3
The Flexi3D-Camera delivers sharp images in a range between 2,5 and 9 cm
from the camera head.
Objects well beyond the focus range may appear blurred.
1
< 2,5 cm
Flexi3D-Camera
2
2,5 - 9 cm
> 9 cm
