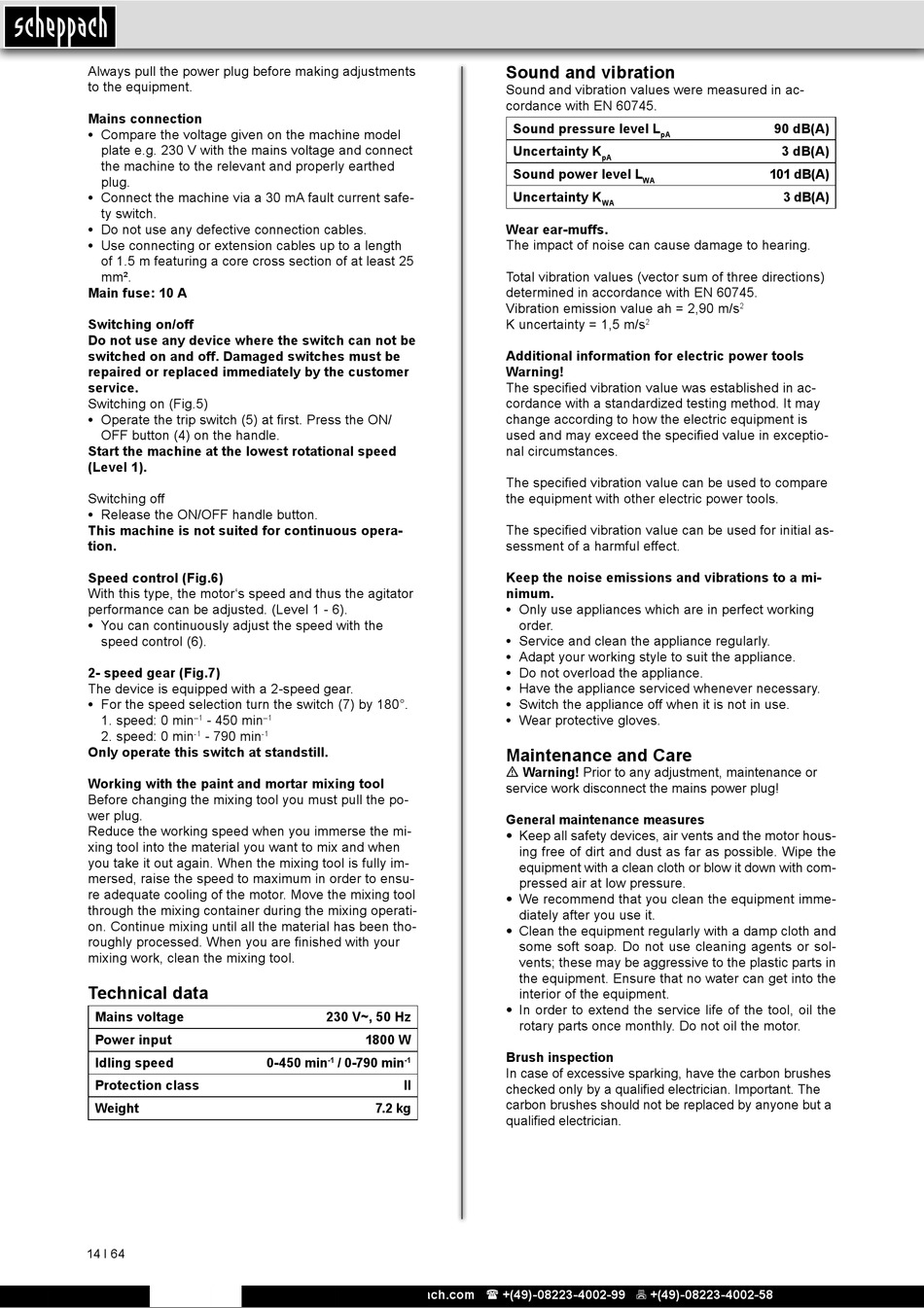

Always pull the power plug before making adjustments
to the equipment.
Mains connection
• Compare the voltage given on the machine model
plate e.g. 230 V with the mains voltage and connect
the machine to the relevant and properly earthed
plug.
• Connect the machine via a 30 mA fault current safe-
ty switch.
• Do not use any defective connection cables.
• Use connecting or extension cables up to a length
of 1.5 m featuring a core cross section of at least 25
mm².
Main fuse: 10 A
Switching on/off
Do not use any device where the switch can not be
switched on and off. Damaged switches must be
repaired or replaced immediately by the customer
service.
Switching on (Fig.5)
• Operate the trip switch (5) at first. Press the ON/
OFF button (4) on the handle.
Start the machine at the lowest rotational speed
(Level 1).
Switching off
• Release the ON/OFF handle button.
This machine is not suited for continuous opera-
tion.
Speed control (Fig.6)
With this type, the motor's speed and thus the agitator
performance can be adjusted. (Level 1 - 6).
• You can continuously adjust the speed with the
speed control (6).
2- speed gear (Fig.7)
The device is equipped with a 2-speed gear.
• For the speed selection turn the switch (7) by 180°.
1. speed: 0 min - 450 min
–1
2. speed: 0 min - 790 min
-1
Only operate this switch at standstill.
Working with the paint and mortar mixing tool
Before changing the mixing tool you must pull the po-
wer plug.
Reduce the working speed when you immerse the mi-
xing tool into the material you want to mix and when
you take it out again. When the mixing tool is fully im-
mersed, raise the speed to maximum in order to ensu-
re adequate cooling of the motor. Move the mixing tool
through the mixing container during the mixing operati-
on. Continue mixing until all the material has been tho-
roughly processed. When you are finished with your
mixing work, clean the mixing tool.

Technical data

Mains voltage
Power input
Idling speed
Protection class
Weight
14 І 64
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
–1
-1
230 V~, 50 Hz
1800 W
0-450 min / 0-790 min
-1 -1
II
7.2 kg
Sound and vibration
Sound and vibration values were measured in ac-
cordance with EN 60745.
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L
WA
Uncertainty K
WA
Wear ear-muffs.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions)
determined in accordance with EN 60745.
Vibration emission value ah = 2,90 m/s
K uncertainty = 1,5 m/s
2
Additional information for electric power tools
Warning!
The specified vibration value was established in ac-
cordance with a standardized testing method. It may
change according to how the electric equipment is
used and may exceed the specified value in exceptio-
nal circumstances.
The specified vibration value can be used to compare
the equipment with other electric power tools.
The specified vibration value can be used for initial as-
sessment of a harmful effect.
Keep the noise emissions and vibrations to a mi-
nimum.
• Only use appliances which are in perfect working
order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.

Maintenance and Care

m Warning! Prior to any adjustment, maintenance or
service work disconnect the mains power plug!
General maintenance measures
• Keep all safety devices, air vents and the motor hous-
ing free of dirt and dust as far as possible. Wipe the
equipment with a clean cloth or blow it down with com-
pressed air at low pressure.
• We recommend that you clean the equipment imme-
diately after you use it.
• Clean the equipment regularly with a damp cloth and
some soft soap. Do not use cleaning agents or sol-
vents; these may be aggressive to the plastic parts in
the equipment. Ensure that no water can get into the
interior of the equipment.
• In order to extend the service life of the tool, oil the
rotary parts once monthly. Do not oil the motor.
Brush inspection
In case of excessive sparking, have the carbon brushes
checked only by a qualified electrician. Important. The
carbon brushes should not be replaced by anyone but a
qualified electrician.
90 dB(A)
3 dB(A)
101 dB(A)
3 dB(A)
2
