External View Of Transmitter; How To Change Frequencies - Carson Nitrobone Automatic RTR Betriebsanleitung

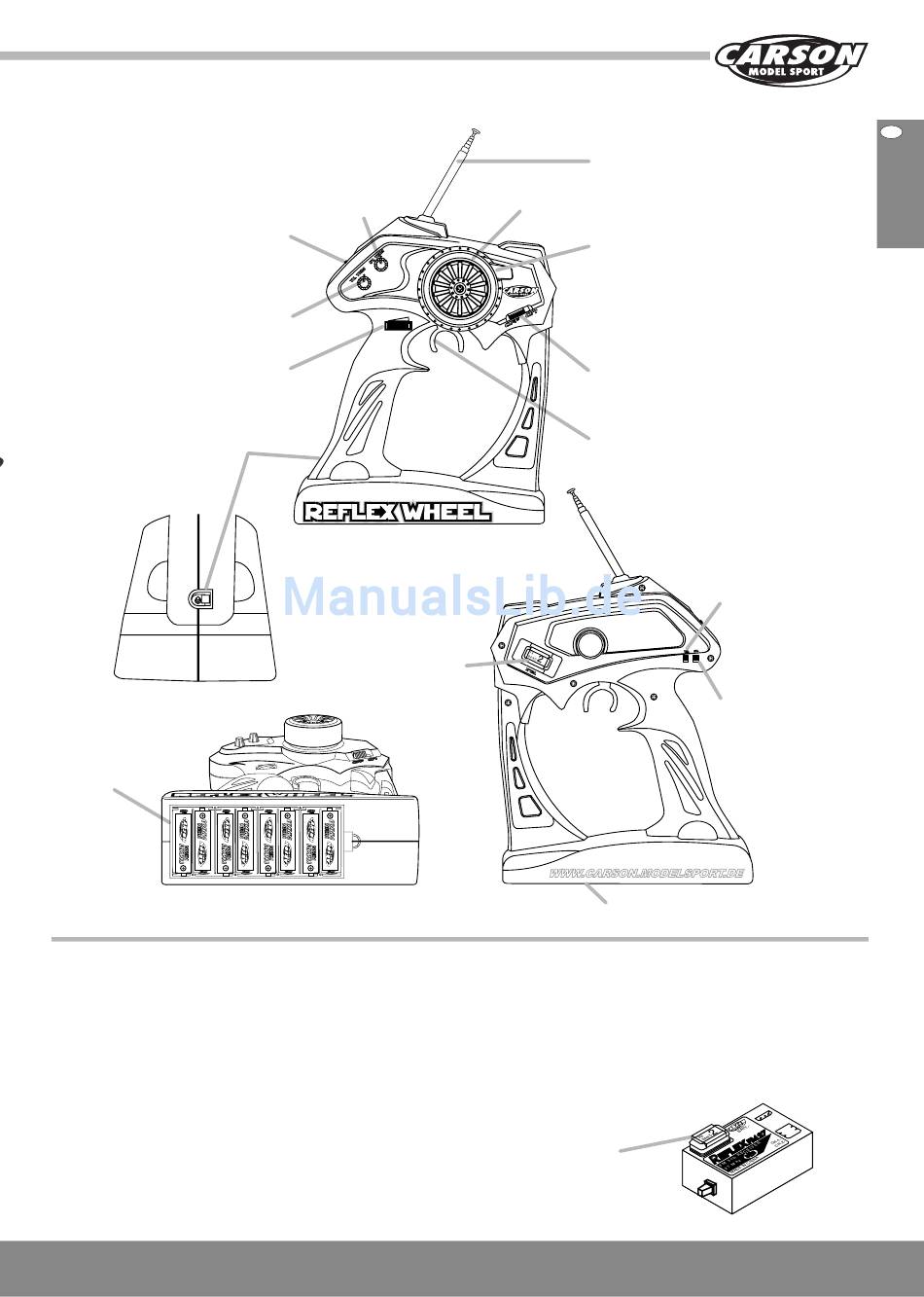

External view of transmitter

Third channel switch
Electric starter
Throttle trim
Streering rate adjuster
Charging Jack
Battery compartment

How to change frequencies

Transmitter
• A rapid change of frequencies is possible simply by
unplugging an interchangeable plug-in crystal on the back of
the transmitter and then plugging in another one.
• The use of crystals, other than CARSON's, may damage the
radio and invalidates our guarantee for our products.
CARSON Automatic RTR: Nitrobone 50 010 3021 Stormracer 50 010 3022
ST. TRIM
Steering Trim
TH. TRIM
Identification mark:
Steering Wheel
Crystal
40
FM
TX
Battery Cover
Receiver
• Plug an interchangeable crystal into the receiver for a rapid
change of frequencies.
• Make sure that the crystal is fully inserted in the receiver, not
partially.
External view of transmitter
Crystal
Identification mark:
Antenna
Power LED
Blinking LED indicates that
the batteries are getting weak.
When LED turns off, the
batteries are dead and need
to be changed to new ones.
Power Switch
Throttle Trigger
Throttle
Servo reverse
Channel 2
Steering
Servo reverse
Channel 1
RX
GB
