Upewnij si´ ˝e pod∏àczenie zasilania zosta∏o zabezpieczone przy pomocy opaski
zabezpieczajàcej przed przypadkowym od∏àczeniem.
5) Prze∏àczanie sekwencyjne zsynchronizowane z g∏owicà VCR
Z wyjÊcia monitora 'B' mo˝liwe jest wykonanie synchronizacji sekwencji ruchu kamery
z impulsem g∏owicy magnetowidu VCR.
Impuls prze∏àczania powinien byç w amplitudzie ujemnej z nap. 12V lub 5V.

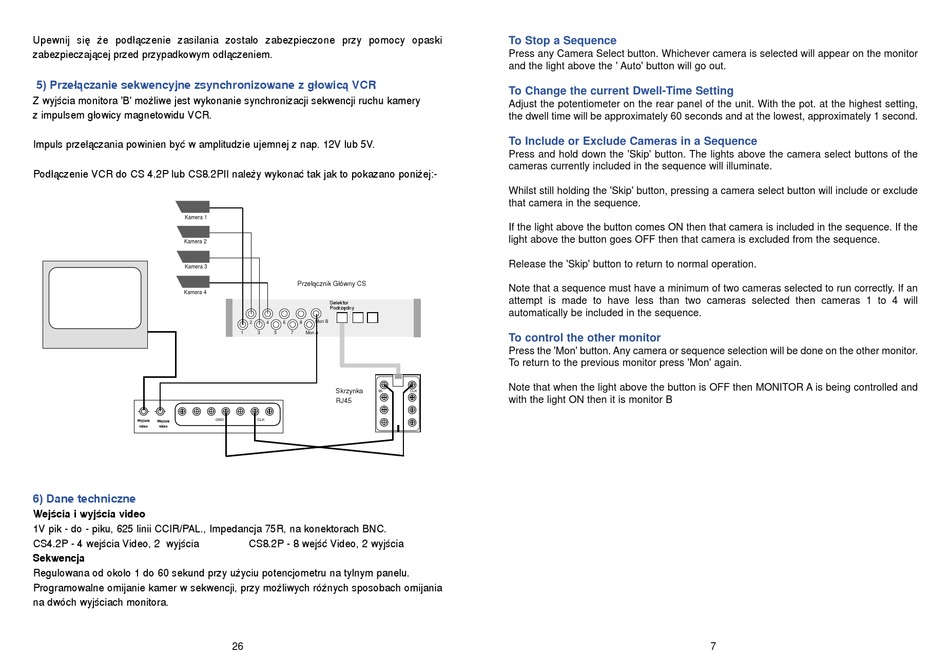

Pod∏àczenie VCR do CS 4.2P lub CS8.2PII nale˝y wykonaç tak jak to pokazano poni˝ej:-
Kamera 1
Kamera 2
Kamera 3
Kamera 4
WyjÊcie
WejÊcie
video video

6) Dane techniczne

WejÊcia i wyjÊcia video
1V pik - do - piku, 625 linii CCIR/PAL., Impedancja 75R, na konektorach BNC.
CS4.2P - 4 wejÊcia Video, 2 wyjÊcia
Sekwencja
Regulowana od oko∏o 1 do 60 sekund przy u˝yciu potencjometru na tylnym panelu.
Programowalne omijanie kamer w sekwencji, przy mo˝liwych ró˝nych sposobach omijania
na dwóch wyjÊciach monitora.
Prze∏àcznik G∏ówny CS
Selektor
Podrz´dny
Mon B
2 4 6 8
1 3 5 7 Mon A
Skrzynka
BL
RJ45
GND CLK
CS8.2P - 8 wejÊç Video, 2 wyjÊcia
26
To Stop a Sequence
Press any Camera Select button. Whichever camera is selected will appear on the monitor
and the light above the ' Auto' button will go out.
To Change the current Dwell-Time Setting
Adjust the potentiometer on the rear panel of the unit. With the pot. at the highest setting,
the dwell time will be approximately 60 seconds and at the lowest, approximately 1 second.
To Include or Exclude Cameras in a Sequence
Press and hold down the 'Skip' button. The lights above the camera select buttons of the
cameras currently included in the sequence will illuminate.
Whilst still holding the 'Skip' button, pressing a camera select button will include or exclude
that camera in the sequence.
If the light above the button comes ON then that camera is included in the sequence. If the
light above the button goes OFF then that camera is excluded from the sequence.
Release the 'Skip' button to return to normal operation.
Note that a sequence must have a minimum of two cameras selected to run correctly. If an
attempt is made to have less than two cameras selected then cameras 1 to 4 will
automatically be included in the sequence.
To control the other monitor
Press the 'Mon' button. Any camera or sequence selection will be done on the other monitor.
To return to the previous monitor press 'Mon' again.
Note that when the light above the button is OFF then MONITOR A is being controlled and
CLK
with the light ON then it is monitor B
