Operating Elements and In/Outputs
Setting the Input Sensitivity
The input sensitivity may be adapted to any car radio or tape deck. Turn the volume Control of
Your radio to its central position and then adjust the input-level control (5) to produce an
average medium volume. This setting usually provides sufficient power reserves at optimum
weighted noise voltage.
Attention: Only reproduce loud test noises briefly to prevent damaging the loudspeakers.
Low-Pass Filter with adjustable Cross-Over Frequency
If the amplifier is used as a subwoofer amplifier, set the switch (8) to "LPF".
Set the desired Cross-over frequency with the control (9). This makes the filter adaptable to
the installed woofers sound requirements. The filters high edge steepless is responsible for
the precise of medium an high frequency ranges.
High-Pass Filter with adjustable Cross-Over Frequency
If the amplifier is to be used as an amplifier for satellite loudspeakers (mid-range/tweeter
Loudspeakers), set switch (8) to "HPF". Set the desired cross-over frequency with the
Control (7), only the frequencies above the set cross-overfrequency will then be amplified.
This effectively minimizes distortions caused by excessive membrane movement at low
frequencies and small stellite loudspeakers without reducing the bass level.
Bass-Boost
The bass-boost function (6) is used to increase or equalize the lower bass frequencies.

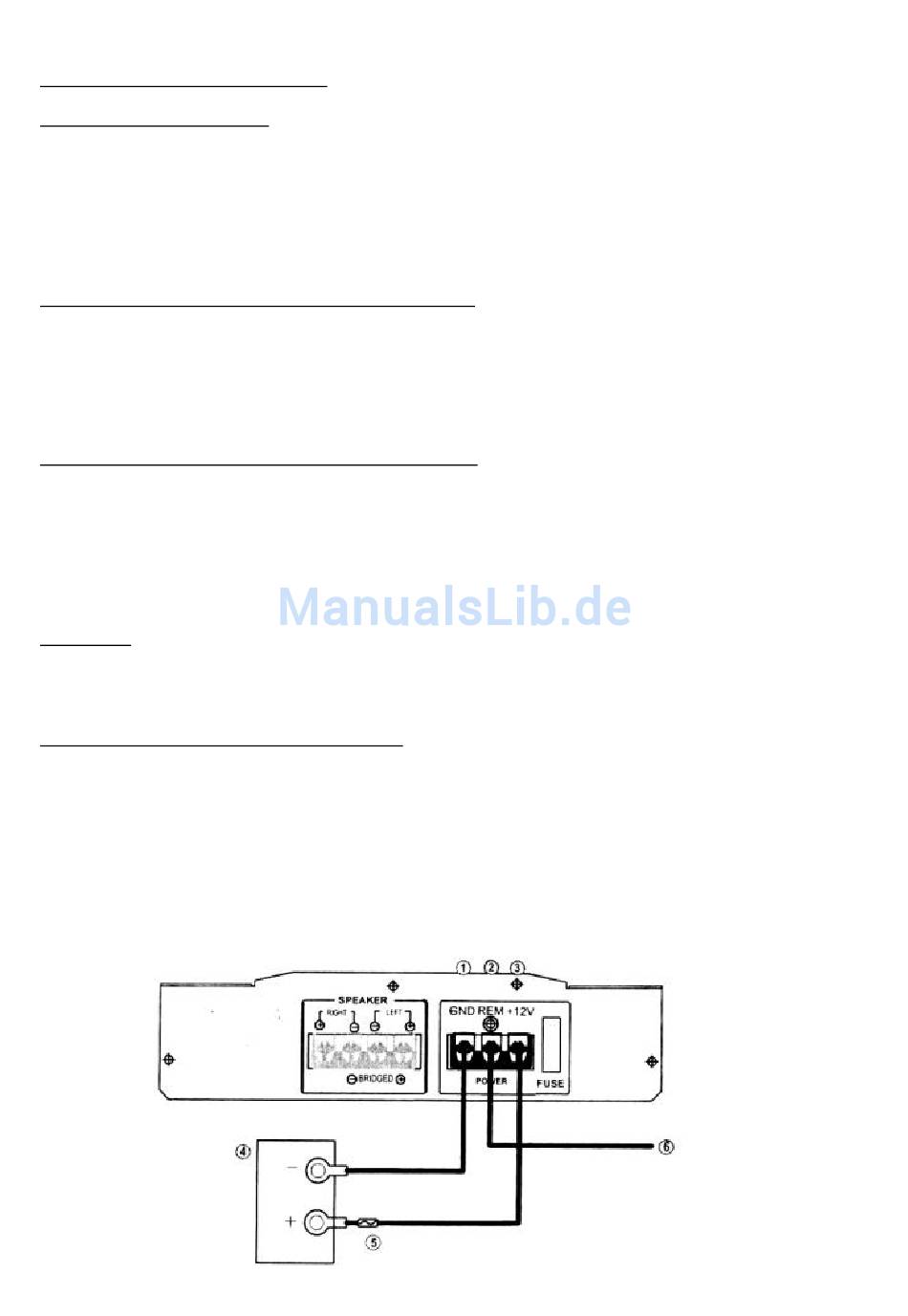

Power Supply/Remote Switch-On Connection
1. GND connecting terminal for earth, to negative battery terminal.
2. Remote terminal for remote swith-on
3. Connecting terminal for + 12 V battery voltage
4. Battery
5. Cable fuse
6. To your car radios automatic aerial connection, connect this cabels plus pole (+) to the ignition lock. An
on/off switck shold be inserted is this case. Make sure that this switched off if the amplifier is not used.
