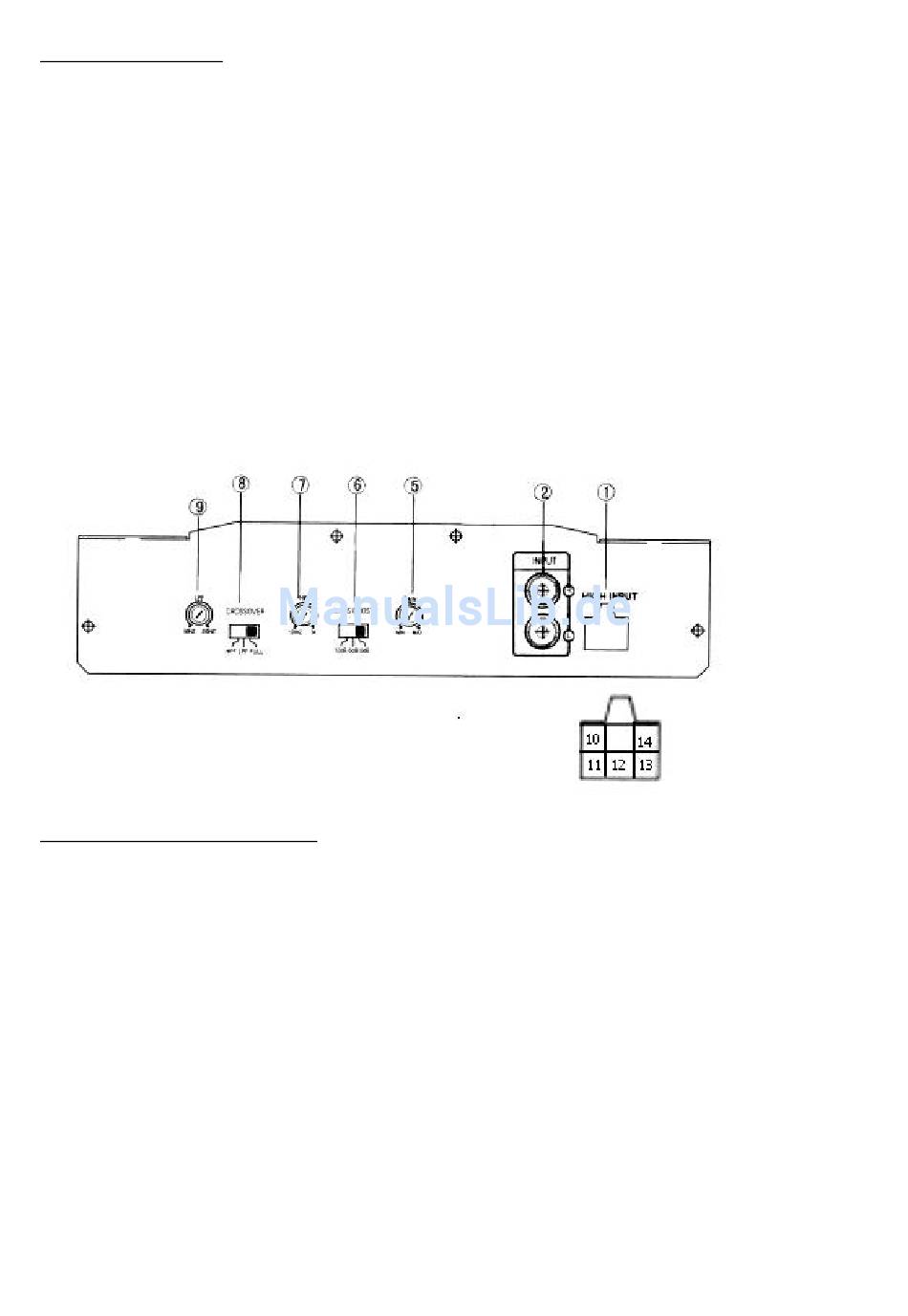

Connectors & Controls
1. Audioinput (high power)
2. Audioinput (low power)
3. not used in these type
4. not used in thes type
5. Input level contol
6. Bass-boost switch
7. Cross-over frequency control for the high pass
8. Selector switch linear (Full)/ low-pass filter (LPF)/ high-pass filter (HPF)
9. Cross-over frequency control for the low pass
10. To car stereo speaker front R CH +
11. To car stereo speaker front L CH +
12. To car stereo GND
13. To car stereo speaker front L CH –
14. To car stereo speaker front R CH -
Important Installation Information
•
This appliance may only be connected to a 12 volt system with negative ground.
•
Because of high power unit, using the unit while the engine is stopped may totally discharge the
battery, please run the engine in using the unit.
•
The heat radiated when the amplifier is used means that sufficient air circulation is requered at the
place of installation. It is very important that the cooler`s cooler ribs do not contact any metal plating or
any surfaces which could impair air circulation.
•
The amplifier may not be installed in small confined spaces or spaces without air circulation. Installation
in the boot is recommended.
•
Install the amplifier in such a way that it is protected as far as possible against vibrations and dust and
dirt.
•
Make sure that the input/output cables are sufficiently distant from the power supply cables as
otherwise interference may occur.
•
Make sure that the fuse and operating elements are accesible after installation.
•
The appliances reliability and performance depend on the quality of installation. Preferably get an expert
to install the system, particularly if you want to install several loudspeakers or a complex multi-way
system.
