Figure Stereo Mode
Connect and set the amplifier as chown in these Fig. If it is to be controlled with two
Output channels and to use two loudspeakers. The high-pass filter must also be activated
If the amplifier is also used for satellite loudspeakers.
1. To the car radio, left output
2. To the car radio, right output
3. Loudspeaker right
4. Loudspeaker left

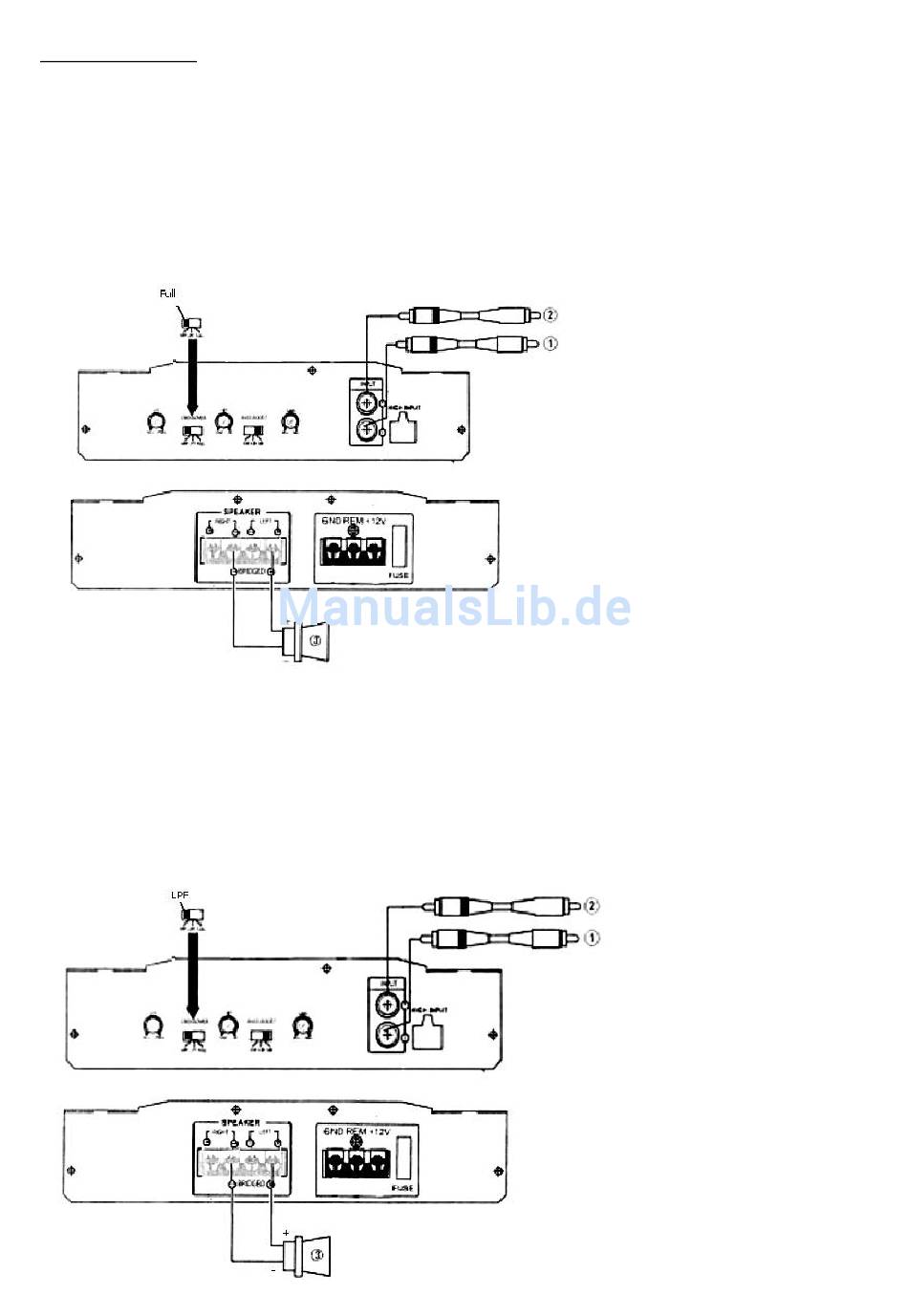

Figure Bridge Mode With Stereo Car Radio
If the amplifier has to generate mor power to operate a subwoofer, connect and set
It as shown in these Fig.
1. to the car radio, left output
2. to the car radio, right output
3. Subwoofer
© Firma WJG, Braunschweig. Nachdruck oder Vervielfältigung nur mit ausdrücklicher Genehmigung
751-120
