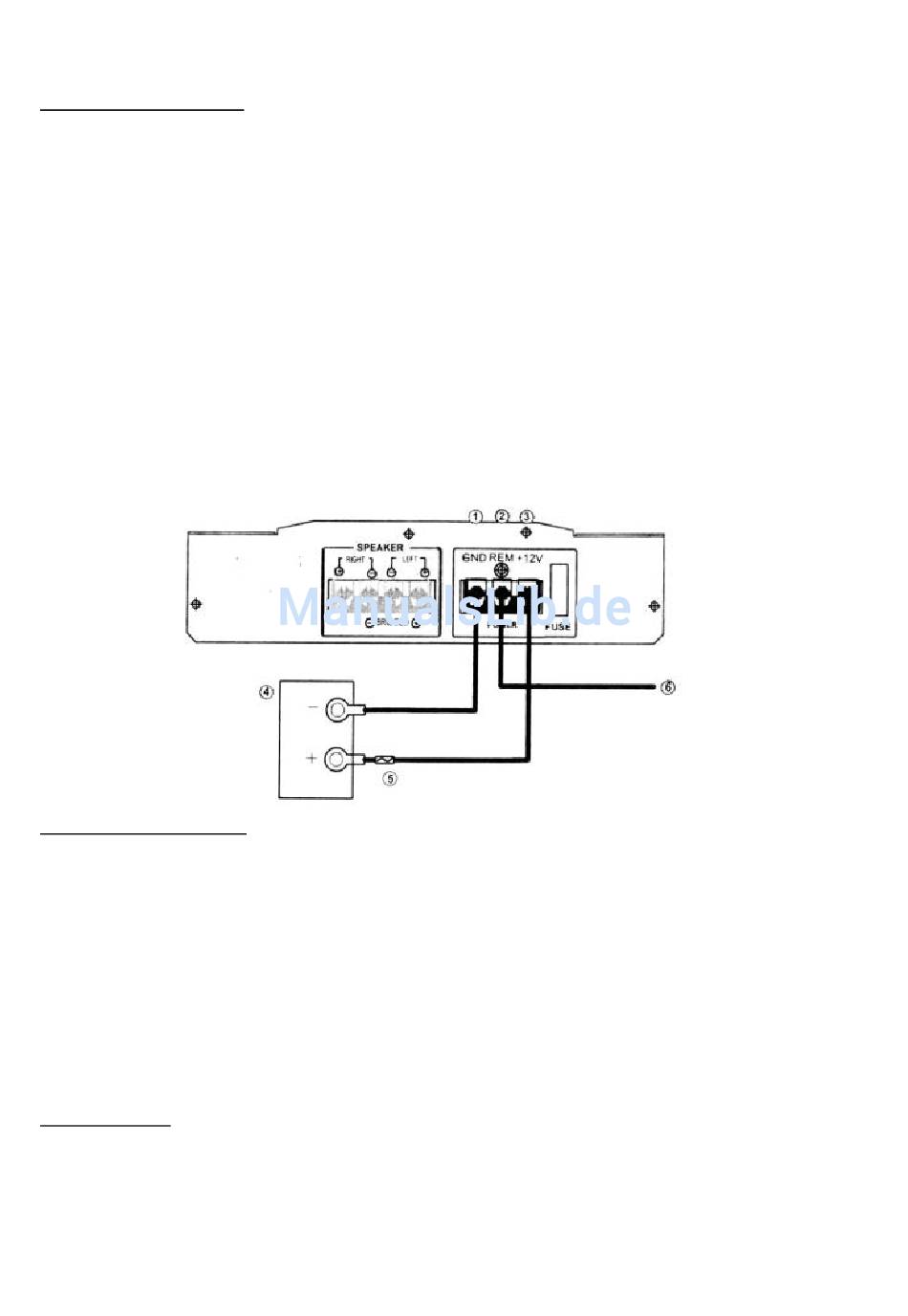

Connection Power Supply
Important Notice!
Before commencing the installation, disconnect the plus terminals from the car
Battery in order to prevent short circuits.
•
The power cabling usually installed in on –board car networks is not sufficient for a power amplifier`s
demands. Make sure that the power lines to GND and to the +12 V terminal have been suffciciently
specivied. A cable cross-section of 6mm² must be used to connect the battery to the amplifier`s
terminals.
•
First connect the amplifier´s GND terminal to the battery´s minus pole. It is very important that the
connection point. A loose connection may cause malfunctions or interference noise or distortion.
•
The +12 V amplifier connection must then be connected with a power cable possessing an integrated
fuse to the battery´s plus pole. The fuse should be located close to the battery.
Only insert the fuse when all installation work, including the connection of the loudspeakers, has been
completed.
•
Now connect the car Hi-fi receivers remote control connection to the amplifiers REM control jack. A
cable with a cross-section of 0,75mm² is sufficient for connecting the amplifiers REMOTE Connection
and control device.
Loudspeaker Connections
•
In normal operating mode (i.e, one loudspeaker on each individual amplifier channel), the lowest
terminal resistance is 2 ohm per channel.
•
In bridging mode (two amplifier outputs combined) the lowest terminal resistance doubles to 4 ohm.
•
The impedance in tri-mode may not fall below 2 ohm per channel.
•
Never connect the loudspeakers minus terminals to the vehicle chassis.
•
Never connect the +12 V supply voltage to a loudspeaker output as this would destroy the amplifier
final stage.
•
If the amplifier is operated with lower terminal resistances or incorrectly use as described above, both
the amplifier an the loudspeakers may be damaged. The warranty becomes void in such cases.
High Level Input
This unit can be connected to any car stereo with high level outputs, Common or separated
Ground outputs.
Note: Do not connect these high level input wires if you are using the low level input RCA jacks.
Otherwise it result in damage to the amplifier and other units in the set up.
© Firma WJG, Braunschweig. Nachdruck oder Vervielfältigung nur mit ausdrücklicher Genehmigung
751-120
