Operating instructions
mSATA Dual hard drive housing USB-C™
USB 3.1
Item no. 1498532
Intended use
The product may be used to mount two mSATA SSDs. It can be connected to a
computer via USB. Power is supplied via USB as well.
The mounted SSDs may be used in various operating modes (RAID0, RAID1, PM).
It is intended for indoor use only. Do not use it outdoors. Contact with moisture, e.g.
in bathrooms, must be avoided under all circumstances.
For safety and approval purposes, you must not rebuild and/or modify this product. If
you use the product for purposes other than those described above, the product may
be damaged. In addition, improper use can cause hazards such as short circuiting,
fire etc. Read the instructions carefully and keep them. Make this product available
to third parties only together with its operating instructions.
This product complies with the statutory national and European requirements. All
company names and product names are trademarks of their respective owners. All
rights reserved.
Delivery content
• mSATA Dual hard drive housing
• USB type C to USB type C cable (length 50 cm)
• USB DC power cable (length 50 cm)
• Screwdriver
• Operating instructions
Up-to-date operating instructions
Download the latest operating instructions from our website www.conrad.com/
downloads or scan the printed QR code. Follow the instructions on the website.
Description of symbols
The symbol with an exclamation mark in a triangle indicates important
instructions contained in these operating instructions that must be followed.
The arrow symbol alerts the user to the presence of important tips and
notes on using the device.
Safety instructions
Read the operating instructions carefully and especially observe the
safety information. If you do not follow the safety instructions and
information on proper handling in this manual, we assume no liability
for any resulting personal injury or damage to property. Such cases
will invalidate the warranty/guarantee.
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. These may
become dangerous playing material for children.
• Protect the product from extreme temperatures, direct sunlight, strong
jolts, high humidity, moisture, flammable gases, vapours and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of
operation and protect it from any accidental use. Safe operation can no
longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a
low height can damage the product.
• Also observe the safety and operating instructions of any other devices
which are connected to the product.
• Electrostatic charges may damage electronic components. Do not touch
electronic components with your bare hands.
• When setting up the product, make sure that the cables are not pinched,
kinked or damaged by sharp edges.
• Never use the product immediately after it has been brought from a cold
room into a warm one. The condensation generated could destroy the
product. Allow the device to reach room temperature before connecting
and using it. This may take several hours.
• Consult an expert when in doubt about operation, safety or connection
of the device.
• Maintenance, modifications and repairs are to be performed exclusively
by an expert or at a qualified shop.
• If you have questions which remain unanswered by these operating
instructions, contact our technical support service or other technical
personnel.
Mounting SSDs
Secure any data already saved on the SSDs before mounting your
equipment.
Use SSDs of identical construction for RAID0 and RAID1 modes.
SSDs of different construction may be used for use in PM mode.
• Loosen the 4 screws on the bottom and remove the cover panel.
• Carefully remove the board.

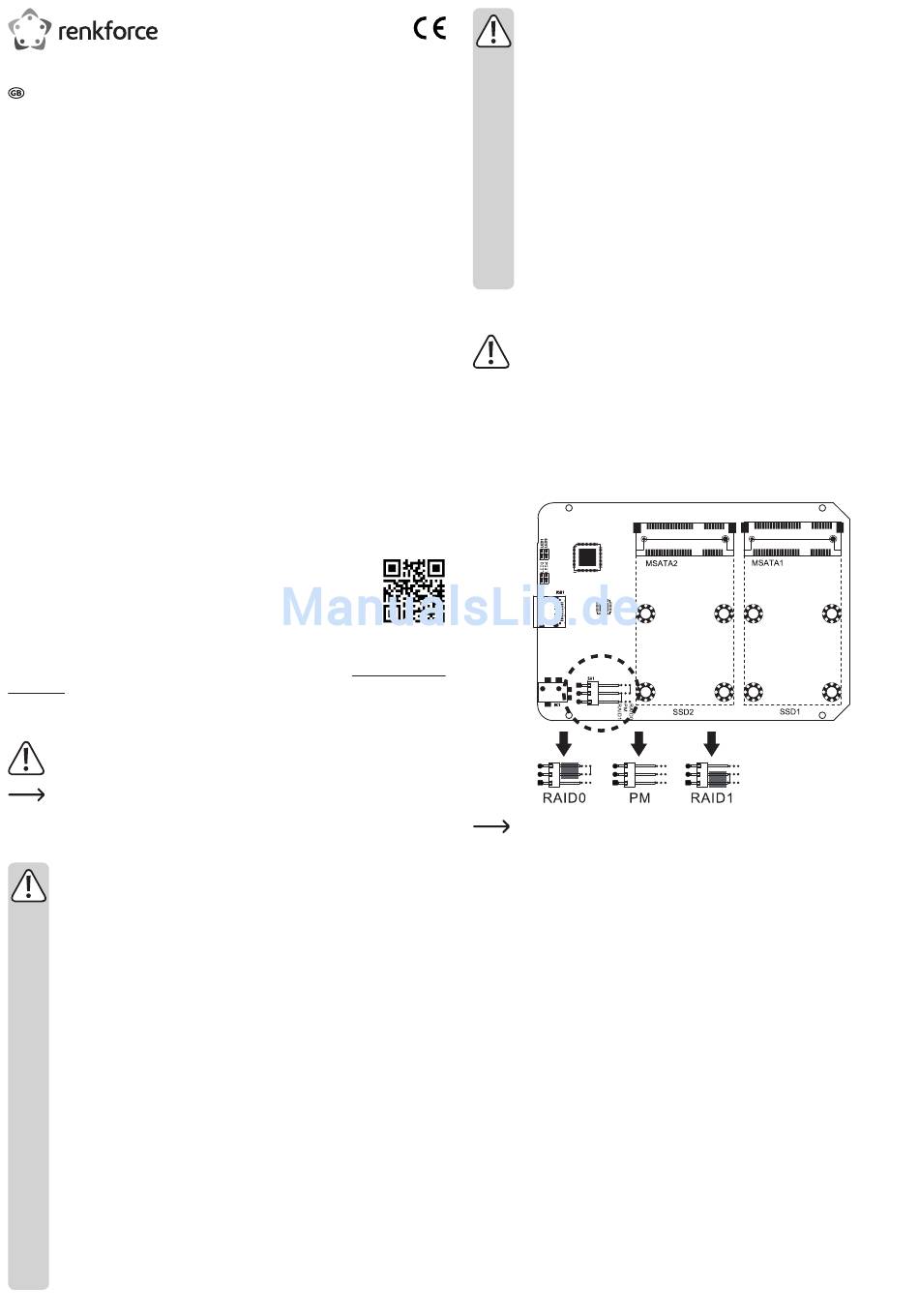

• Use the jumper to configure the operating mode: RAID0, RAID1, PM.
Remove the jumper for use in PM mode.
• Loosen the screws and nuts affixed near the SSD slots.
• Connect one SSD to the corresponding terminal strip. Do not use any force.
• Fasten the SSD using the screws and nuts in the appropriate screwholes.
• Carefully insert the board into the housing. The SSDs must face down.
• Replace and fasten the cover panel using the 4 previously loosened screws.
